1. Features:
1) Quratz glass tube ,corona discharge technology.
2) Unique air-cooled or water cool technology.
3) The shell is made of 304 stainless steel, atmospheric and beautiful, durable.
4) High conversion efficiency, low energy consumption, long service life.
5) Compatible with air or external oxygen source.
6) Air compressor integrated,Adjustable ozone ouptut.
7) CE certificate.
8) High output pressure, digital timer; LCD screen , remote control.
2. Techinical Specification:
| Item | Unit | FGP-5G | FGP-7G | FGP-10G | FGP-15G | FGP-20G | FGP-30G |
| Input voltage | V/Hz | 110-240/50-60 | |||||
| Power | W | ≤80 | ≤120 | ≤140 | ≤200 | ≤270 | ≤300 |
| Ozone density | Mg/L | 15-25 | |||||
| Ozone output | G/Hr | 5 | 5 | 10 | 15 | 20 | 30 |
| Size | MM | 230*180*465 | 320*250*525 | 400*300*625 | 400*300*700 | ||
| Ozone flow | LPM | 16 | 20 | 40 | 50 | 50 | 60 |
| NW | Kg | 5.5 | 9.6 | 10.5 | 16 | 17.5 | 21 |
| Sheff Material | / | High Grade Staninless Steel | |||||
| Item | Unit | FGP-40G | FGP-50G | FGP-60G | FGP-80G | FGP-100G | FGP-200G |
| Input voltage | V/Hz | 110-240/50-60 | |||||
| Power | W | ≤480 | ≤530 | ≤680 | ≤1020 | ≤1140 | ≤2300 |
| Ozone density | Mg/L | 15-25 | |||||
| Ozone output | G/Hr | 40 | 50 | 60 | 80 | 100 | 200 |
| Size | MM | 550*400*850 | 550*400*1000 | 550*400*1130 | 550*400*1330 | ||
| Ozone flow | LPM | Inner clean drky air or external pure oxygen | |||||
| NW | Kg | 34 | 35 | 63 | 67 | 85 | 95 |
| Sheff Material | / | High Grade Staninless Steel | |||||
| Item | Unit | FGP-20G | FGP-40G | FGP-50G |
| Ozone output | G/Hr | 40 | 50 | 60 |
| Power | W | ≤480 | ≤530 | ≤680 |
| Voltage | V/Hz | AC220/110V,50/60HZ | ||
| Concentration | ppm | 45 | 70 | 125 |
| Generating material | / | Ceramic plate | ||
| Dimension(L*W*H) | MM |
400*300*650 |
||
| Unit weight | Kg | 15.5 | 16.5 | 17.7 |
| External case | / | Stainless steel 304 | ||
| Treat air flow | CMH | Up to 7,000 | Up to 10,000 | Up to 15,000 |
3. Applications:
1) Medical treatment industry: disinfect sickroom, operating room, medical treatment equipment,
aseptic room, etc.
2) Fruits and vegetables:keep fruits and vegetables fresh and store them.
3) Sea food factory: Remove smell of sea food factory and kill bacteria ,disinfect production water supply.
4) Slaughtering: Remove smell of slaughtering and kill bacteria,disinfect production water supply.
5) Poultry factory: Remove smell of poultry factory and kill bacteria ,disinfect water for poultry feeding.
6) Commercial use in House,hotel,Office,KTV,Super Market,Fruit shop etc.Air Purifier:Remove formaldehyde,benzene compounds,Smoke,Odors,Molds,Bactria,Virus to fresh air.Water purifier:Disinfect production Water supply.
4. Product presentation:
The air treatment ozone generator is used to effectively sterilize air, remove bad odors, etc. It has wide applications in the fields of commercial kitchens, poultry farms, pig farms, food processing workshop, cosmetic disinfection, mushroom cultivation and other air treatments. It has been largely exported to Europe, US, Australia, Southeast Asia markets, etc. and many Mcdonald's and Kentucky Fried Chicken use this ozone generator for kitchen exhaust duct to eliminate odour and grease generated in cooking process.

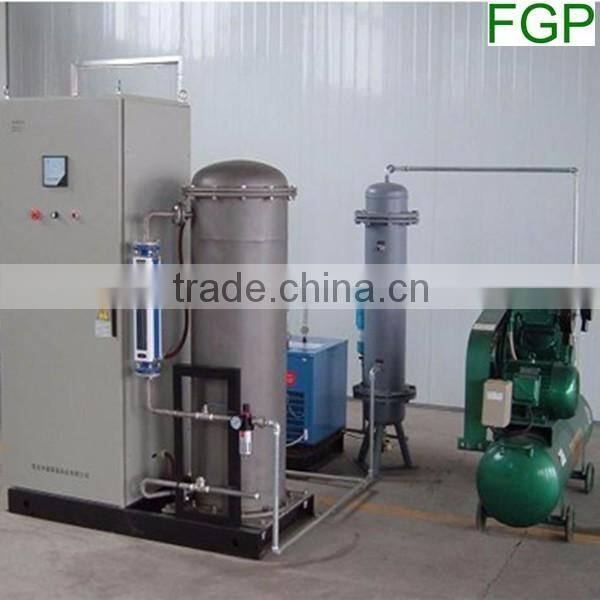

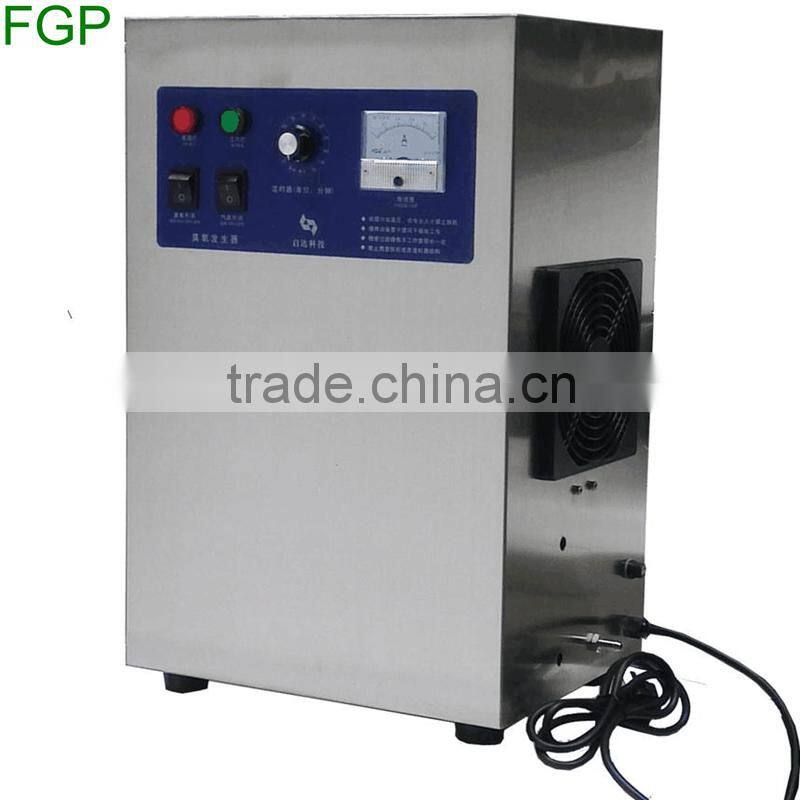

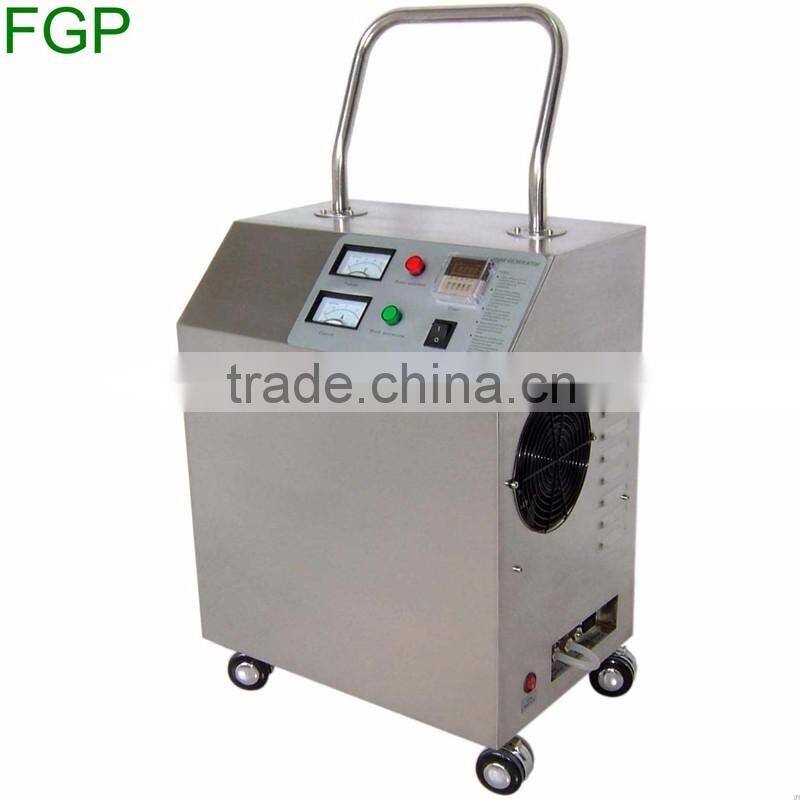

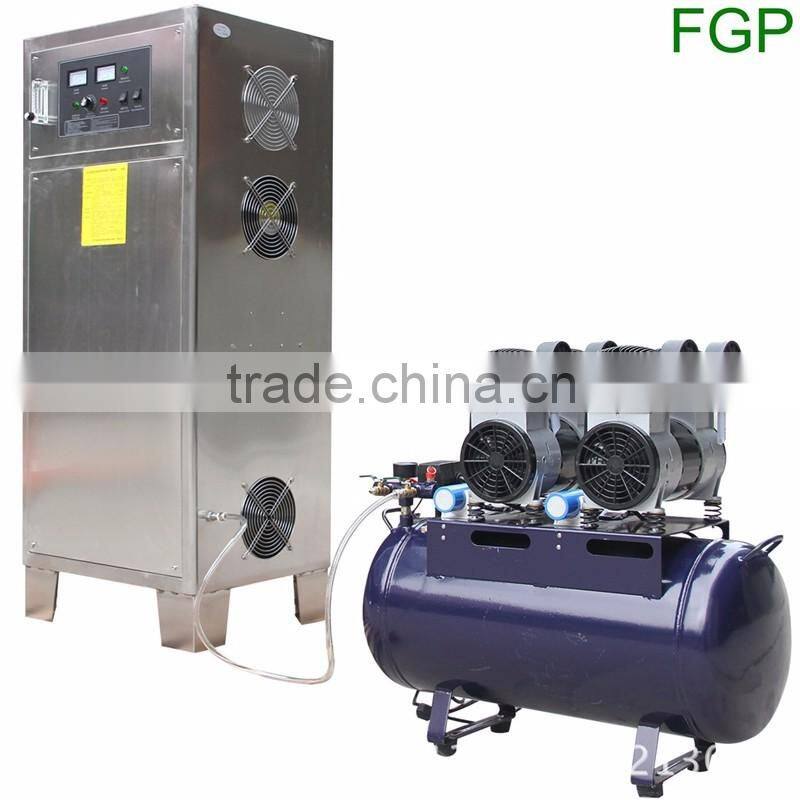

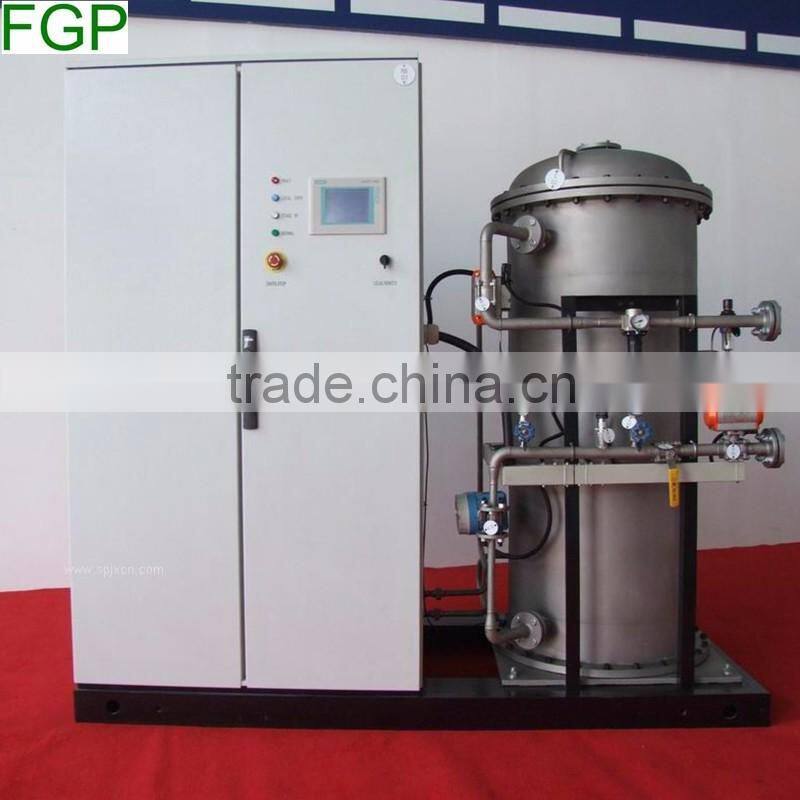

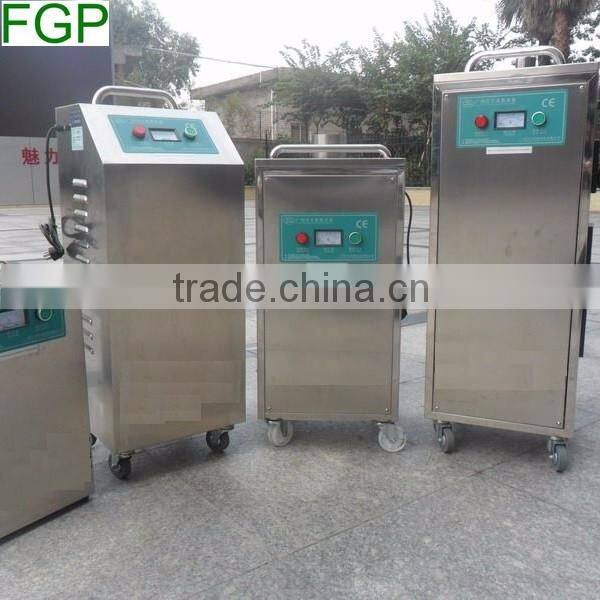

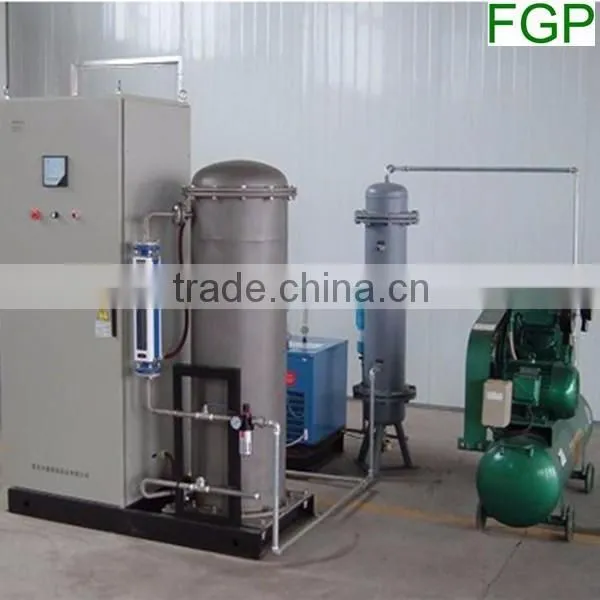

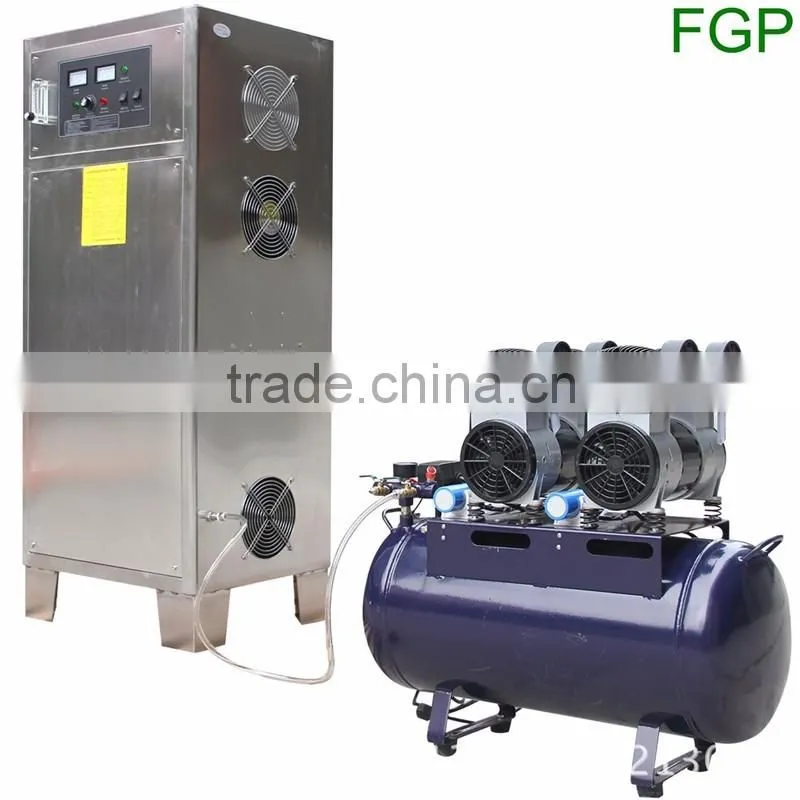

5. Samples machine pictures (only for your reference):
