CE Certification Automatic Cartoning Machine,boxing Machine for Bottle
US$ 25,000 - 45,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Chemical, Commodity, Food, Other, Medical, Apparel, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type:
Cartons, Case
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou or Shenzhen port or other ports in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cartoning Machine/universal Boxing Machine /boxing Packing MachineUS$ 25,000 - 45,000MOQ: 1 Set -
High Quality Carton Paper Recycling Machine, Paper Core Pipe Making MachineUS$ 25,000 - 45,000MOQ: 1 Set
-
High Quality Automatic Carton Machine, Hot Sale High Speed China Boxes Carton MachineUS$ 25,000 - 45,000MOQ: 1 Set
-
Automatic Cartoning Machine, Carton Box Packing MachineUS$ 25,000 - 45,000MOQ: 1 Set
-
Fully Automatic Carton Box Packaging Machine(Cartoning Machine)US$ 25,000 - 45,000MOQ: 1 Set
Condition
New
Application
Apparel, Chemical, Commodity, Food, Other, Medical, Apparel, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type
Cartons, Case
Packaging Material
Wood
Automatic Grade
Automatic
Driven Type
Electric
Voltage
200V/50HZ
Power
1.5kw
Place of Origin
Guangdong, China
Brand Name
Fillgreen
Model Number
FG-ZHJ
Dimension(L*W*H)
2700*1140*1800mm
Weight
1200kg
Certification
CE ISO
After-sales Service Provided
Engineers available to service machinery overseas
1. Instruction:
Bottle cartoner is high technology product incorporates of pneumatic-photo-electro-mechanic. It is suitable for cardboard case packaging of medicine bottles (round, square),cosmetic ,food into carton in a range. The machine finished running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes 1to 4folds leaflet automatic folding, cantons in suction and open, products and leaflet put into, printing batch number, sealing or option hot-glue device. The machine can be single used or linked with Filling Machine, Blister Packing Machine, Shrink Machine, Three Dimensional Packaging Machine, etc to form a production China
2. Feature:
1) International famous brand of electrical component such as PLC touch screen, frequency inverters, etc
2) Adopt human-machine operation system.
3) Automatically displaying device for trouble, speed and finished products counting.
4) Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.
5) No products not suction leaflet, no leaflet not suction carton .
6) Automatic detection and rejection device for lacking blister goods and leaflets
7) Protecting automatically for overloading.
8) stable performance , operation is easy.
3. Technical Parameters:
Encasing speed |
30-120 boxes/min |
|
Box |
Quality requirement |
300-350g/m2 |
Dimension rangeL×W×H |
(65-120)mm×(30-60)mm×(30-60)mm |
|
Quality requirement |
60-70g/m2 |
|
Leaflet |
Unfolded leaflet specificationL×W |
(80-250)mm×(90-170)mm |
Folded leaflet specification1-4 |
(90-170)mm×(25-40)mm |
|
Compressed air |
Working pressure |
≥0.6Mpa |
Air consumption |
120-160L/min |
|
Power |
220V/50Hz |
|
Motor power |
0.75kw |
|
Machine dimension(L×W×H) |
2700mm×1160mm×1800mm |
|
Machine weight |
1200kg
|
|

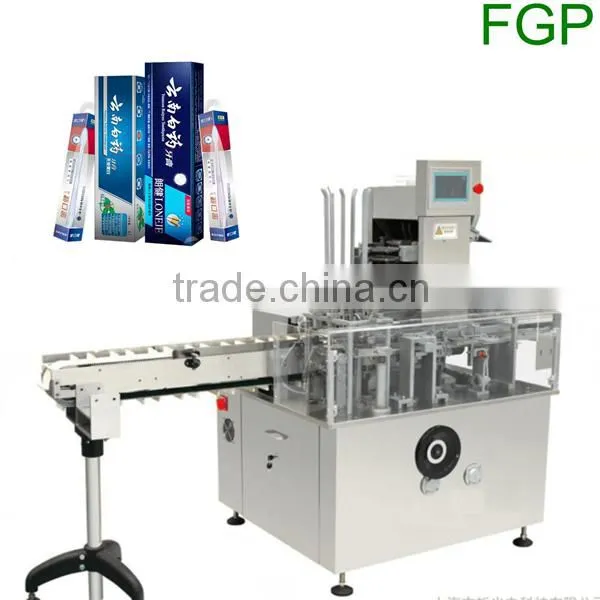

4. Samples machine pictures (only for your reference):
