1.Company Profile
Toppo Machinery Co., Ltd. is professional on producing Roll Forming Machinery to Make Roof Ridge Cap for 15 years. We provide an extensive line of products, which includes roof and wall panel machine, tile roof machine, purline forming machine, floor decking machine and other associated equipments.
Engineers keep improving quality of the Roll Forming Machinery to Make Roof Ridge Cap
what makes us better than others?
1. Professional |
15 years' rich experience! a.Specialized in Roll Forming Machinery to Make Roof Ridge Cap since 1998; b.Keeping improving the quality. |
2. Low price |
Save your money from every part! a. Low labor cost; b. Convenient transportation; c. Complete supporting industries. |
3. PLC |
Ensuring high accuracy and easy to operate! Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order. |
4. OEM / ODM |
Customers’design, color & logo are also accepted! Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality. |
5. TWO-Years warranty, whole life service |
Keep troubles far away from you! Within the TWO-YEARS period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems . |
2.Brief Introduction

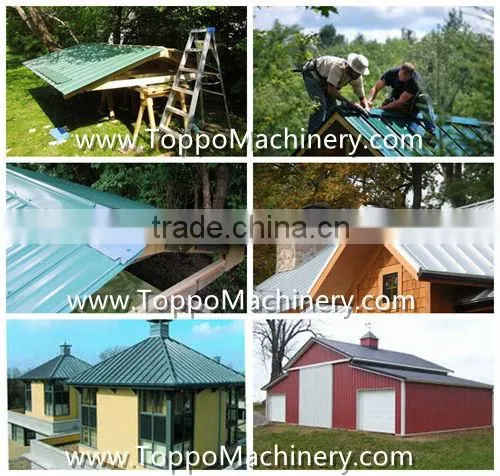

The ridge caps made by our Roll Forming Machinery to Make Roof Ridge Cap are beautiful and bright. They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas.

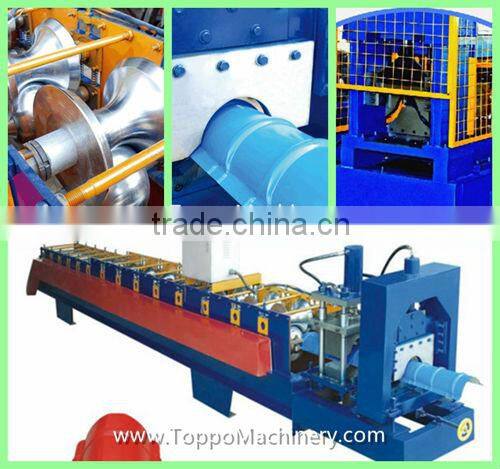

3.Working Flow for Roll Forming Machinery to Make Roof Ridge Cap
Sheet decoiling-Sheet guiding-Sheet roll forming-Sheet length measuring-Hydraulic sheet pressing-Sheet cutting-Sheet supporting
4.Technical Details
|
a. General
| |
Model Number |
312 Roll Forming Machinery to Make Roof Ridge Cap |
Suitable Material |
Q235 or equivalent, Colored Steel plate or galvanized board |
Material Width |
500 mm |
Material Thickness |
0.3-0.6 mm |
Dimension |
about 7.5*0.65*1.0m(L*W*H) |
| Working Space | about 17.5*2.0m(L*W) |
Length of the Sheet |
You can set the length according to your need. It is controlled by PLC which can ensure the accuracy of ±1mm. |
Cutting |
Automatically stop and cutting when it comes to the set length. |
|
b. Components Details
| |
Roller Material |
High grade 45# steel. Hard chrome plating 0.05mm. |
Diameter of the Shafts |
Φ65mm, high grade 45# steel. Treating process: tempering- finish turning, high rigidity, hard to deform. |
Main Frame |
400# steel.More stable and no shaking. |
Middle Plate |
16mm. We use thicker plates to ensure stability. |
Forming Steps |
14 |
Cutting Blade Material |
Cr12, hardness HRC60-62. |
Active Shaft Material |
45# steel |
|
c. Electric Components
| |
Suitable Power |
380V, 50 Hz, 3 phase or according to your need. |
Hydraulic Station Power |
3kw |
Screen |
5.7 inch touch screen, easy to operate |
PLC |
Delta DVP14ES, well-adapted to various conditions, such as moisture, electromagnetic disturbance. |
Frequency Converter |
Delta VFD-M. It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
Length Measurement Device |
Omron, made in Japan. It features with high accuracy and stability |
5. Loading into container for Roll Forming Machinery to Make Roof Ridge Cap
a.Need one 40ft container.
b.Main body of machine fixed to container by 8mm diameter steel wire, rollers and shaft is covered with anti-rust oil.
c.Spare parts in carton box.
6. Sales Map
Started from 1998, Toppo Machinery Co., Ltd has exported high quality Roll Forming Machineries to Make Roof Ridge Cap to more than 20 countries, including: South Africa, Tanzania, Australia, India, Indonesia, Iran, Macedonia, Ghana, Trinidad and Tobago, Sri Lanka, Sudan, Guyana, America, Abidjan, Kazakhstan, Nigeria, Bolivia, Bengal, Chile, Armenia, the UK, GHANA...
7.Our Services
a. TWO-Years product warranty.
b. Training and installation available
c. The technical support for the whole life
8. FAQ
1.How to get a accurate quotation from us?
a. Material width and thickness. b. drawing of profile.
As for the drawing, you can provide by yourself, or choose from our standard profiles.
2.How to repair& maintain our machine?
a.Normally,the machine can work without problem for at least 5 years.
b.If you have problem, do not change the machine by yourself. Tell us the problem, and we help you to solve it step by step.
3.What policy for broken parts?
Within the TWO-YEARS period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems .after two years,you need to buy by factory cost.
...
