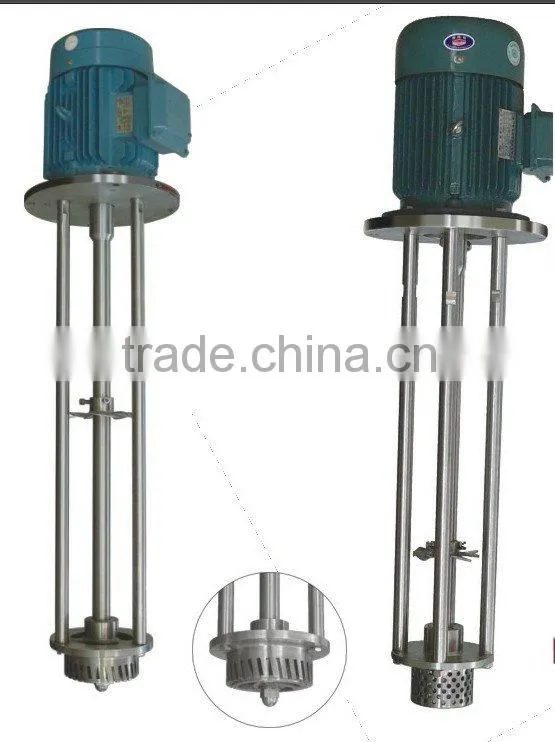

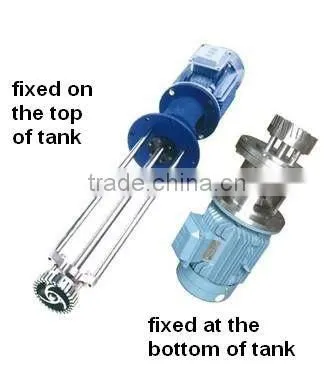

Movable High Shear Emulsifier,used Batch Emulsifier,high Shear,high Speed Shear Mixer

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Product Type:

Shampoo

Place of Origin:

Guangdong, China

Brand Name:

Guangzhou Lianhe Automatic Technology Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Type Shampoo

Place of Origin Guangdong, China

Brand Name LH

Model Number LH600-1.5

Specifications

high shear emulsifier
1.Function: mix, emulsify, homogenize
2.used for cream ,cosmatic
3.granule diameter reach 1-2um

batch emulsifier, high shear mixer, high shear emulsifier

Operation Principle:

Batch high shear emulsifier effectively,quickly and evenly disperse a phase or phases to another consecutive phase,usually,these phases are dissolvable to each other.
The rotor revolves quickly and strong force is produced through high tangent speed and high frequency mechanical effect,therefore,the material in the narrow slotamong stator and rotor receives strong forces from mechanical and liquid shearing,centrifugal force,pressing,liquid fraction,clashing,tearing and rush water.
The dissolvable solid,liquid and gas material is then instantly dispersed and emulsified evenly and finely with better production procedures and appropriate addictives and finally products with stable high quality are made

How to work

The rotor revolves in high speed produces centrifugal force,which suctions the material from upper and lower feeding area axially to the operation chamber.
The strong centrifugal force throws the material axially to the narrow slot between stator and rotor.The material then receives centrifugal press,clash and other forces,which firstly disperse and emulsify the material.
The outer terminal of the rotor revolved in high speed produces a line speed more than 15ms and even up to 40ms,which produces strong mechanical and liquid shearing,liquid abrasion,clashing and tearing which fully disperse,emulsify,homogen,and break the material and jet from the stator slot.
As materials jet in radial in high speed , they change their flow direction with resistance from themselves and vessel walls.The upperand lower axial suction force then leads to strong upper and lower rushing flows.After many circulations,the material is finally disper sed and emulsified evenly.

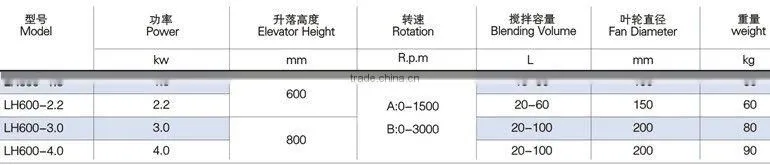

Technical Parameter
