LH-620G Single Side Labeling Machine

Name: LH-620G Single Side Labeling Machine
Brand: Lianhe
SKU: 126115085
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Packaging Type:

Bottles

Automatic Grade:

Automatic

Guangzhou Lianhe Automatic Technology Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Packaging Type Bottles

Automatic Grade Automatic

Place of Origin China

Brand Name Lianhe

Model Number LH-620G

Specifications

Single Side Labeling Machine
1.application to square bottles or flat bottles
ntrolled by PLC
3.lebeling speed:40m/min

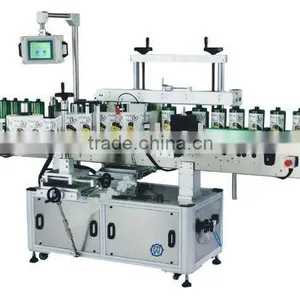

LH-620G Single Side Labeling Machine

Be applicable to square bottles or flat bottles in single side mark
The independently shape structure is designed specially and independently to label irregular bottles in cosmetic industry.The optional air driving and roller labeling set can label roundbottles precisely.
The shape belt can be inclined,and the labeling head can be adjusted at eight or orientations,so the machine can be adjusted successfully in several minutes for any bottle.
The machine apply the famous server motor,so it realizes real closed loop controlling and it avoids the phenomenon of the ordinary stepper mortor,high-precision refinement,biult-in absoute encoder,all this is designed to improve the accuracy.
The shape structure is designed specially,so labeled thing is able to be located and labeled precisely.
The label is pressed by a flap after applying on bottle and is pressed by the active and passive sponge rolles.So when the label is stuck it hasn't any air bladder.It is especially applicable to the crystal bottles labeled with transparent labels.

technical parameters

labeling speed: 40m/min(80-200B/min)

labeling accuracy : ±1mm

label max width: 200mm

bottle diameter : thickness≤30mm height≤500mm

label inner diameter : Φ76.2mm

label outer diameter : Φ350mm

outline size : 3048*1200*1500mm

weight: 280kg

using power : 380/220v50Hz 2300w
