Two nozzles semi automatic liquid filling machine/oil filling machine
I. Introduction for Two nozzles oil filling machine
The microcomputer-controlled semi-automatic filling machine is equipped with imported microcomputer-controlled chips which can control the filling time and filling flow precisely. Besides, it uses internationally famous frequency conversion speed controller and imported magnetic gear stainless pump (316L) as key components; therefore it is of high quality and wearable. It is widely used in the industries such as pharmacy, food, cosmetic, daily chemical, domestic chemical, agricultural chemical and so on. It is able to fill almost all kinds of liquid such as: various medicaments, chemicals, beverage, cosmetic, food and other kinds of granule-free liquid.
II. Functional Features
1. Equipped with microcomputer-controlled chips, it features in precise control and easy operation.
2. Digital display, precise and free from parallax.

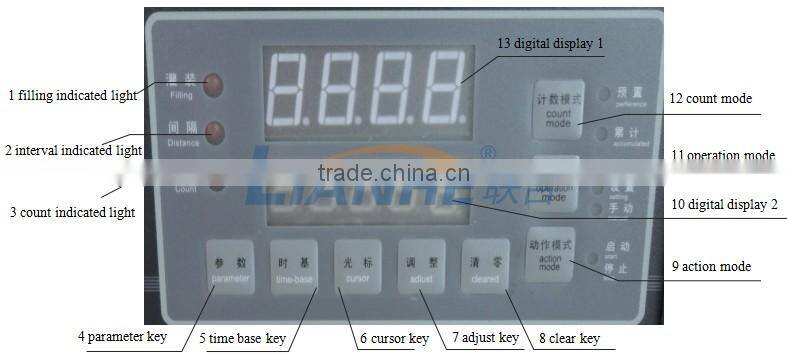

3. Touch panels, comfortable hand touch and good sensitivity.
4. Data saving function in the chips.
5. Large filling range. For small pump machine, it is adjustable from 1ml to10, 000ml; for large pump machine, from 10ml to 80,000 ml
6. The whole shell is made of stainless steel.
III.Technical Parameter
Model | Rated Voltage | Power | Max. Flow | Tolerance | Machine Size(mm) | Net Weight | Packing Size(mm) |
LH-I-A | 220V 50/60Hz | 38W | Single pump >1.4L/M | ±1% | 400*300*250 | 11Kg | 480*380*335 |
LH-II-A | 220V 50/60Hz | (38*2)W | Double pump >1.4L/M*2 | ±1% | 500*300*250 | 16kg | 580*380*335 |
LH-IIII-A | 220V 50/60Hz | (38*4)W | Four pump >1.4L/M*4 | ±1% | 615*300*250 | 26kg | 645*420*350 |
LH-I-B | 220V 50/60Hz | 400W | Single pump >10L/M | ±1% | 400*360*270 | 18kg | 480*380*335 |
LH-II-B | 220V 50/60Hz | (400*2)W | Double pump >10L/M*2 | ±1% | 580*360*270 | 28kg | 645*420*350 |

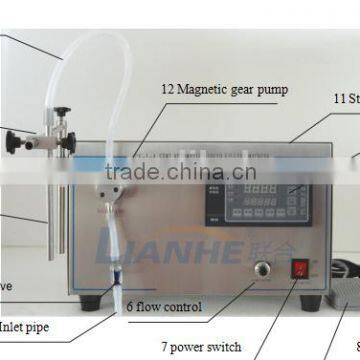

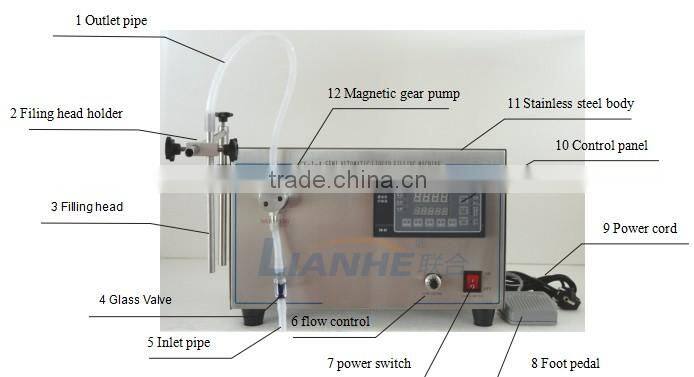

liquid filling machine with one nozzles

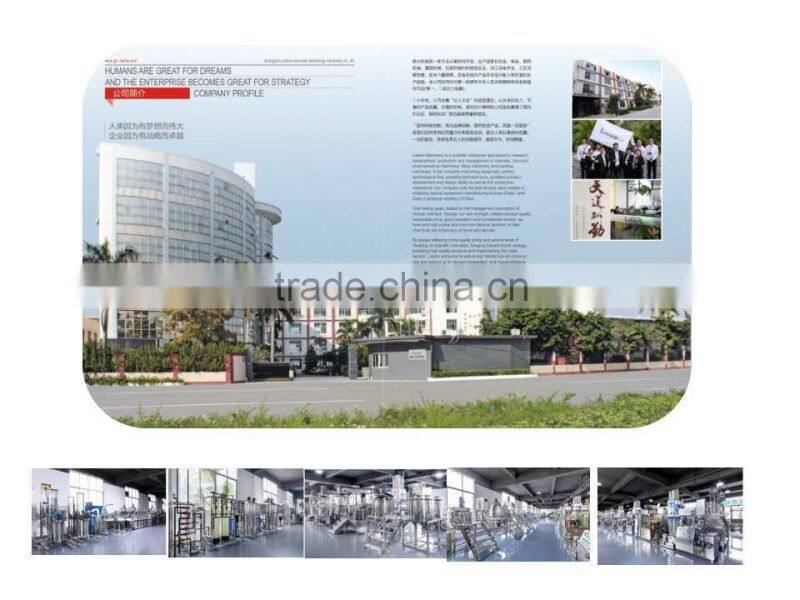

♦ LIANHE cosmetics machinery establish since 1992 and has more than 20 years experiences.
♦ LIANHE cosmetics machinery is a scientific enterprise specialized in research , development, production and management of cosmetic, food and pharmaceutic machine, such as water treatment, emulsifier, homogenizer, filling machine and packing machinery and all of cosmetic production lines
♦ LIANHE cosmetics machinery have complete machine equipment, perfect technological flow, powerful technical force, excellent products development and design ability as well as rich production experiences.
♦ LIANHE cosmetics machinery material, imported from Japan, Germany etc. We have passed ISO9001,CE, GMP.
