LED PCB LIGHT ENGINE LIGHTING MODULE series

Name: LED PCB LIGHT ENGINE LIGHTING MODULE series
Brand: KANJIN
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 10 Piece / Pieces per Month
Port Taiwna
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Taiwan

Brand Name:

KANJIN

Model Number:

KTHS-HC10W-DM1

Product Description

Specifications

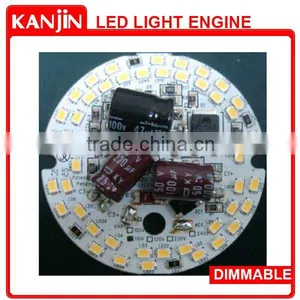

LED PCB LIGHT ENGINE LIGHTING MODULE series
1. LED bulb / downlight use
2. Easy for assemble
3. Made in Taiwan
4. DC-Core

LED PCB LIGHT ENGINE LIGHTING MODULE series

Wattage : 10W / 12W

Color Temp. : 3000K / 5000K

Scope

The DC CORE Light Engines are applied directly for AC power source. They do not need the switching type driver to make circuit is simple and reduce the natural resources for mass production.
Low ripple current for lighting quality is good for eyes.
Dimming able for TRAIC.
Long life is easy applied because components are surface mounting on MCPCB which is assembly with
light fixture.
High quality for electronic characteristics can save power energy.

Feature

All products including samples delivered will meet all the requirements as outlined in the document. The
basic requirements of the design features are listed below:
(1) Connects directly with AC power source
(2) Low ripple current to make low flick or no flick
(3) Dimming able for TRAIC
(4) Low conduction and radiation (EMI)
(5) ROHS compliant

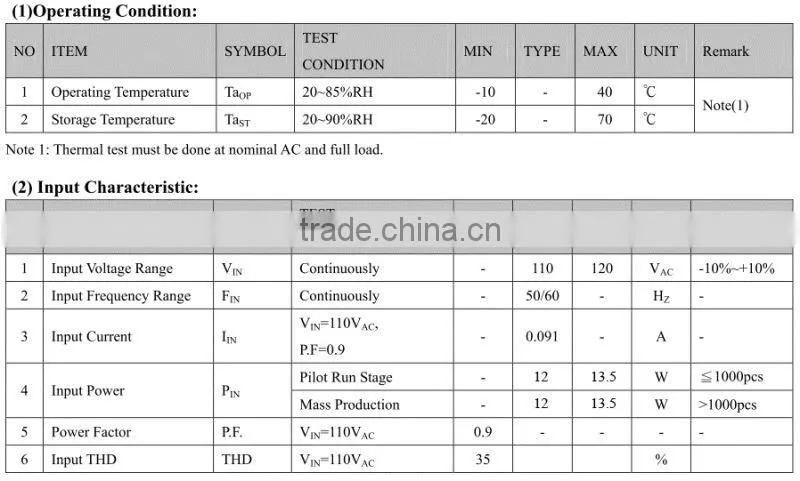

Electrical Characteristics

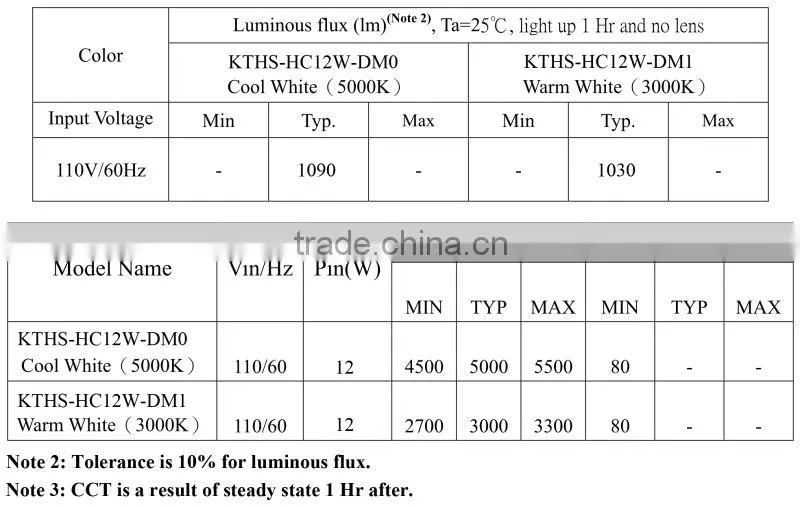

Optical Characteristics

-----------------------------------------------------------------------------------------------------------------------------------------------
