LED LIGHT ENGINE Series

LED LIGHT ENGINE Series photo-1
Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
KTHS-HC10W-DM1
Chip Material:
Other, optional
Emitting Color:
Warm White
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Model Number KTHS-HC10W-DM1
Chip Material Other, optional
Emitting Color Warm White
Luminous Flux(lm) 840
Power 10W
Power Dissipation -10%~+10%
Color Rendering Index(Ra) 80
Color Temperature 3000K
Operating Temperature(℃) -10, 40
Storage Temperature(℃) -20, 70
Place of Origin Taiwan, China
Brand Name KANJIN
Certification CE

Specifications

* Connects directly with AC power source and low flick or no flick
* Dimmable for TRAIC
* Low conduction and radiation EMI

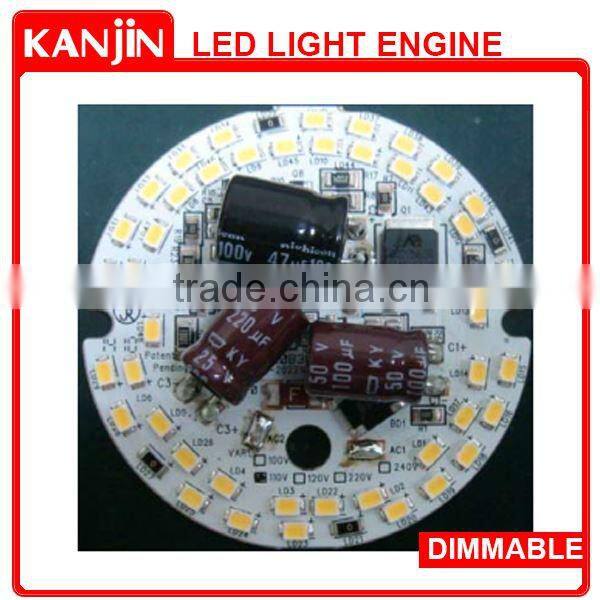

LED LIGHT ENGINE series

Wattage : 10W / 12W

Color Temp. : 3000K / 5000K

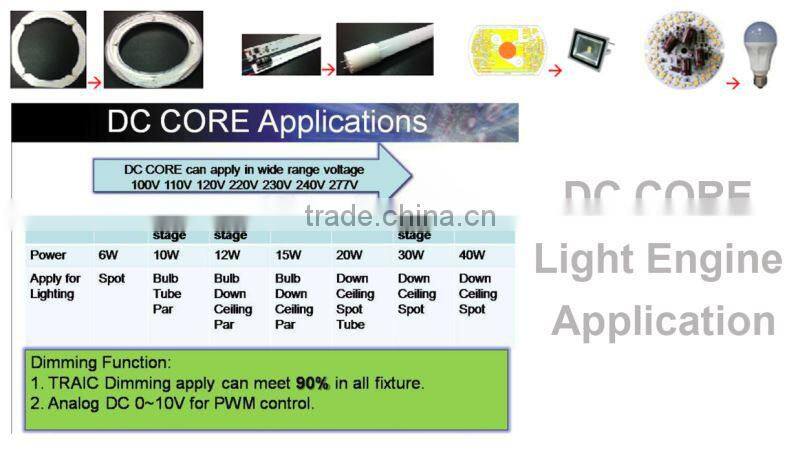

 Scope

  1. The DC CORE Light Engines are applied directly for AC power source. They do not need the switching type driver to make circuit is simple and reduce the natural resources for mass production.
  2. Low ripple current for lighting quality is good for eyes.
  3. Dimming able for TRAIC.
  4. Long life is easy applied because components are surface mounting on MCPCB which is assembly with
    light fixture.
  5. High quality for electronic characteristics can save power energy.

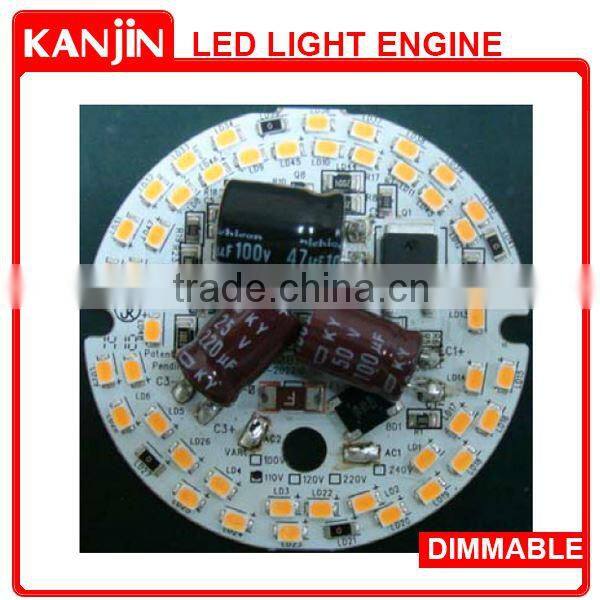

LED LIGHT ENGINE seriesLED LIGHT ENGINE series

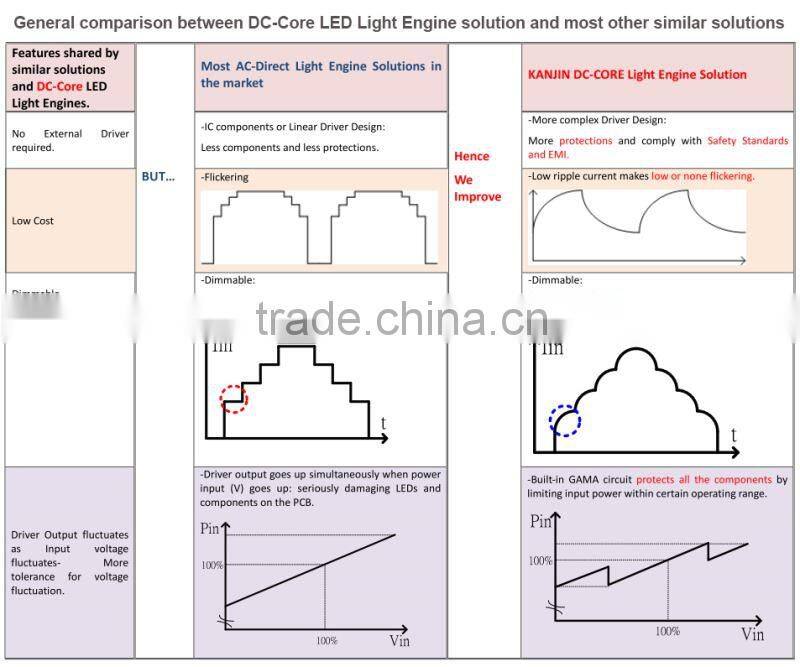

 Feature

All products including samples delivered will meet all the requirements as outlined in the document. The
basic requirements of the design features are listed below:
(1)  Connects directly with AC power source
(2)  Low ripple current to make low flick or no flick
(3)  Dimming able for TRAIC
(4)  Low conduction and radiation (EMI)
(5)  ROHS compliant

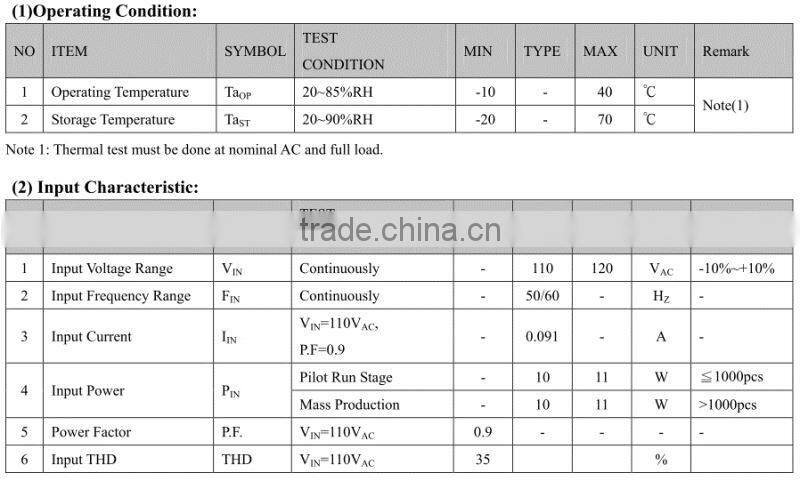

 Electrical Characteristics

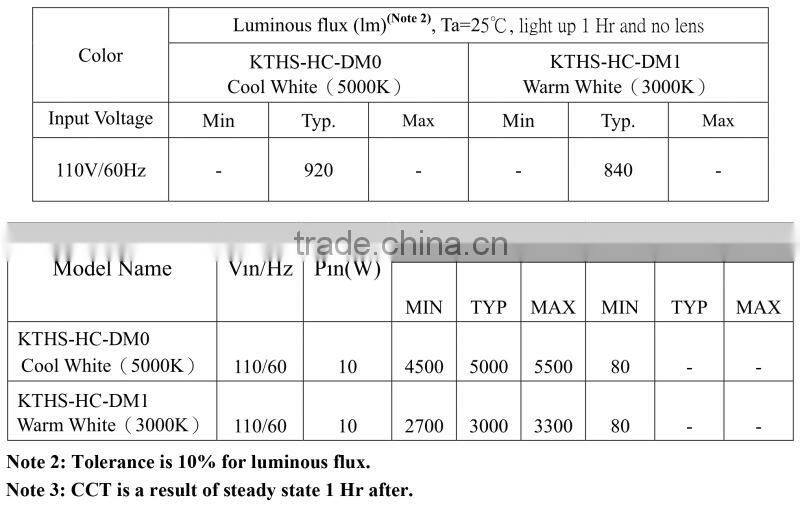

 Optical Characteristics

-----------------------------------------------------------------------------------------------------------------------------------------------

 -----------------------------------------------------------------------------------------------------------------------------------------------



 -----------------------------------------------------------------------------------------------------------------------------------------------
