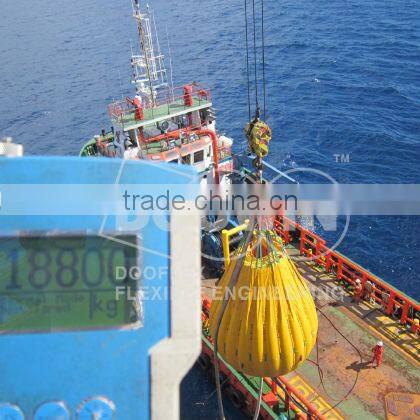

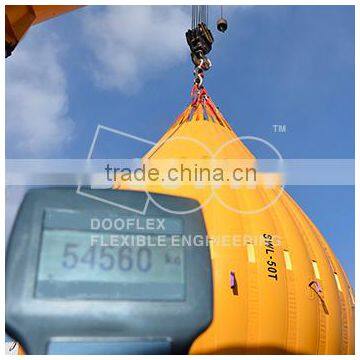

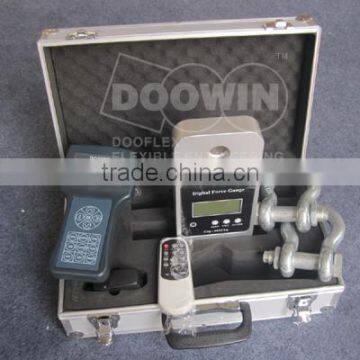

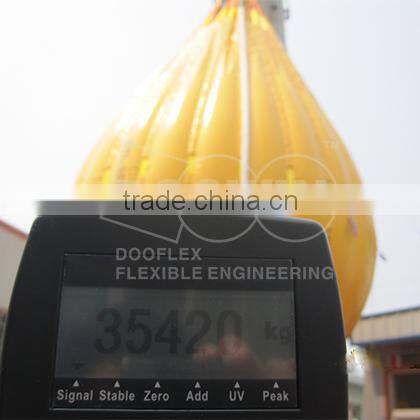

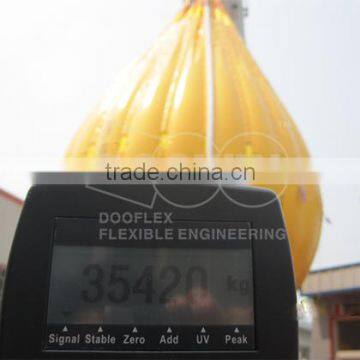

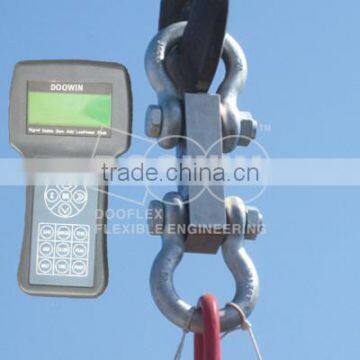

Wireless load cell dynamometer used for the weight measuring of proof load testing using water weight bags. The load cell set consist of a load link with two shackles, wireless readout, and high quality carry case.
Our wireless load cell dynamometer is an extremely well-built instrument for industry use, as a standard wireless tool offer universal applications, Whether used as conventional crane weight or to measure force, it is microprocessor controlled for precision accuracy, calibration is easier with wireless indicator.
The weight measuring is available as 2t, 5t, 10t, 50t, 100t, and 200t.
Specification of Wireless Load Cell Dynamometer:
Capacity |
Weight(kg) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
Φ (mm) |
H (mm) |
Material |
2t |
1.7 |
245 |
112 |
37 |
190 |
43 |
335 |
Aluminum |
5t |
2.7 |
285 |
123 |
57 |
210 |
58 |
405 |
Aluminum |
10t |
10.4 |
320 |
120 |
57 |
230 |
92 |
535 |
Alloy Steel |
50t |
39 |
465 |
150 |
104 |
305 |
184 |
930 |
Alloy Steel |
100t |
81 |
570 |
190 |
132 |
366 |
229 |
1230 |
Alloy Steel |
200t |
210 |
725 |
265 |
183 |
440 |
280 |
1380 |
Alloy Steel |
Technical Data of Wireless Load Cell Dynamometer:
Display: |
18mm 6digits LCD |
Power On Zero Range: |
20% F.S. |
Manual Zero Range: |
4% F.S. |
Tare Range: |
20% F.S. |
Stable Time: |
≤10 seconds |
Overload Indication: |
100% F.S. + 9e |
Max. Safety Load: |
125% F.S. |
Ultimate Load: |
400% F.S. |
Battery Life: |
≥40 hours |
Battery Type: |
“LR6(AA)”size alkaline batteries. 1.5V x 3 |
Operating Temp.: |
- 10°C ~ + 40°C |
Operating Humidity: |
≤85% RH under 20°C |
Wireless Distance: |
Min. 80m [200m(optional)] |
Wireless Frequency: |
2.4GHz(default),433MHz,860MHz(optional) |
Wireless load cell Dynamometer and wireless indicator proven in pratice
