Water Bags Wireless Load cell for water weight bags used for the weight meansuring of proof load testing.

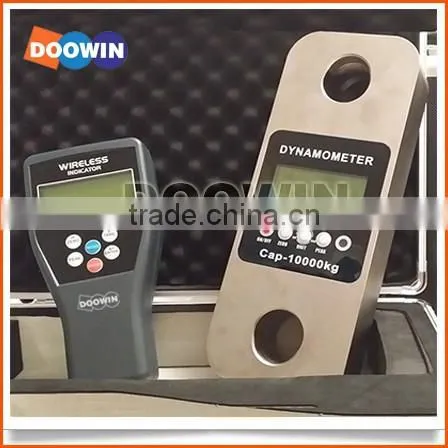

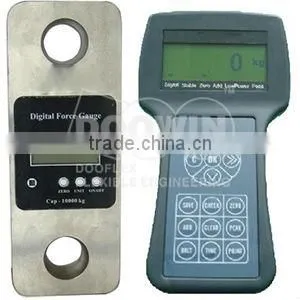

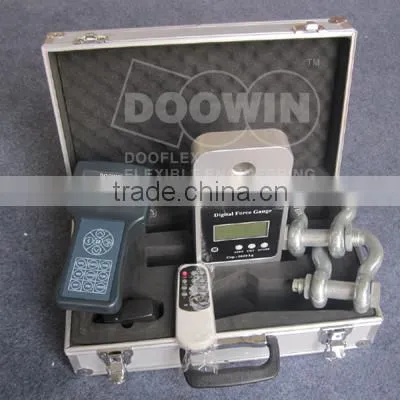

Water weight bag test wireless load cell set is consist of a load link with two shackles, wireless indicator.
Our load cell is an extremely well-built instrument for industry use, as a standard wireless tool offer universal applications, Whether used as conventional crane weight or to measure force, it is microprocessor controlled for precision accuracy, calibration is easier with wireless indicator.
The load weight measuring is available as 2t, 5t, 10t, 50t, 100t, and 200t.

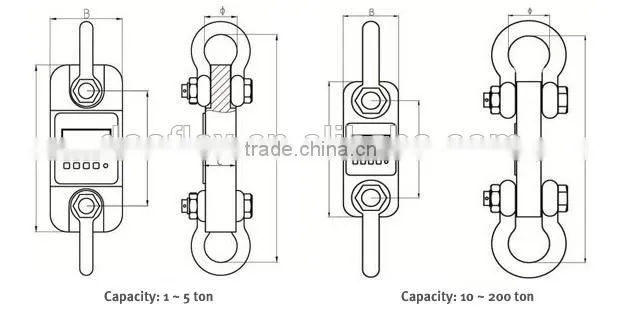

Specification fo Load Cell for water weight bags:
Capacity |
Weight(kg) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
Φ (mm) |
H (mm) |
Material |
2t |
1.7 |
245 |
112 |
37 |
190 |
43 |
335 |
Aluminum |
5t |
2.7 |
285 |
123 |
57 |
210 |
58 |
405 |
Aluminum |
10t |
10.4 |
320 |
120 |
57 |
230 |
92 |
535 |
Alloy Steel |
50t |
39 |
465 |
150 |
104 |
305 |
184 |
930 |
Alloy Steel |
100t |
81 |
570 |
190 |
132 |
366 |
229 |
1230 |
Alloy Steel |
200t |
210 |
725 |
265 |
183 |
440 |
280 |
1380 |
Alloy Steel |
Technical Data of Water Weight Bags Load Cell:
Display: |
18mm 6digits LCD |
Power On Zero Range: |
20% F.S. |
Manual Zero Range: |
4% F.S. |
Tare Range: |
20% F.S. |
Stable Time: |
≤10 seconds |
Overload Indication: |
100% F.S. + 9e |
Max. Safety Load: |
125% F.S. |
Ultimate Load: |
400% F.S. |
Battery Life: |
≥40 hours |
Battery Type: |
“LR6(AA)”size alkaline batteries. 1.5V x 3 |
Operating Temp.: |
- 10°C ~ + 40°C |
Operating Humidity: |
≤85% RH under 20°C |
Wireless Distance: |
Min. 80m [200m(optional)] |
Wireless Frequency: |
2.4GHz(default),433MHz,860MHz(optional) |

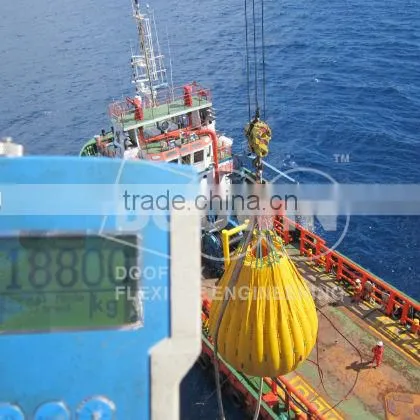

Load Cell Used for the Water Weight Bags:
