Specifications
v belt manufacturer Banded v belt1. Maintenance-free
2. Reliable running performance
3. Outstanding features
v belt manufacturer Banded v belt
Our v-belts consist of banded v-belts and narrow v-belts vulcanized to shape.
Moving smoothly and bearing heavy weights,
these Features:
1)Material:
a)Frame: high modulus polyester string or cord fabric
b) Wrapping: 100% cotton canvasc)Elastomer: high quality chloroprene rubber
2) Specially suitable for transmission devices of motive force in harsh conditions; such as large power and high impact applicationsCompact, with high working speed transmission and transmission of general motive forceWe can supply the
following models:
HB-2 HB-3 HB-4 HB-5 15J2 15J3 15J4 15J5 25J2 25J3 25J4 25J5
Industrial Banded V Belt
Specifications
Banded V-Belts, rubber v belt, industrial belt
1. Maintenance-free
2. Reliable running performance
3. Outstanding features
Banded V-Belts, poly V belt, cogged v belt
Characteristics:
1. Maintenance-free
2. Reliable running performance
3. Outstanding transverse stiffness
4. High power transmission capability
Banded v belt
Banded Tooth Form V-Belt
Detailed Product Description
1.Made using special formulated neoprene components
2.Banded multiple V-belts gives added stability and strength
3.Does not vibrate
Features:
1) Made using special formulated neoprene components
2) Banded multiple V-belts gives added stability and strength
3) Does not vibrate, clap or turn over
Banded v belt/banded v-belt Specification:
Section |
Top width (mm) |
Thickness (mm) |
Length range (mm) |
Angle |
RA |
13.6 |
10 |
1200~5000 |
40° |
RB |
17 |
13 |
1200~10000 |
40° |
RC |
22.4 |
16 |
1800~10000 |
40° |
RD |
32.8 |
21.5 |
4500~15000 |
40° |
R3V |
9.7 |
9.7 |
1200~5000 |
40° |
R5V |
15.8 |
15.8 |
1500~10000 |
40° |
R8V |
25.4 |
25.4 |
2000~1000 |
40° |
item |
top width |
pitch width |
height |
length range(mm) |
3V(9N) |
9.7 |
10.3 |
9.7 |
1200-5000 |
5V(15N) |
15.7 |
17.5 |
15.7 |
1500-10000 |
8V(25N) |
25.4 |
28.6 |
25.4 |
2000-10000 |
SPZ |
10.5 |
/ |
10.0 |
1200-5000 |
SPA |
13.6 |
/ |
12.3 |
1200-5000 |
SPB |
17.0 |
/ |
16.5 |
1500-10000 |
SPC |
22.0 |
/ |
21.0 |
3000-12500 |
Our company can produce many types of v belt , also can produce v belt according the clients requirements. We have the best engineers , who can give you the best suggestions . High quality , good price ! Waiting to cooperate with you !

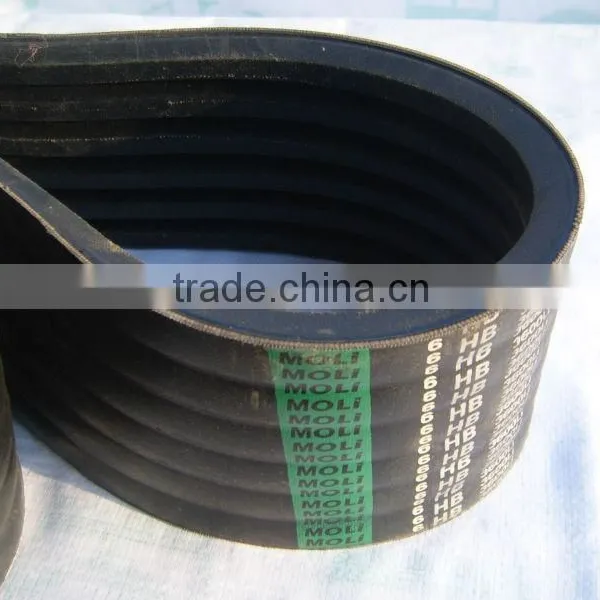

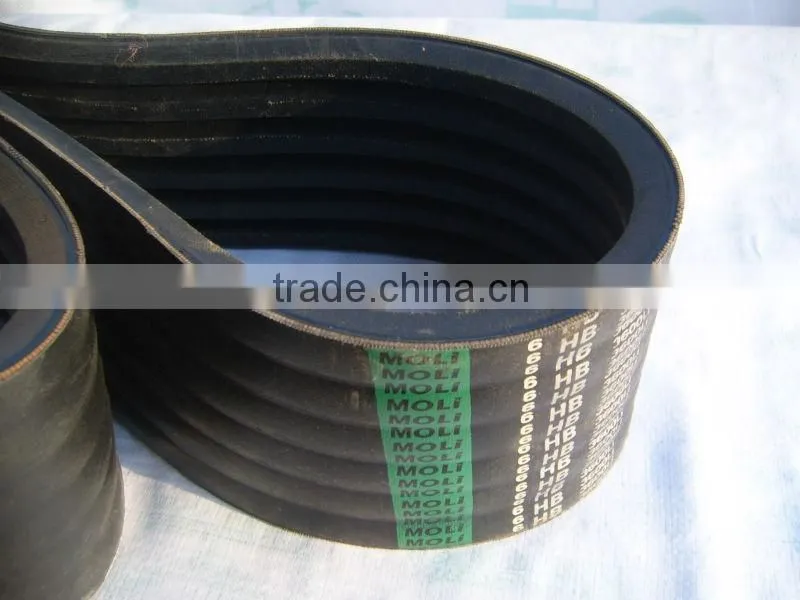

Banded v belt type HB
