Rubber belts V belts(9.5X/10X/10.5X/11X)Applications: light duty power transmission, heavy duty power transmission such as ma
Rubber belts V belts(9.5X/10X/10.5X/11X)
Applications:A wide range of machinery from light duty power transmission for OA and household electric appliances to heavy duty power transmission such as printing machines, machine tool and crushers.
Characteristics:
This belt is very commonly used for power transmission. We supply a wide range of types including heat resistance, oil resistance and flexible types. We also supply banded V-belts, a banded version that prevents vibration, turnover and ensures stable running.
Wholesale V Belts
Type :
Classic V-Belts
Production Type |
Top Width |
Pitch Width |
Height |
Angle |
Length range |
O(Z) |
10 |
8.5 |
6 |
40° |
450mm-2500mm |
A |
13 |
11.0 |
8 |
40° |
500mm-3550 |
B |
17 |
14.0 |
11 |
40° |
600mm-6400mm |
C |
22 |
19.0 |
14 |
40° |
1180mm-1200mm |
D |
32 |
27.0 |
19 |
40° |
2200mm-1400mm |
E |
38 |
32.0 |
23 |
40° |
3000mm-16000mm |
classical v-belt Physical Characters Of Common V-belt(wrapped)GB/T1171-2006
Wedge Belts types:
item |
top width |
pitch width |
height |
length range(mm) |
3V(9N) |
9.7 |
10.3 |
9.7 |
1200-5000 |
5V(15N) |
15.7 |
17.5 |
15.7 |
1500-10000 |
8V(25N) |
25.4 |
28.6 |
25.4 |
2000-10000 |
SPZ |
10.5 |
/ |
10.0 |
1200-5000 |
SPA |
13.6 |
/ |
12.3 |
1200-5000 |
SPB |
17.0 |
/ |
16.5 |
1500-10000 |
SPC |
22.0 |
/ |
21.0 |
3000-12500 |
Banded v belt/banded v-belt Specification:
Section |
Top width (mm) |
Thickness (mm) |
Length range (mm) |
Angle |
RA |
13.6 |
10 |
1200~5000 |
40° |
RB |
17 |
13 |
1200~10000 |
40° |
RC |
22.4 |
16 |
1800~10000 |
40° |
RD |
32.8 |
21.5 |
4500~15000 |
40° |
R3V |
9.7 |
9.7 |
1200~5000 |
40° |
R5V |
15.8 |
15.8 |
1500~10000 |
40° |
R8V |
25.4 |
25.4 |
2000~1000 |
40° |
About our company
Weishi Hongli Rubber Co., Ltd. is an export-oriented production enterprise. Our factory is located in Weishi County. Henan Province,Our main products include stiff cord v-belt, color v-belt, wrapped v-belt, banded belts, agricultural v-belt and conveyor belt . With advanced V-belt production lines in China and the adoption of international standard, our factory has passed the authentication of ISO9001 quality management system.With a good reputation among customers, Our company manufactures with the trade mark of "MOLI" and"double lion" rubber products; have been exported to more than 10 countries and regions.
Our company can produce many types of v belt , also can produce v belt according the clients requirements. We have the best engineers , who can give you the best suggestions . High quality , good price ! Waiting to cooperate with you !

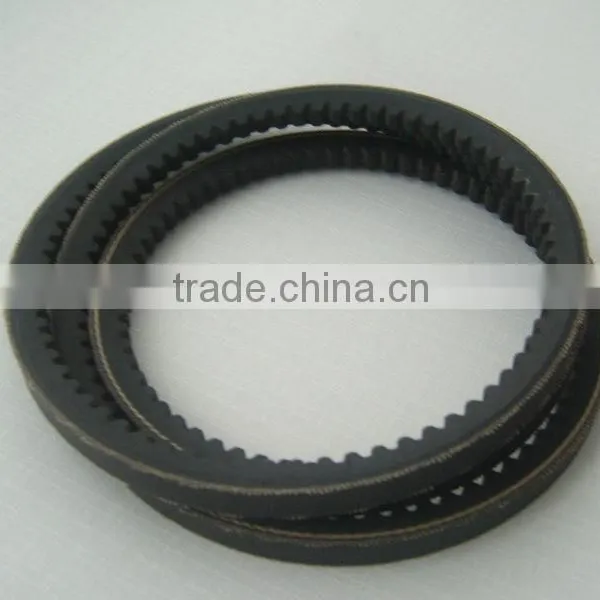

classical v belt type B
