Specifications
1.wraped v belt2.oil/heat/waer/high-tempreature resistance
3.small elongation
4. professional factory with export experience

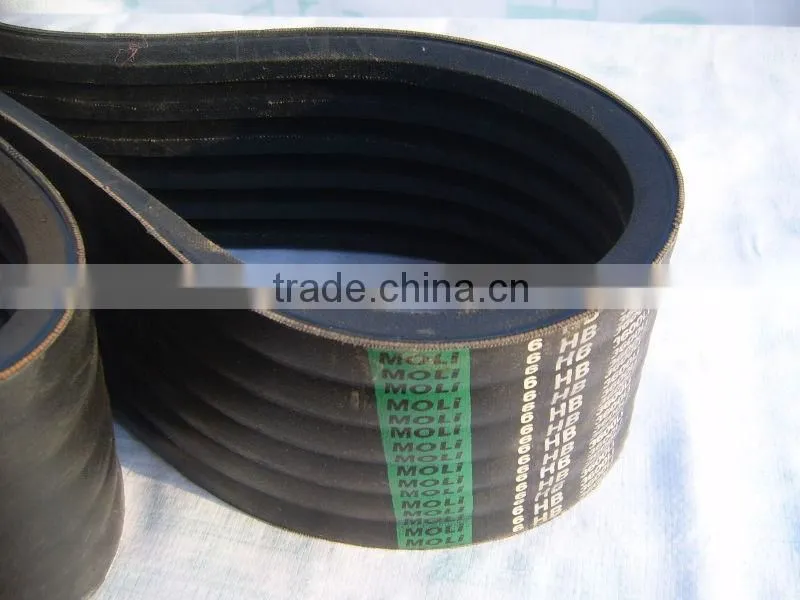

Banded V Belt
Introduction
Our company possess 1000 moulds to produce all kinds of type and material banded v-belts, the effective length is 500mm-4000mm.
This belt are composed of multiple classical v belts which are connected into whole.
1.Effectively solve problems
2.Ensuring equal stress
Charscteristics:
1 good unitary function
2 Each one taking force symmertrically, circulate steady high loading ransferring force, not easily quiver and cross the belt
3 Especially be applicable to pulsant losd and impact vibration situation.
Features:
1) Frame material: Polyester string, cord
2) Enveloped in special rubber-impregnated fabric
3) Elastomer material: Chloroprene rubber
4) Compact, high working speed transmission and transmission of general Motive force
5) Used in transmission devices in harsh conditions such as large power And high impact applications.
Specification:
Section |
Top width (mm) |
Thickness (mm) |
Length range (mm) |
Angle |
RA |
13.6 |
10 |
1200~5000 |
40° |
RB |
17 |
13 |
1200~10000 |
40° |
RC |
22.4 |
16 |
1800~10000 |
40° |
RD |
32.8 |
21.5 |
4500~15000 |
40° |
R3V |
9.7 |
9.7 |
1200~5000 |
40° |
R5V |
15.8 |
15.8 |
1500~10000 |
40° |
R8V |
25.4 |
25.4 |
2000~1000 |
40° |
| item | top width | pitch width | height | length range(mm) |
| 3V(9N) | 9.7 | 10.3 | 9.7 | 1200-5000 |
| 5V(15N) | 15.7 | 17.5 | 15.7 | 1500-10000 |
| 8V(25N) | 25.4 | 28.6 | 25.4 | 2000-10000 |
| SPZ | 10.5 | / | 10.0 | 1200-5000 |
| SPA | 13.6 | / | 12.3 | 1200-5000 |
| SPB | 17.0 | / | 16.5 | 1500-10000 |
| SPC | 22.0 | / | 21.0 | 3000-12500 |
Agricultural v belt
Agricultural v belt
Type |
Top width |
Pitch width |
Height |
length conversion |
length range(inch) |
length range(mm) |
Factory mark |
HI |
25.4 |
23.6 |
12.7 |
li=la-80 |
39-79 |
1000-2000 |
li |
HJ |
31.8 |
29.6 |
15.1 |
li=la-95 |
55-118 |
1400-3000 |
li |
HK |
38.1 |
35.5 |
17.5 |
li=la-110 |
63-118 |
1600-3000 |
li |
HL |
44.5 |
41.4 |
19.8 |
li=la-124 |
79-157 |
2000-4000 |
li |
HM |
50.8 |
47.3 |
22.2 |
li=la-139 |
79-197 |
2000-5000 |
li |
Advanrages>>
1)The wrapper protects the inner layer,strong durability.
2)Special core rubber used,small elongation and long service life
3)Excellent heat-resistance,oil-proof,and wearing resistance
4)Prevent the generation of the static and keep safe use
5)Small friction coeffion coefficient and large transmission effect during operation
6)Less noise during operation
structure
Quality certificates>>
trade show
About our factory>>
Our company,WEISHI HONGLI RUBBER CO.,LTD is a specialized manufacturer and exporter of various kinds of rubber products .
We can design and produce according to your requirements. We have our own tool design, molding and produce department, many years production experience and professional technology can assure the quality and machine ability.
