0.3 inch 6 digit led digital fnd dispaly common cathode and anode mini led display

      0.3 inch 6 digit led digital fnd dispaly common cathode and anode mini led display

Details:

Dominant Wavelength:

Red: 640nm to 645nm,

hight bright red: 620nm to 625nm,

blue: 460nm to 475nm,

pure green: 515nm to 525nm,

yellow: 585nm to 595NM

amber: 600nm to 605nm,

Luminous Intensity:

Red: 50 mcd to 60 mcd

hight bright red: 70mcd to 80mcd

blue: 40mcd to 50mcd

pure green: 180mcd to 200mcd

yellow: 14mcd to50mcd

amber: 30mcd

Forward Voltage

blue/pure green: 3.0V to 3.6v,

red/yellow/amber: 1.8v to 2.2v,

Reverse voltage: 5.0v.

Applications:

Audio equipment or instrument panels

General use for digital indicators

Multimedia product

 Trade Main Markets:

United States,

Western Europe,

Eastern Europe

Middle East,

South America,

Southeast Asia.

Features:

1) LED numeric & alphanumeric displays for indoor, semi-outdoor and outdoor application.

 2) Digit height: from 0.28" to 20" (0.28", 0.3", 0.36", 0.39", 0.4", 0.5",0.52", 0.56",0.8", 1.0", 1.2", 1.5", 1.8", 2.3", 3.0", 4.0", 5.0", 8.0", 10", 12", 16", 20".)

3) 1-digit, 2-digits, 3-digits, 4-digits, 6-digits available with black or grey face.

4) Various emitting colors: red(640nm),yellow green (572nm),pure green(525nm),yellow(590nm),blue(430nm), pure blue(470nm).

5) Applications: elevator/lift, bank exchange rate display, led clock display, led oil price display for gas satation and other different display areas of equipment/machine.

1. Electrical Optical Charactertistics (Ta = 25°C):

 2. Absolute Maximum Ratings (Ta=25°C):

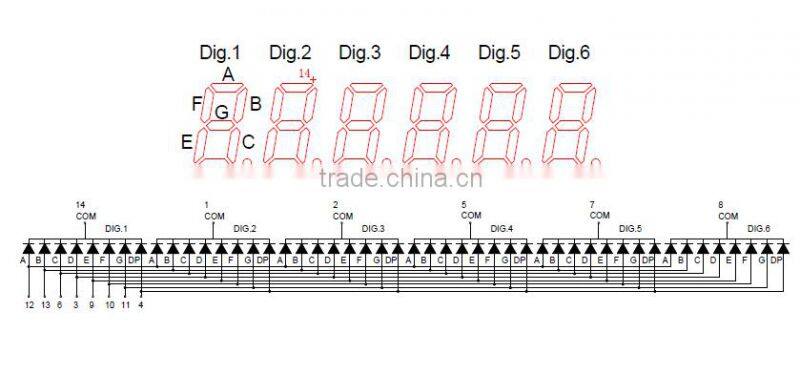

 circuit show :

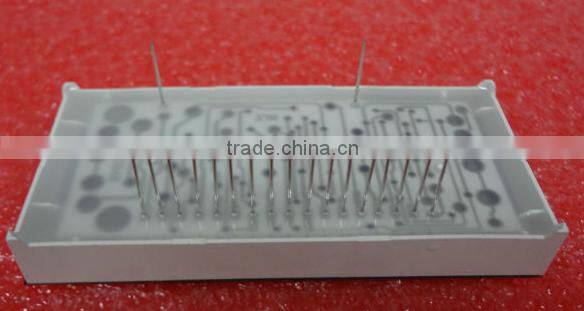

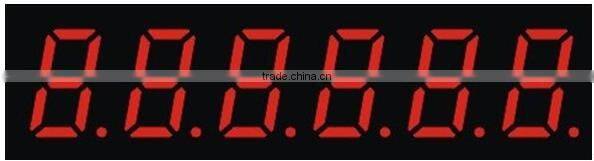

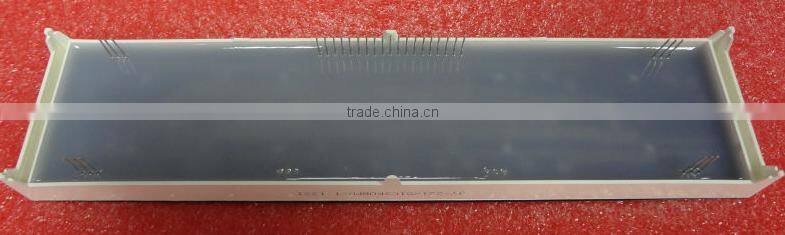

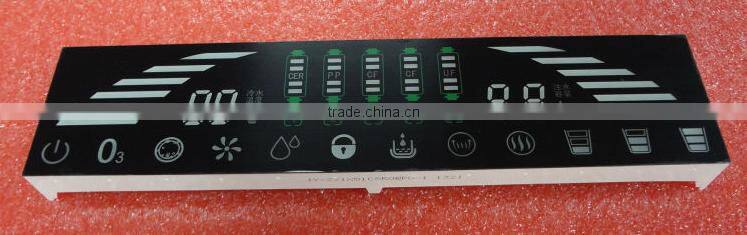

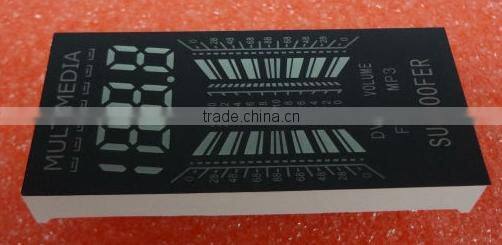

Products show:

About us:     We are specialty in digital led display,7-segment digital led display ,digital led color screen,led dot matrix and Optical fiber terminal ,infrared receiver heard.Welcome to contact us and visit our factory.

We Promise:

1. Your inquiry related to our products or prices will be replied in 24 hours.

2. Experienced staffs to answer all your enquires in fluent English.

3. We are doing the OEM and ODM service for more than 10 years.

4. Protection of your sales area, ideas of design and all your private information.

5. No matter big order or small order , we will provide all the best  quality , best service.

6. Advanced equipments and good materials: ASM machine, good chips and epoxy resin.

7. High brightness and low power consumption .

8. If our products have any problem , we will send free in the next  order if it is our mistake.
