HYGF-A1600 HIGH SPEED COMPUTERIZED LAMINATING MACHINE
Performance and characteristic
Overall machine adopt imported PLC to control tension and protection, to improve overall machine reliability.
Unwinding, gluing coating, laminating traction, rewinding four section closed loop constant tension by man machine interface control and replay.
Gluing is gravure coating method, coating blade shaft adopt heavy type double shaft machine independent moving, blade adjust is manual by pneumatic type, angle is adjusted freely, coating quantity is up to gravure roller mesh, different coating quantity can use different mesh gravure roller
four section cylinder constant temperature oven, in/out air layering, negative pressure design, strong wind power, drying completely, secondary return air, it not only save energy, but also reduce remain glue contant
Oven inner guide roller adopt passive and active type, drive adopt synchronous belt wheel drive type to avoid the material stretch and distortional.
First unwinding and second unwinding (base material and liner) adopt EPC webguide, the film output of the oven adopt EPC inclined webguide
High precision gravure roller coating system, pneumatic blade, uniformity roller, glue cycle device
High precision back press three roller type laminated device, laminating roller adopt interlayer conduction oil cycle by electrical pipe heating, to make the laminating more uniformity and tight.
Coating and laminating machine adopt double frequency block drive, enter PLC computer program control
Use the cooling roller to make the laminated film more smooth and evenness.
Rewinding unit use two sets AC vector by PLC computer system control, pneumatic type back press roller blade cutting auto
rewinding, to reduce destroy.
Rewinding and unwinding shaft adopt tile type air shaft to load and unload the material more convenient
type |
GF-A1600 |
work effective width |
1600mm |
machine max line speed |
200m/min |
laminating max. line speed |
180m/min |
Guide wheel width, diameter |
φ100mm×1650mm |
Rewinding and unwinding type |
Double station, auto splicing system |
unwinding diameter |
φ800mm |
Rewinding diameter |
φ800mm |
Heating method |
electric heating |
Oven lenght |
12m |
Electrical power |
104KW |
Overall machine motor power |
53KW |
Dimension (L*W*H) |
14500×3400×4300mm |
machine weight |
18000kg |

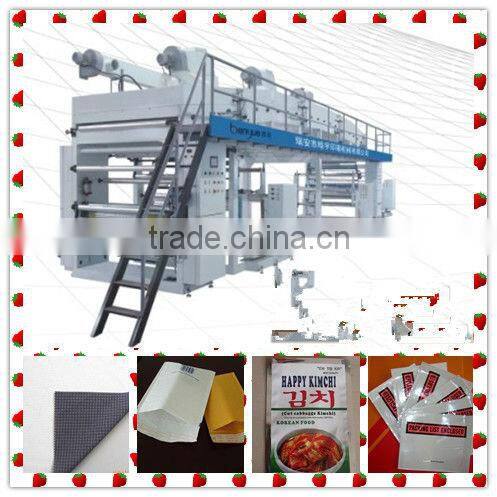

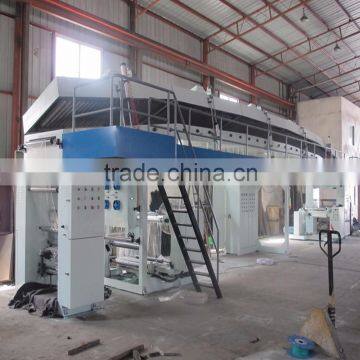

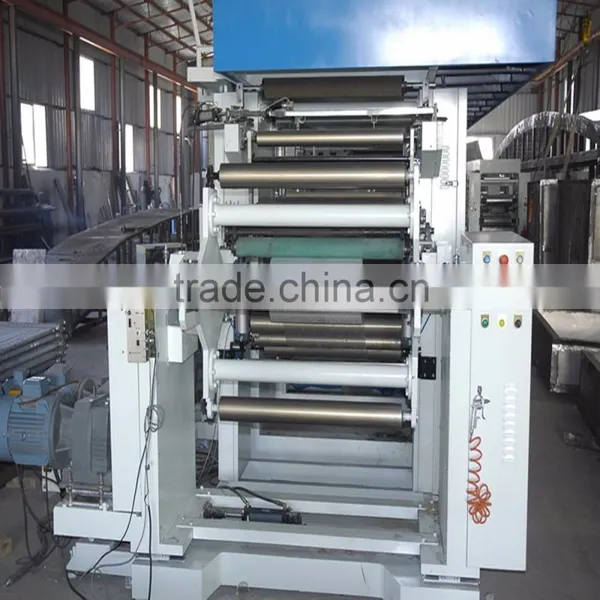

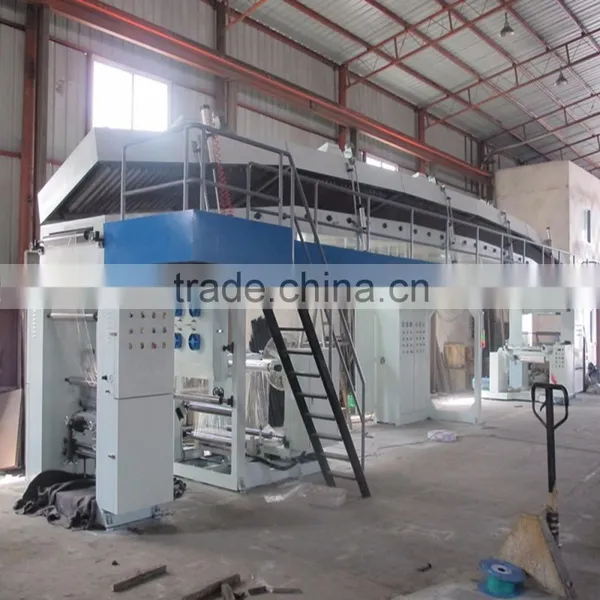

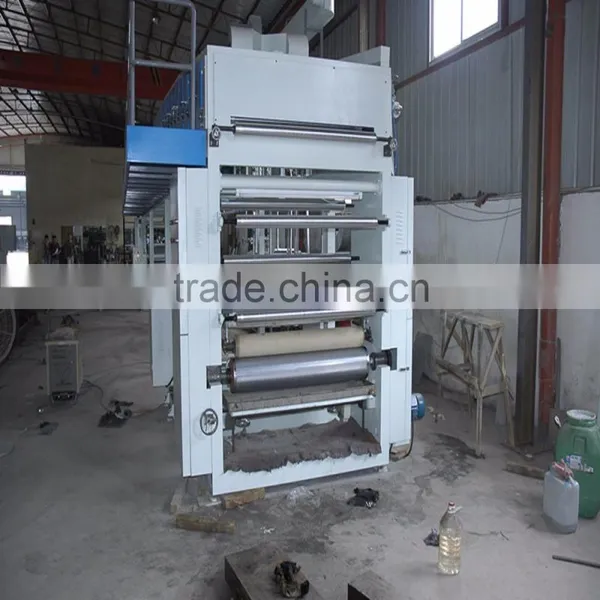

MACHINE PHOTO
PRODUCTION PHOTO

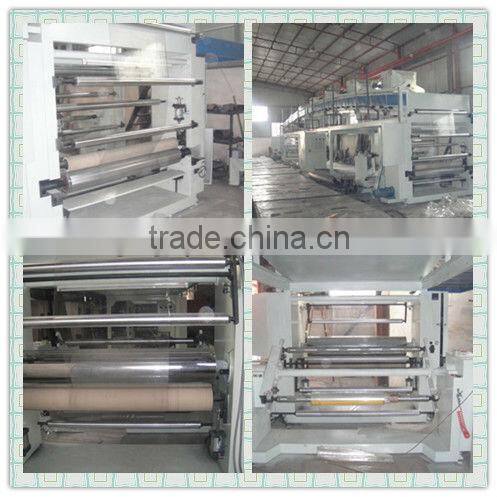

MACHINE PARTS PHOTO
5 OUR SERVICE
1. Purchase Service
HAOYU COMPANY have a specialize and efficiency working team.If you are new on the printing and packing area ,Some samples of your products could be shew to us will be appreicate ,we will give you specialized suggestion of whole work .
2. Shipping Service
HAOYU COMPANY have a spcialized and independent department which just for shipping the buyer's goods .The workers are knowing T/T,L/C Items well.all Exported documents could be made perfectly .
HAOYU COMPNAY copperate with the most famous shipping company in China also.They could provide the best and economic shipping ways to the buyer's port.
3.Installation Services
Installation Services are available with all HAOYU Company machines.HAOYU Comapny will dispatch technician to The Buyer's factory to installation and preoperation of machines .But the buyer need to surpply the round trip tickets ,food ,hotel cost.visa charge,and 100USD/DAY/PERSON as salary.
4.Clients Training Services
HAOYU Company advise The buyer could send own technican come to HAOYU factory to learn how to operate machines.HAOYU Company technician will teach and train the lerners hand by hand till he can operate machine by himself.
Obviouslly, Traning within Installation period is acceptable.
5.After Sales Service
HAOYU Company machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with machines.
Any parts broken ,Just a pictures or a videos.
The new free parts will reach within 3-7 Express working days .
