GFD-1000 Laminating Machine

GFD-1000 Laminating Machine photo-1

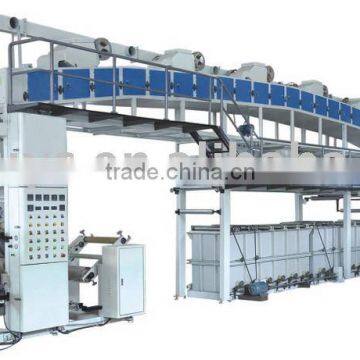

GFD-1000 Laminating Machine photo-2

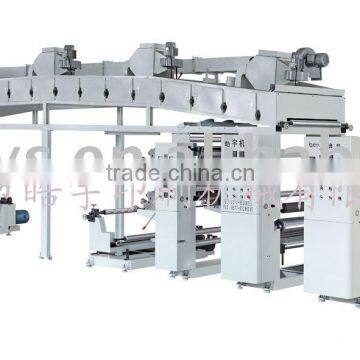

GFD-1000 Laminating Machine photo-3

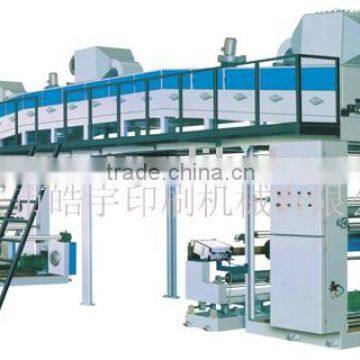

GFD-1000 Laminating Machine photo-4

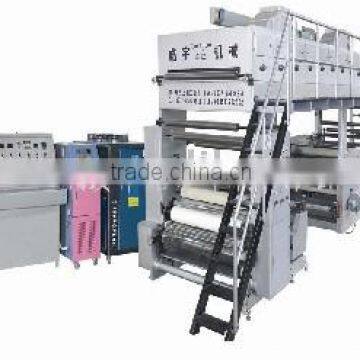

GFD-1000 Laminating Machine photo-5
GFD-1000 Laminating Machine photo-6
US$ 1 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Commodity, Medical, Textiles
Packaging Type:
Case
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Commodity, Medical, Textiles
Packaging Type Case
Packaging Material Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 380V
Power 20KW
Place of Origin Zhejiang, China
Brand Name BENYUE
Model Number FH
Dimension(L*W*H) 18*4.3*4M
Weight 20TONS
Certification CE/ISO9001
After-sales Service Provided Engineers available to service machinery overseas

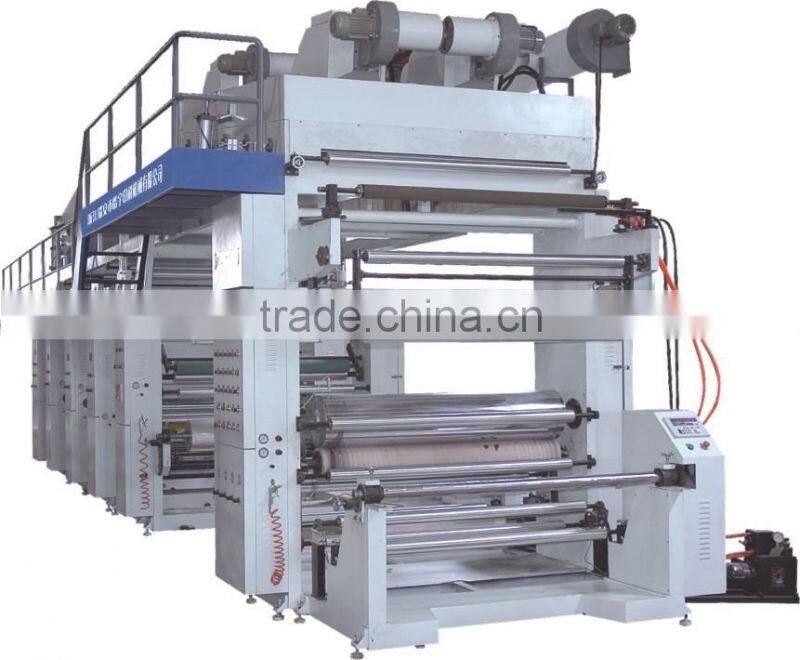

GFD-1000 laminating machine





Usage:

GFD-1000 laminating machine is suitable for laminating rolled film two layers or multi-layers , such as BOPP, PET, nylon, CPP, CPE, and aluminum foils and other laminated materials in the packing industry.To produce high strength,fresh ,boilability pacage

Main technical parameters:

Type

GF1000

Effective working width

1000mm

Diameter and width of guide pulley

80mm×1050mm

Max working speed

160m/min

Max machine speed

180m/min

Heat method

Electric heating

Gross power

185kw

Max diameter of unwinding basis material

Double-station 800mm

Max diameter of rewinding basis material

Double-station 850mm

Dimension (L*W*H)

14.5m×2.8m×4.8m             (the height of top-opening is 5.3m

Weight

About 20 tons

Functions and characteristic:

1.The main motor of this machineadopts double variable frequency synchronous speed regulating.

2.The thickness of the laminating glue is choose by the doctor blade and vein roller.

3.Rewinding & unwinding adopt double position automatic turret with EPC system. Non-stop roller change

4.The two kinds of doctor blade type and pressing-type gluing ways can be chosen

5.Equally gluing and laminating adopt pneumatic pressing equipment.

6.Drying system is adopts electronic heating, oil furmace heating, steam heating transfer

7.Pneumatic oven and trans-membrance controller worked with inner roller synchronous speed regulating.

8.Every independent constant temperature section with heating are adopt recycle system and in-out air blower equipment

9.Equipped with automatic tension control system for very section.

Requirment:

Manufacture machinery can according to request of the customers (width available 300-2000mm)

Heating method: Electricity heating, oil furnace heating,steam heating.







GFD-1000 laminating machineGFD-1000 laminating machine

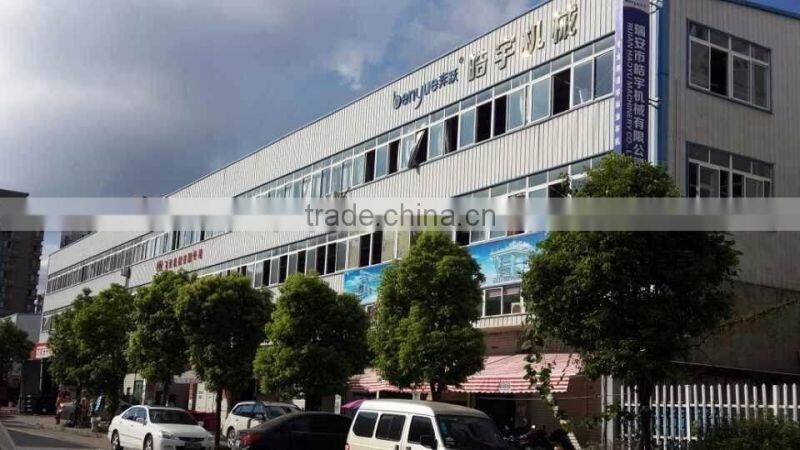

our factory



GFD-1000 laminating machineGFD-1000 laminating machineGFD-1000 laminating machineGFD-1000 laminating machineGFD-1000 laminating machineGFD-1000 laminating machineGFD-1000 laminating machineGFD-1000 laminating machineGFD-1000 laminating machineGFD-1000 laminating machineGFD-1000 laminating machineGFD-1000 laminating machine
