Help CenterVarious Models Factory Directly Liquid Filled Pressure Transmitter
Related Products
-
Stable Performance Factory Directly Digital Pressure Gauge of SUPCONUS$ 400 - 600MOQ: 1 Case -
Various Models Factory Directly Pressure Transmitter Model M-10 of SUPCONUS$ 400 - 600MOQ: 1 Case
-
Long Lifetime Factory Directly Mount Gauge Pressure Transmitter of SUPCONUS$ 400 - 600MOQ: 1 Case
-
Good Reputation Factory Directly Explosive Proof Pressure Transmitter of SUPCONUS$ 400 - 600MOQ: 1 Case
-
Fully Stocked Factory Directly China Differential Pressure Transmitters of SUPCONUS$ 400 - 600MOQ: 1 Piece

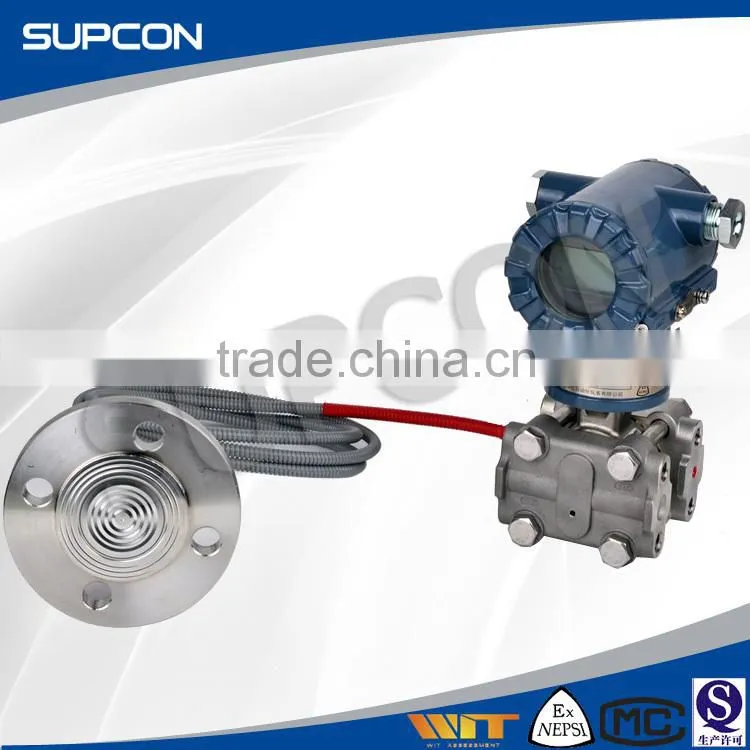

CJT YFGP remote gage pressure transmitter can prevent the isolating diaphragm of the transmitter from being directly touched with the measured medium. It is applicable to the following situations:
l The high temperature medium is necessary to be isolated from the transmitter;
l The measured medium will bring corrosion to the transmitter connector and the sensitive element;
l There are suspended solid particles in the measured medium or high-viscous, which will easily result in plugging of transmitter connector and pressure chamber;
l The measured medium is easy to solidify or crystallize when being induced out by induced pressure tube;
l Water flush is needed before the measured medium is changed while the measured medium not allow of mixing;
l It is required to maintain the sanitary condition and prevent from pollution.
Performance Specifications |
(Zero-based calibrated ranges, reference conditions, silicone oil fill, 316L SST isolating diaphragms and 1.5m capillary.)
Range, Sensor Limits and Overpressure Limits
Range Code |
Span (kPa) |
Range (kPa) |
Over pressure (MPa) |
||
Min. |
Max. |
LRL |
URL |
||
4 |
6.2 |
37.4 |
-37.4 |
37.4 |
Nominal Pressure |
5 |
31.1 |
186.8 |
-100 |
186.8 |
Nominal Pressure |
6 |
117 |
690 |
-100 |
690 |
Nominal Pressure |
7 |
345 |
2068 |
-100 |
2068 |
Nominal Pressure |
8 |
1170 |
6890 |
-100 |
6890 |
Nominal Pressure |
Accuracy
±0.2% of span
Stability
±0.2% of URL for 12 months
Span Turn-down Capacity
Up to 6:1
Temperature Effect
±0.4%URL/10℃
Physical Specifications |
Wetted Materials
Isolating diaphragms:
316L SST, Hastelloy C, tantalum, titanium
Drain/Vent valves:
316 SST
Process flanges and adapters:
316 SST
Wetted o-rings:
Nitrile rubber
Structural
Please refer to the remote seal device selection table
Flange: HG 20592(DIN),HG20615(ANSI)
Non-wetted Materials
Fill fluid:
Silicone oil
Nuts and bolts:
Stainless steel
Electronics housing:
Low-copper aluminum
Cover o-rings:
Nitrile rubber
Process Connections
Flange side:
Please refer to the remote seal device selection table
Thread side:
¼-18NPT
Connector (Optional)
Mounting bracket: Bend Bracket, Pipe Mounted (2 in.), Flat Bracket, Pipe Mounted (2 in.)
Q: Are you a manufacture or a trading company?
A: We are a 20-year-manufacturer engaged in the field of cleaning products, and we have got the permit of import and export as well.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Hangzhou, China. 25 Minutes by car far away from Xiaoshan Airport.
Q: How can I get the Various models factory directly liquid filled pressure transmitter samples? What's the lead time?
A: Samples could be sent within one week, the lead time is 35-45 days..
Q: Do you provide Various models factory directly liquid filled pressure transmitter ODM/OEM service?
A: OEM/ODM is welcome, there are 25 persons in our R&D team, and customized colours is optional. From the concept to finished goods, we do all (design, prototype reviewing, tooling and production) in the factory.
