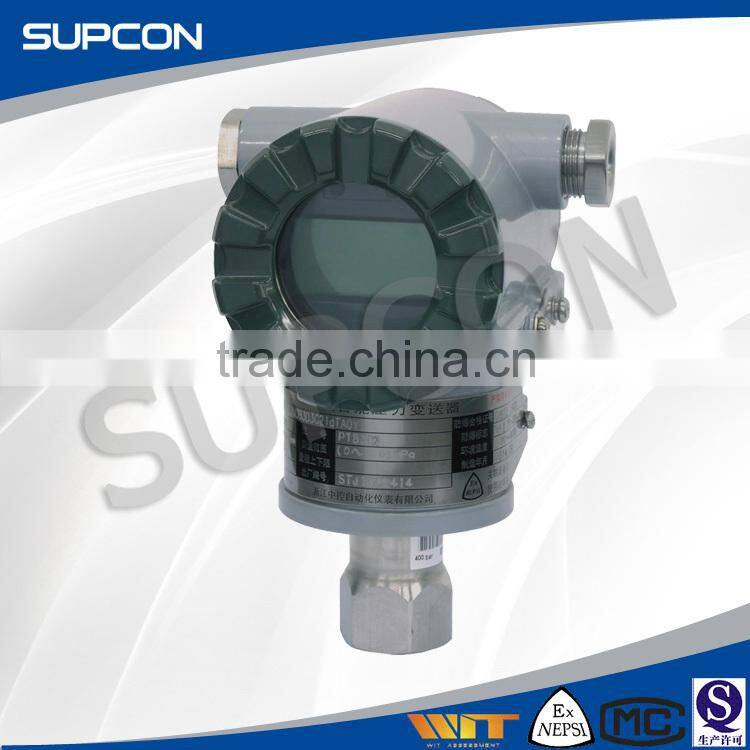

Excellent Factory Directly Differential Pressure Level Transmitter

High accuracy
±0.2% accuracy for all calibrated spans is the standard feature for all AP models covering 10 to 3000kPa. The compositive monocrystaline piezoresistive sensor assures this accuracy for all elevated or suppressed calibration ranges without additional adjustment.

Application flexibility
Various options that render the CXT suitable for almost any process applications include:
–Full range of hazardous area approvals
– Built-in RFI filter and lightning arrester
– 5-digit LCD meter with engineering unit
– Stainless steel electronics housing
– Wide selection of anticorrosion materials

Span, range
Working pressure Span (kPa) Range (kPa) Over range
Type (MPa abs) Min. Max. LRL URL MPa
SKH 01         0~0.04 10 40 0 0.4 0.1
SKH 02         0~0.5 25 250 0 0.25 0.5
SKH 04         0~3 200 3000 0 3 5

Process temperature
(-40~85)℃
(-20~85)℃(For explosion proof units)

Performance Specifications for Linear Output
(Zero-based calibrated ranges, reference conditions, silicone oil fill, 316L SST isolating diaphragms and 4 to 20mA analog output in linear mode.)

Accuracy rating (including linearity, hysteresis, and repeatability)
For spans greater than 1/10 of URL: ±0.1% of span or ±0.065% of span (21st digit: H)
For spans below 1/10 of URL and greater than 1/16 of URL:
Temperature effect
Effect per 28℃ change between the limits of -40℃ and +85℃
Over range effect
Zero shift: ±0.3% of URL for any over range to maximum limit
Stability
±0.2% of upper range limit (URL) for 10 years.(For 6th digit code "3", "4")
Mounting position effect
Zero shift: less than 0.1kPa for a 10° tilt in any place.

Physical Specifications
Process-wetted parts material
Material code Process-wetted body
Diaphragm Wetted sensor body
V 316L SST 316 SST
H Hastelloy-C 316 SST
J 316L SST + Au coating 316 SST

Non-wetted parts material
Electronics housing
Low copper die-cast aluminum alloy finished with polyester coating (silver), or CF8M, as specified.
Electronics housing cover
Low copper die-cast aluminum alloy finished with polyester coating (atrovirens), or CF8M, as specified.
Environmental protection
IEC IP67
Mass (weight)
Transmitter approximately 2.2kg without options
Electrical connections
½-14NPT or M20×1.5 conduit, as specified.
External terminal
M4 screw
Process connections
½-14NPT(female thread),½-14NPT(male thread)
M20×1.5(female thread),M20×1.5(male thread),as specified.
Mounting
On 50A(2B) pipe using mounting bracket, direct wall mounting or direct process mounting.
