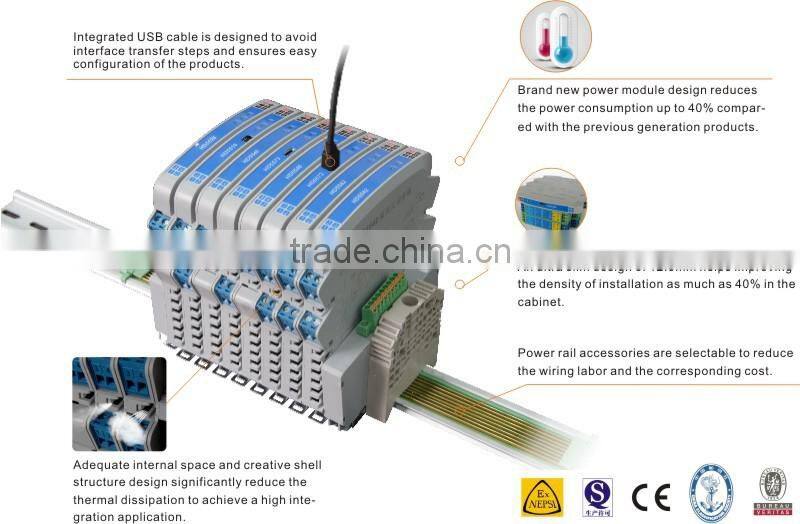

Help CenterUltrathin Pt100 Temperature Transmitter 4~20mA Output
Related Products
-
SUPCON SB3041US$ 135 - 136MOQ: 20 Pieces -
Supcon With Proxinity Detector Analog Input Signal Isolators HD5542US$ 80 - 100MOQ: 10 Pieces
-
HD5526 Single 4~20mA Digital Output Signal IsolatorsUS$ 80 - 100MOQ: 10 Pieces
-
HD5516 Dual Digital Input Signal Isolators for High Packing DensityUS$ 80 - 100MOQ: 10 Pieces
-
SB3016R Dual Relay Output Signal Isolator With Low Cost per ChannelUS$ 50 - 80MOQ: 20 Pieces
Overview
The HD5573 converts a low-level dc signal from a temperature sensor mounted in a
hazardous area into a 4/20mA current for driving a safe-area load. Software-selectable
features include configuration, ranging, monitoring and testing for eight thermocouple
types, or three kinds of 3-wire RTDs. Each thermocouple model converter has an
integral sensor for the purpose of cold-junction compensation. Configuration is carried
out through a port inside of the module using and a personal computer
Specification
Number of channels
1
Location of switches
Zone0, IIC, T4-T6 hazardous area
Div 1, Group A, hazardous location
Power supply
(20~35)VDC
Max current consumption
40mA at 24VDC
Signal source
3-wire Pt100, Pt1000 or Cu50 RTDs to
BS1904/DIN 43760; Types J, K, T, E, R, S,
B or N THCs to IEC58;
(-75~75)mV
(0~2200)
RTD excitation current
500μA nominal
Output range
4 to 20mA nominal into 450Ù max
Response time
About 500ms
Temperature drift
Inputs:
MV/THC: 0.003% of input value/
Cu50/Pt100: ±7m /
Pt1000: ±40m /
Output:
±0.6ìA/
LED indicators
PWR green for power on indication
STS green for normal working
indication, blinking green for over range
indication, red for error indication
Isolation
250V AC/DC between safe and
hazardous area circuits
NEPSI max approval parameters
Terminals 1~4:
U =7.1V I =16mA C =14.6ìF O O O
L =100mH P =29mW O O
Environmental Limits
Operation temperature: (-20~60)
Storage temperature: (-40~80)
Relative humidity: (5~95)%RH
Application
Pt100, Pt1000 or Cu50 RTDs; Types J,K, T, E, R, S, B or N THCs.
