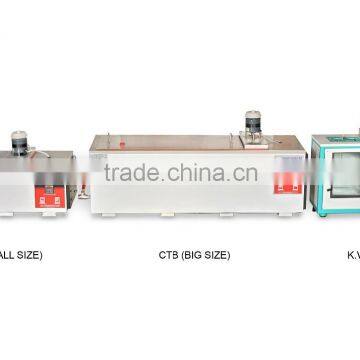

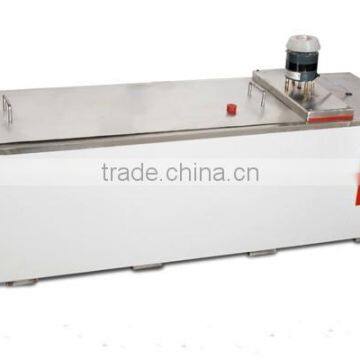

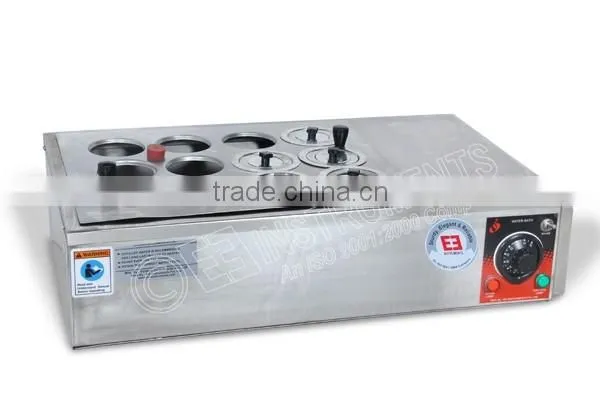

Kinematic Viscometer bath

Specifications

EIE Kinematic Viscosity Bath consumes less energy and measures kinematic & intrinsic velocity with great accuracy & precision.



Introduction :

Used for determination of Kinematic and intrinsic viscosity of fuels, lubricants & petrochem raw materials at constant temperatures in accordance with ASTM D 445 and other equivalent methods. Available in two versions, to work at above ambient temperature and below ambient temperature.



General Descripation & Specifications :

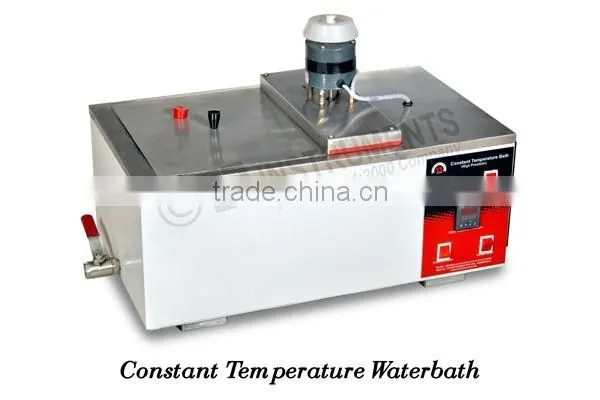

 Double  walled,  outer   chamber  made  of G.I.  - powder coated, with  removable toughened Glass window panel, inner chamber made of S. S.  FHP motorised stirrer for uniform temperature, Dual Display Microprocessor Based Digital Temp. Controller with PT-100 sensor. Temperature range from 5° C above  ambient to 100° C., Control accuracy  ±  0.1°C. Below ambient Viscosity Baths are fitted with Refrigeration system (Temperature Range : 10°C to 100°C). The Baths can accommodate 2 / 4 / 8 Viscometers with varying tank volumes.

• Stainless steel bath
• Temperature controller (Thermostatic/Digital)
• Immersion electric heater
• Constant speed Pump cum stirrer
• Carriage holding up to three standard briquette moulds
• Electric motor with gear mechanism
• Stainless steel scale and pointer
• Control Panel

Reverse Flow Viscometer :

 The viscometer is made of clear borosilicate glass free from visible defects. All glass tubing used in the construction of a single viscometer is of the same composition and the finished instrument is thoroughly annealed. The design and details of the viscometer are given at side. The size, approximate constant and Kinematic Viscosity is as per table.



Size No.	App. Constant (cSt/s)	Kinematic Viscocity Range (cSt)
4	0.1	6 to 100
5	0.3	18 to 300
6	1.0	60 to 1000
7	3.0	180 to 3000
8	10	600 to 10000
9	30	1800 to 30000
10	100	6000 to 100000
11	300	18000 to 300000



Cannon Fenske Viscometer :



For opaque and transparent liquids : detailed drawings of the reverse flow ‘Cannon-Fenske’ viscometer is given in the figure. The size, approximate constant and kinematic viscosity range, is given in the table.



Size No.	App. Constant (cSt/s)	Kinematic Viscocity Range (cSt)
150	0.035	2.1 to 35
200	0.1	6 to 100
250	0.25	15 to 200
300	0.5	30 to 500
350	1.2	72 to 1200
400	2.5	150 to 2500
450	8	450 to 8000
500	20	1200 to 20000
