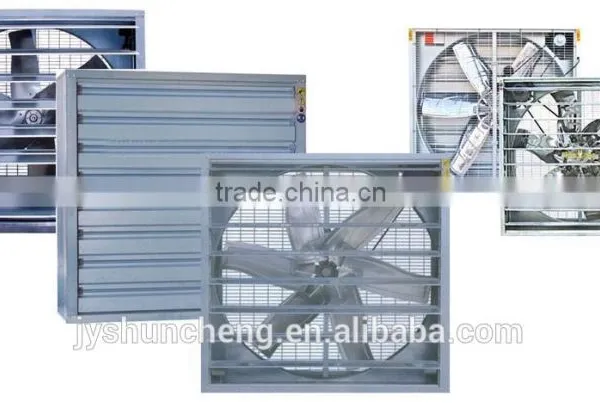

Yaoshun Professional Ventilation Environment- Friendly Exhaust Fan

Yaoshun Professional Ventilation Environment- Friendly Exhaust Fan thumbnail-1
Yaoshun Professional Ventilation Environment- Friendly Exhaust Fan thumbnail-2
Yaoshun Professional Ventilation Environment- Friendly Exhaust Fan photo-1
Yaoshun Professional Ventilation Environment- Friendly Exhaust Fan photo-2
US$ 125 - 140 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Electric Current Type:
DC
Mounting:
Wall Fan
Blade Material:
Stainless Steel
Contact Supplier Request Quote Chat Now
Jiangyin Shuncheng Air Treatment Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type DC
Mounting Wall Fan
Blade Material Stainless Steel
Place of Origin China
Brand Name YAOSHUN
Model Number YS1000/YS1250/YS1400
Voltage 380v
Power 750/1100/1500w
Air Volume 26900/37600/48100 m³/h
Speed 600/439/439 rmp
Certification CCC, CE
After-sales Service Provided Overseas third-party support available

 The best choice of ventilation and cooling the temperature in the factory and greenhouse.

yaoshun professional ventilation environment- friendly exhaust fan

Main structure:

Fans mainly consists of blade,motor,frame,protect net,bracing cage,shutters.The motor drives blade to cause air flow and louver window can open and close automatically to keep the dust from entering.

Performance and characteristic:

Frame using advanced automatic processing,high precision.strong corrosion resistance with zinc coating.High-strength aluminum alloy casting wheel, the reasonable perspective of the type, to research the maximum air flow. High precision micro-computer-added manufacturing can make the best of its fan.

Five rigorous quality testing procedures: noise detection, vibration testing, concentric rotation performance testing, speed of blade testing and the whole fan efficiency detection.

380V special motor, CAD/CAM optimizing design.

yaoshun professional ventilation environment- friendly exhaust fan

Outer frame:using the standard galvanized sheet,

the pressure muscle strengthen design with once

 ramming formation; standardly produced by advanced

 rivet craft assembly line;stable performance,can

compared favorably with the import product.
yaoshun professional ventilation environment- friendly exhaust fan

Shutter: having two kinds for choice: zinc plate and

 stainless steel plate. Characteristics: good rust

 prevention, sealing , lightproof.
yaoshun professional ventilation environment- friendly exhaust fan

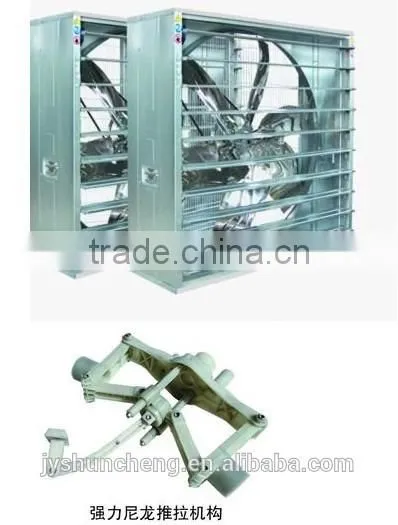

Shutter linkage: made of new nylon material,

supporting linkage system,closing and opening

 shutters rapidly and swiftly. Width:400mm,

 increasing the loading capacity.
yaoshun professional ventilation environment- friendly exhaust fan

Automatic opening system: the transmission belt

 uses automatic tight system, won’y relax, fall from

the belt,operated simply. The heavy hammer institution

 utterly guarantees the shutter open and close safely,

avoiding the loss of wind volume caused by shutter

opening not to 90°.
yaoshun professional ventilation environment- friendly exhaust fan

Bearing: same as that in car wheel,

high intensity and duration.
yaoshun professional ventilation environment- friendly exhaust fan

Wheel and blade base: made of magnesium alloy,

using a stamping molding process, light weight,

 fine performance,stable running.
yaoshun professional ventilation environment- friendly exhaust fan

Motor: Exported;

protect level: IP5.5

 Insulation degree: F.

PARAMETER

Type

YS1000

YS1250

YS1400

Blade dia.(mm)

1000

1250

1400

Shutter rotational speed(r/min)

600

439

439

Motor rotational speed(r/min)

1400

1400

1400

0 pa air flow

32500

43600

54800

10 pa air flow

30500

41500

52650

20 pa air flow

28800

39800

50300

30 pa air flow

26900

37600

48100

Noise (dB)

≤70

≤70

≤70

Input power(w)

750

1100

1500

Rated voltage(v)

380

380

380

Height

1100

1380

1550

Width

1100

1380

1550

Thickness

400

400

400

Weight

50

72

82

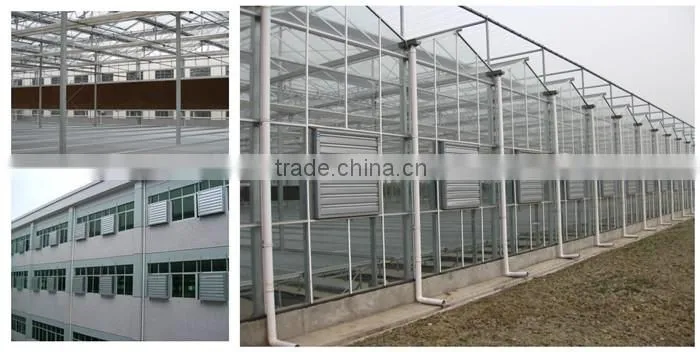

Exhaust fan application in the workshop

yaoshun professional ventilation environment- friendly exhaust fan

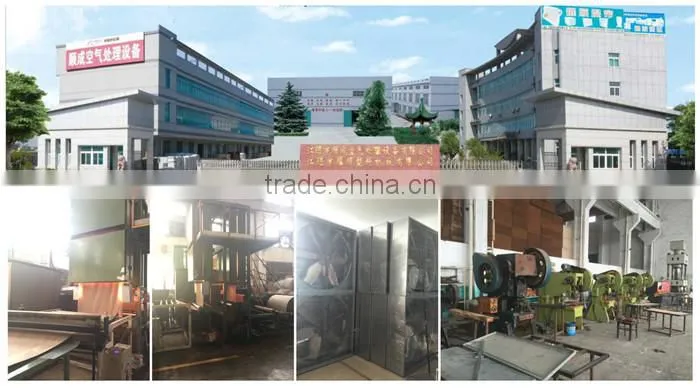

Company Information

Jiangyin Shuncheng airtreatment equipment co.,ltd was established in 2004 .Our core competencies is evaporative cooling pad and exhaust fan and  our markets are all over the world. (WITH US YOUR MONEY IN SAFE YOUR BUSINESS IN SAFE).

Hope fully to be your honest dealer and trustworthy supplier in China.

yaoshun professional ventilation environment- friendly exhaust fan
