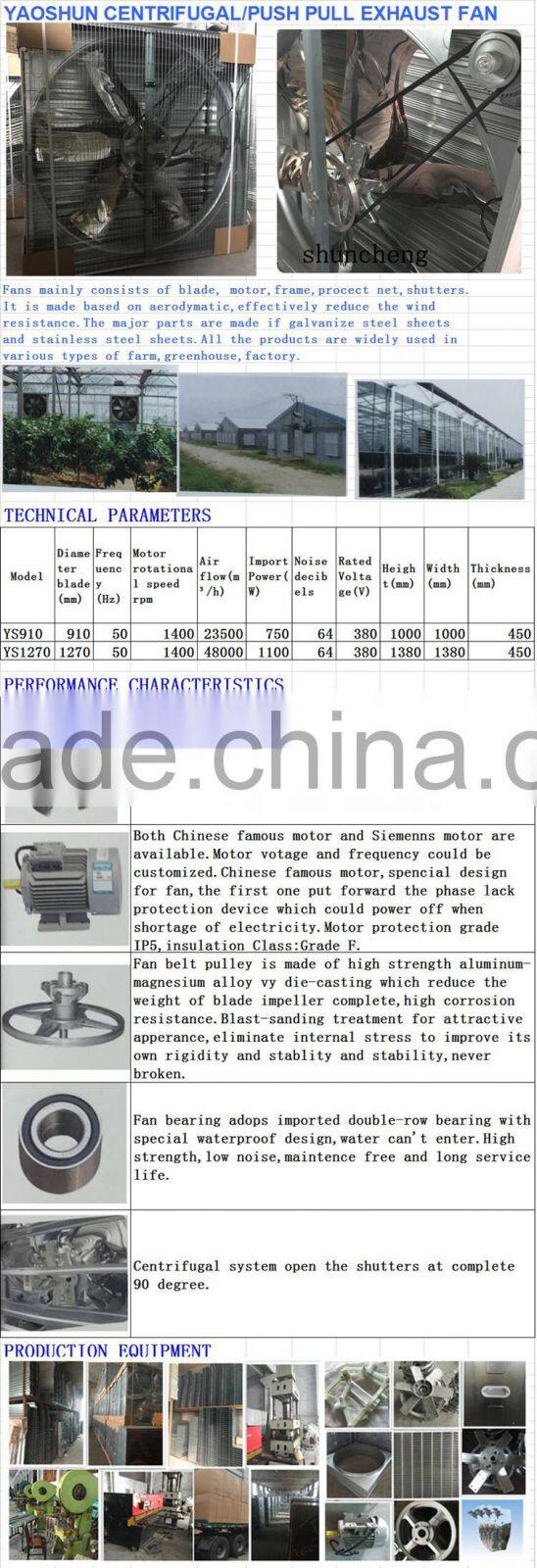

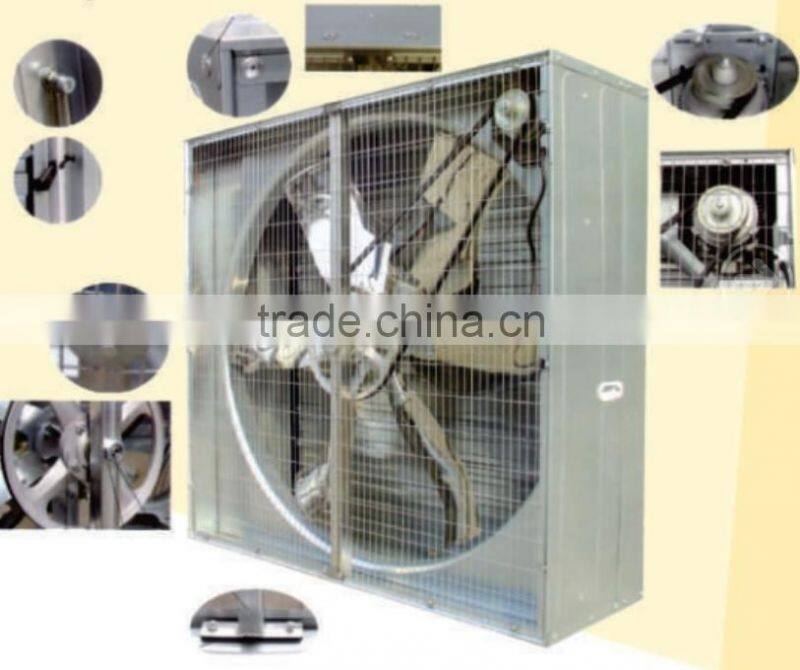

Push-pull type exhaust fan

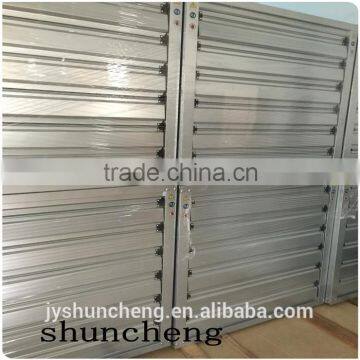

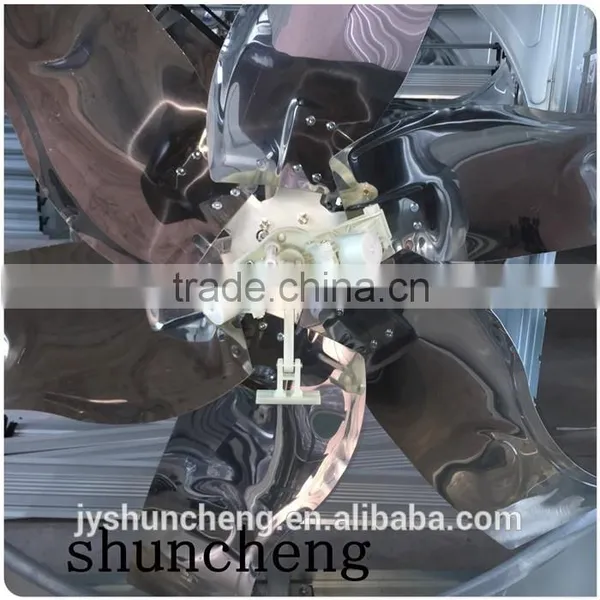

1)Special push-pull shutter mechanism can open and close shutter automatically.
2)Stainless steel blade uses a stamping molding process,possessing beautiful,durable,high-precision balance testing revision characteristics , avoiding being deformed and cracked,working smoothly,reducing the noise and effectively improving the service life.
3)Unique concave handling design of exhaust fan not only helps avoid inconvenience occurred in the transport,but also keep favorable installation and beautiful exterior.
4)V-belt pulley is made of high-strength and light-weight aluminum magnesium alloy,formed by heat press processing.
5)A-belt or B-belt,can be customized according to the sales condition of agents to meet different customers’ needs.
6)Equipped with efficient and energy-saving motor with CCC certification.Protection level:IP55.Insulation level:F.
7)Guide rod-embedded steel is installed on the impeller,enhancing the reliability,and effectively avoid shift during the process of nylon production.

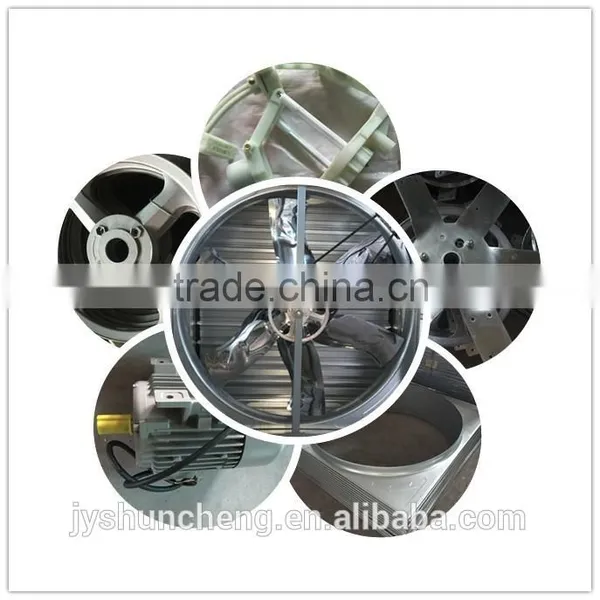

Wind collector:Made in 1.0mm with no galvanized sheet. Can produce type #910 and 270, also can be customized according to uses’ needs.
Protecting wire net:Made by hard-drawn wires of different diameters(also can use required materials according to users). Surface processing uses electrostatic powder painting or galvanization. The surface color can be made according to customers’ request.
Iron base for the blade: One-step forming process, strong and reliable, ensure the service life.
Push-pull aluminum wheel: Made of high strength aluminum and magnesium alloy by press casting mold. light material and high intensity.
Fan blade:Professional designed blade angle. Air volume keeps consistent in the fan using process through dynamic balance test.
Push-pull institution:high strength,high toughness nylon.
Parameter
Model specifications |
YS-1000 |
YS-1380 |
Diameter of blade(mm) |
910 |
1270 |
Frequency(Hz) |
50 |
50 |
Motor rotational speed(rpm) |
≥1400 |
≥1400 |
Air flow(m³/h) |
23500 |
48000 |
Import power(W) |
750 |
1100 |
Noise(decibel) |
≤64 |
≤64 |
Rated voltage(V) |
380 |
380 |
Height(mm) |
1000 |
1380 |
Width(mm) |
1000 |
1380 |
Thickness(mm) |
450 |
450 |
FEATURES:
•Quality durability
•Cost efficiency as designed low energy consumption
•Visual and resource effective
•Precision engineered
•perfect performance
•Low maintenance and reliability
•Long service life
Brief introduction:
1)Special push-pull shutter mechanism can open and close shutter automatically.
2)Stainless steel blade uses a stamping molding process,possessing beautiful,durable,
high-precision balance testing revision characteristics , avoiding being deformed and
cracked, working smoothly,reducing the noise and effectively improving the service life.
3)Unique concave handling design of exhaust fan not only helps avoid inconvenience
occurred in the transport,but also keep favorable installation and beautiful exterior.
4)V-belt pulley is made of high-strength and light-weight aluminum magnesium alloy,
formed by heat press processing.
5)A-belt or B-belt,can be customized according to the sales condition of agents
to meet different customers’ needs.
6)Equipped with efficient and energy-saving motor with CCC certification.
Protection level:IP55.Insulation level:F.
7)Guide rod-embedded steel is installed on the impeller,enhancing the reliability,
and effectively avoid shift during the process of nylon production.

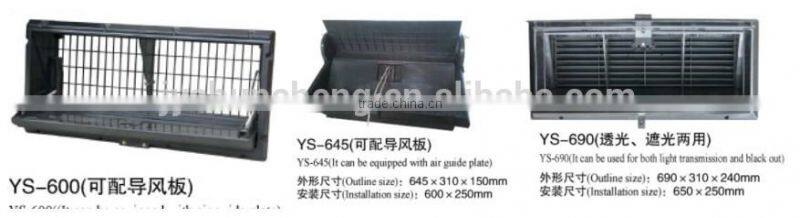

1)Made of excellent quality engineering plastic by injection molding,higher density and morefirmly.
2)With UV resistant additive, air inlet has stronger anti-aging ability,longer service life,better sealing,flexible opening,with anti-bird nets.
3)Double springs ensures excellent sealing.
PARAMETER

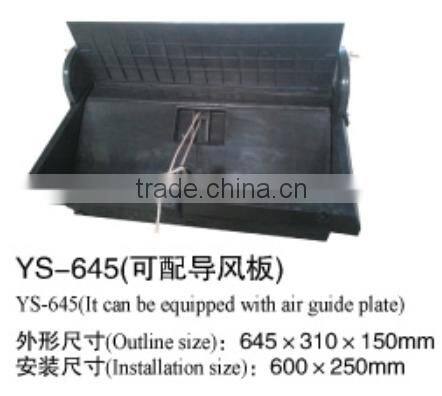

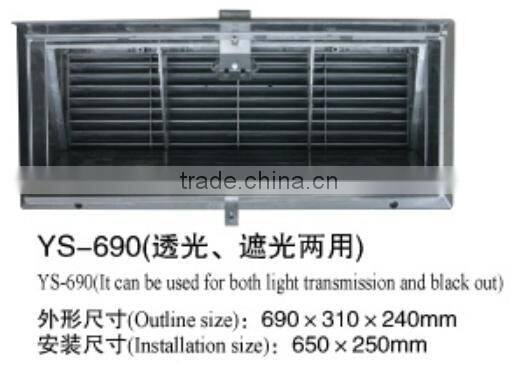

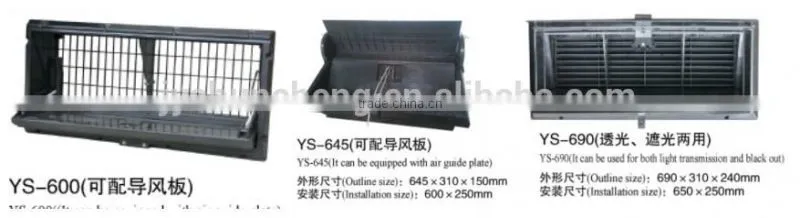

| MODEL | YS600 | YS645 | YS690 |
| OUTLINE SIZE(MM) | 600*325*160 | 645*310*150 | 690*310*240 |
| INSTALLATION SIZE(MM) | 550*260 | 600*250 | 650*250 |

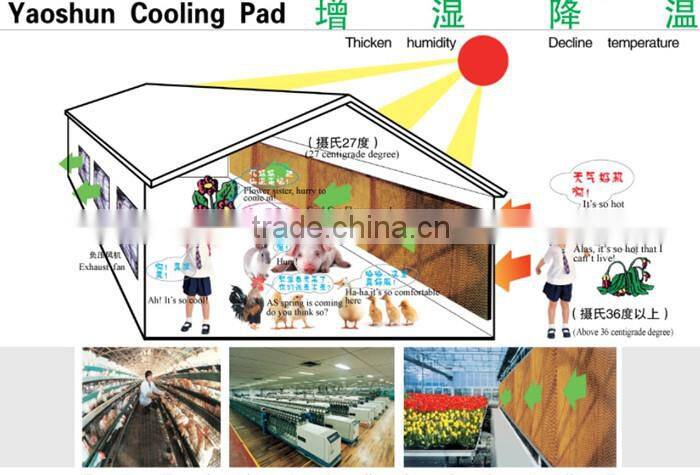

Functions of Yaoshun cooling pad
Generally speaking, the best environment for the growth of plant is in the temperature of 20-25℃ and in the humidity of 50-70℃. The high indoor temperature will make the plant be out of
condition or lead to the declination of the plants’ property and even make it die.
In the hot weather, the thermal conduction and heat radiation can make the temperature in the
greenhouse 10-20℃ higher than external temperature. The productive activities are hardly carried
normally under that hot condition. So, the effective cooling measure is the unique approach to
obtain high yield, high efficiency and stabilization.
The “cooling pad-exhaust fan” system of vertical ventilation is the most economical and effective
cooling measures for greenhouse in summer.
The long time experiences can testifies that, the “cooling pad-exhaust fan” system which is correctly installed can controls the temperature of greenhouse around 30℃ even in the most hot
weather,and decrease the loss of production caused by hot weather to minimum.
Yaoshun cooling pad is an ideal helper for you in summer.

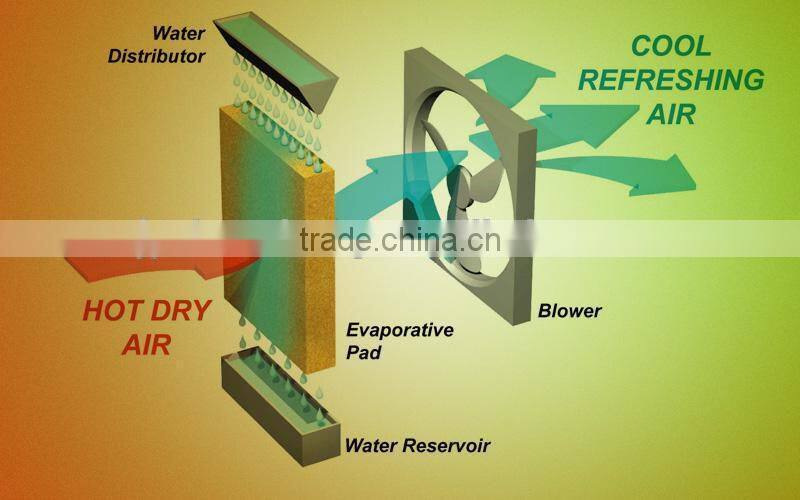

A fan and pad cooling system consists of a continuous row of cellulose pads along one wall. Water is distributed along the tops of the pads. Exhaust fans at the
opposite side evacuate hot air. As replacement air is drawn through the pads,
the outside air is cooled by evaporation by as much as 6 to 9 degrees.
Jiangyin Shuncheng airtreatment equipment co.,ltd was established in 2004 .Our core competencies is evaporative cooling pad and exhaust fan and our markets are all over the world. (WITH US YOUR MONEY IN SAFE YOUR BUSINESS IN SAFE).
Hope fully to be your honest dealer and trustworthy supplier in China.
