LMB35T Shrink Wrapper With Tray Auto Folding System (35 Packs/min.)
- Huangppu
- T/T
You May Like
-
LMB25T Shrink Wrapper With Auto Tray Forming (25 Packs per Min.)
-
Automatic Film Shrink Wrapping Machine With Pad
-
Automatic Printed Film Shrink Wrapping Machine (LMB25)
-
MMB60P Single Lane Shrink Wrapping Machine (60 Packs/min.)
-
PET Bottle Shrink Wrapping Machine Heat Tunnel Shrink Wrapping Machine (60 Packs/min.) MMB60T
-
MMB60 Intellighent PE Film Shrink Wrapping Machine (60 Packs/min.)
Product Details
| Condition | New | Application | Beverage, Chemical, Food, Medical | |
| Packaging Type | Bottles, Cans | Packaging Material | Plastic | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380v | Power | 79.2kw | |
| Place of Origin | Guangdong, China | Brand Name | VANTA | |
| Model Number | WSD-LMB35T | Dimension(L*W*H) | 12550mm*1650mm*2600mm | |
| Weight | 6.5T | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
http://youtu.be/n_UfYTPhqCc
1.General Description
The LMB series consists of Shrink Wrapping Machines packing PET, metal or glass containers.
The maximum productivity of LMB series shrink packers can be 45 packs per minute, but the practical value may vary based on the machine model and the product type. According to different shapes and sizes of the container, the pack collations commonly vary from 2x2, 3x2, 4x3 and 6x4.
Moreover, the machine can package products into the following patterns:
(1) Film only
(2) Film, with pad under bottles
(3) Film, with formed tray under bottles
(4) Printed film
2. LMB 35T Datasheet
Packing Speed | 35 packs per min. |
Packing Manner | Film+tray |
Machine Size | L12550mm*W1650mm*H2600mm |
Applied Bottle Size | Ø55-110mm, H80-320mm |
Packing Size | L200-530mm, W120-300mm, H80-320mm |
Energy Consumption | 79.2KW |
Film Size | Max. roll diameter: 500mm |
Inner diameter: 76mm |
3. LMB SERIES
Series No. | Packaging | Speed (Packs/min.) | Dimension (mm) |
LMB25 | Film Only | 25 | 8090*1650*2650 |
LMB25P | Film + Pad | 25 | 8090*1650*2650 |
LMB25T | Film + Tray | 25 | 9385*1650*2650 |
LMB35 | Film Only | 35 | 11275*1650*2650 |
LMB35P | Film + Pad | 35 | 11275*1650*2650 |
LMB35T | Film + Tray | 35 | 12555*1650*2650 |
LMB45 | Film Only | 45 | 11275*1650*2650 |
LMB45P | Film + Pad | 45 | 11275*1650*2650 |
LMB45T | Film + Tray | 45 | 12555*1650*2650 |
LMB60 | Film Only | 60 | 8090*1850*2650 |
LMB60P | Film + Pad | 60 | 8090*1850*2650 |
LMB80 | Film Only | 80 | 11770*1850*2650 |
LMB80P | Film + Pad | 80 | 11770*1850*2650 |

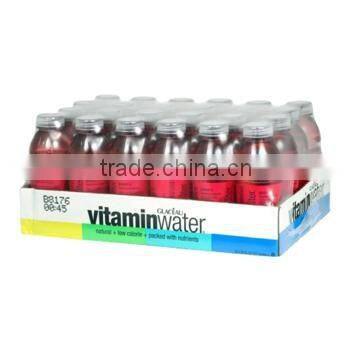

4. Finished Product:
