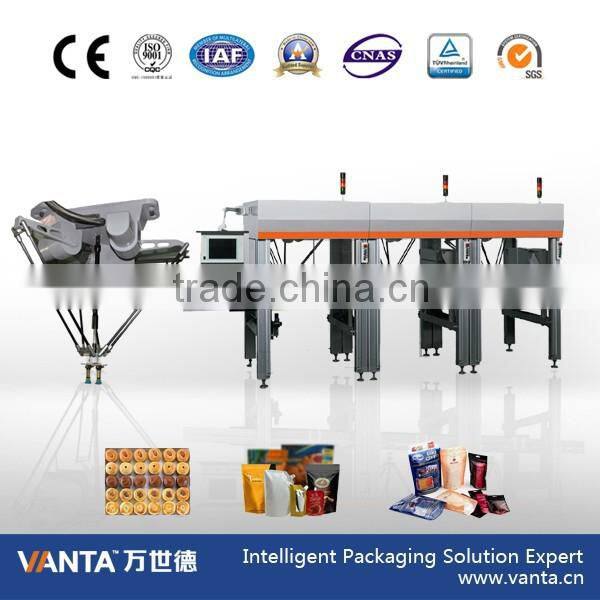

Delta Robot Case Packer (SP30)
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type:
Barrel, Cartons, Case
Payment & Shipping
Payment Methods:
Port of Shipment:
Huangpu
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Conventional Robot Palletizer Automatic Bottle Palletizer (160kg)NegotiableMOQ: 1 Set -
2016 New ! Mechanical Case Packer System Robotic Palletizer for Bag and Case (160kg)NegotiableMOQ: 1 Set
-
UV SterilizerNegotiableMOQ: 1 Set
-
Stand & Carbon Filter for Water TreatmentNegotiableMOQ: 1 Set
-
Nanofiltration System for Water TreatmentNegotiableMOQ: 1 Set
Condition
New
Application
Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type
Barrel, Cartons, Case
Packaging Material
Metal, Plastic, Wood
Automatic Grade
Automatic
Driven Type
Electric
Voltage
380V
Power
3KW
Place of Origin
Guangdong, China
Brand Name
VANTA
Model Number
SP30
Weight
80KG
Dimension(L*W*H)
1296*856*2490mm
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Product information
1. Description:
Delta robot, also known as parallel robot with three degrees of freedom and one rotational degree of freedom, is used in industrial packaging field. The robot packer grasps target objects by teaching program or visual system, determines the spatial position of the center gripper (TCP) by a servo axis three parallel, realizing rapid actions of grasping, sorting, packing, handling, processing. This pallet robot is mainly applied in the dairy, food, pharmaceutical and electronics industries, with features of light weight, small volume, high speed and positioning precision, low cost etc.
2. Equipment datasheet
3. Delta Robot packing features:
Delta robots are typical spatial three-DOF parallel mechanism, the overall structural is precise and compact. Drive parts are distributed in a fixed platform, it has the following characteristics:
2. Equipment datasheet
| Model | SP30 |
| Load | 1-3kg |
| Work scope | 1000mm |
| Axles | 4 |
| Z axles working height | 300mm |
| Repeat positioning accuracy | 0.1mm |
| 25-305-25 Cycle time | 0.6s/0.8s/1s |
| Maximum speed | 10m/s |
| Maximum acceleration | 10g |
| Machine weight | <80kg |
| Main application | Pick up material sorting handling packaging assemble |
| Visual system | Optional |
3. Delta Robot packing features:
Delta robots are typical spatial three-DOF parallel mechanism, the overall structural is precise and compact. Drive parts are distributed in a fixed platform, it has the following characteristics:
3.1 High carrying capacity and rigidity, small heavy-duty ratio, good dynamic performance;
3.2 DOF parallel manipulator structure, repeat positioning accuracy;
3.3 Ultra-high speed pick up items, one second multiple beats.
3.2 DOF parallel manipulator structure, repeat positioning accuracy;
3.3 Ultra-high speed pick up items, one second multiple beats.
4. Delta robot applications:

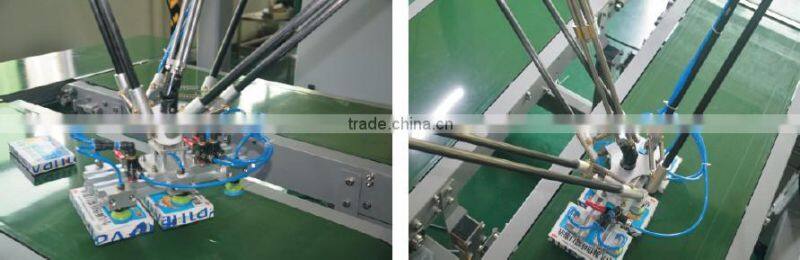

Delta robot application system mainly consists of three parts: robot, conveyor lines and robot mounting frame.
Robot is composed by the board, motor cover, rotation axis, the main manipulator, vice manipulator, catch composition.
5. Scope of work:
Delta robot's operating scope is determined by the length of the main and sub robotic manipulator, the radius of the moving platform and static platforms, as well as the active arm angle range of activities these parameters.

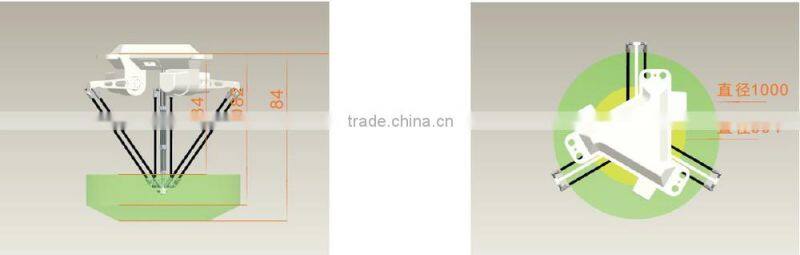

Take example of the 3 kg load Delta robots working range, as shown below.
