Super Intelligent Insulating Glass Production Line
US$ 30,000 - 70,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Machine Type:
Other, insulating glass line
Production Capacity:
15/Month
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Window Glass Making Machine Insulating Glass Double Glazed Window MachineUS$ 5,000 - 8,000MOQ: 1 Unit -
Window Glass Making Machine,dougle Glass Making Machine LineUS$ 1 - 50,000MOQ: 1 Set
-
Hot Melt Butyl Machine,Automatic Butyl Coating Machine for Double Insulating Glass Machine LineNegotiableMOQ: 1 Set
-
Insulating Glass Production Line Insulating Glass Machine Production LineUS$ 20,000 - 60,000MOQ: 1 Set
-
Super Intelligent Insulating Glass Line/IGVs Line to do Double and Triple Glazed Unit With LowE Washing/insulating Glass MachineNegotiableMOQ: 1 Set
Condition
New
Machine Type
Other, insulating glass line
Production Capacity
15/Month
Place of Origin
Shandong, China
Brand Name
PARKER
Model Number
IGV27W-S
Voltage
380V 50-60HZ
Power(W)
20.5KW
Dimension(L*W*H)
26000mm x 2800mm x 3500mm
Weight
5800kg, 5800kg
Certification
CE
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Super Intelligent insulating Glass production Line

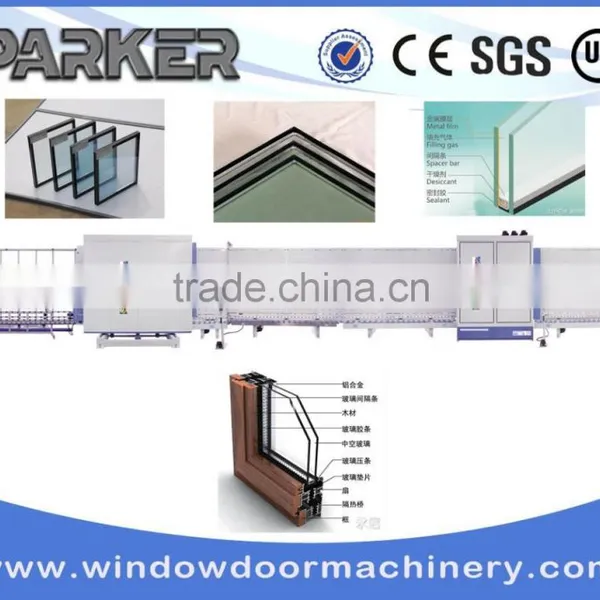

The insulating glass production line can process double glass, tripple glass, Low-e glass, stepped glass, coated glass, irregular glass etc.

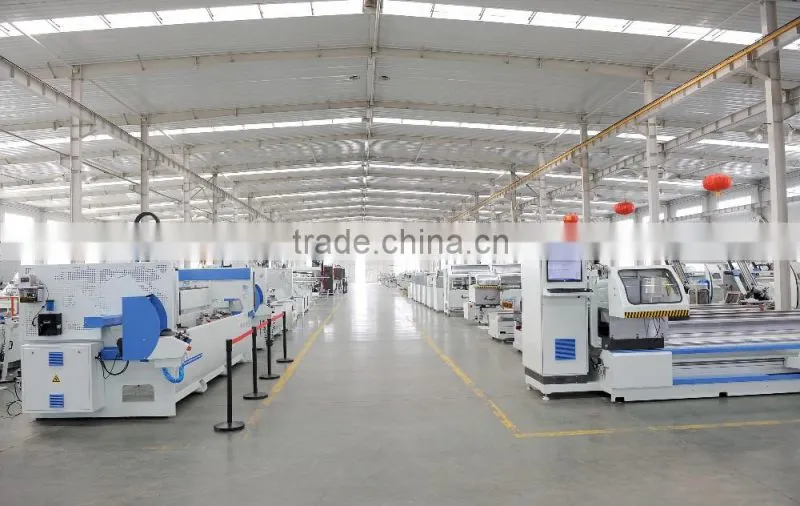

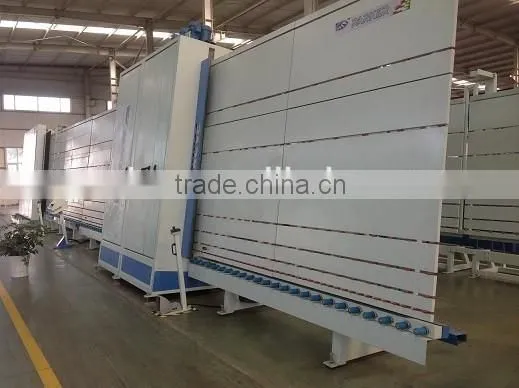

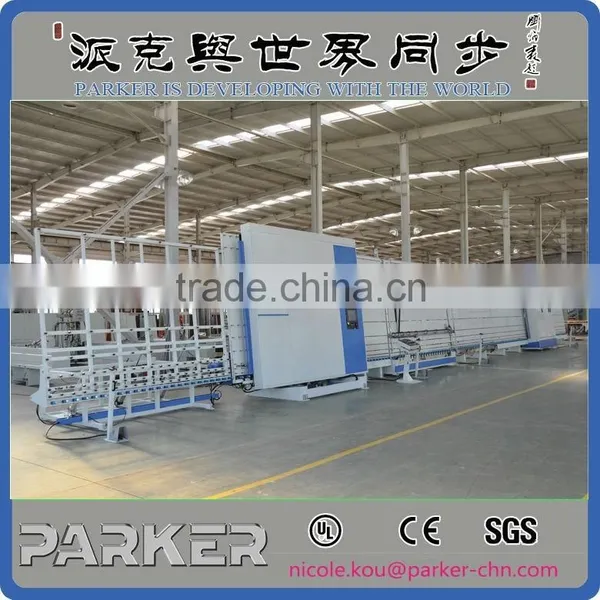

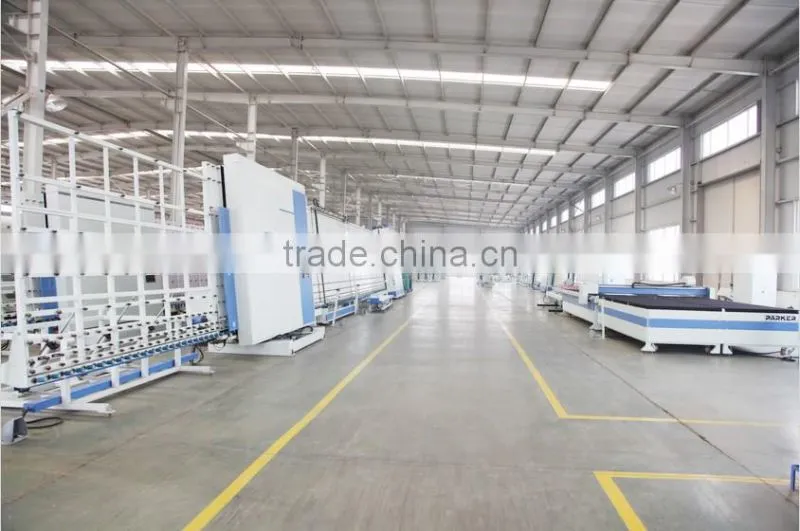

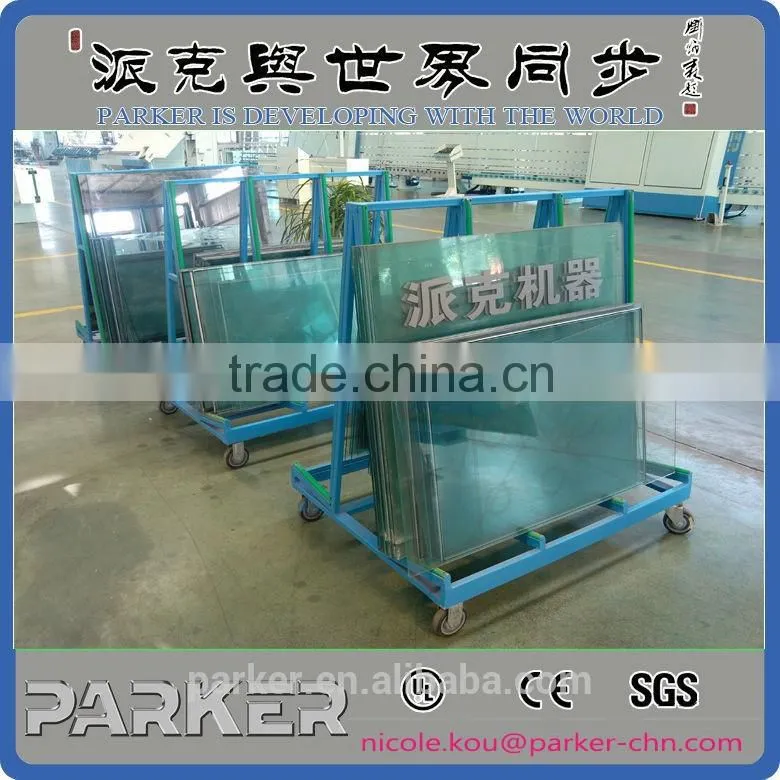

Photo:
Features
- Germanic technology is adopted in the whole line and main components are imported from world famous brand since it will be stable, convenient to maintain, and easy to handle.
- Insulating glass like standard glass, overlength glass, coated glass, low-E glass, big and small glass, step glass, special shape glass, triple glass, etc can be produced.

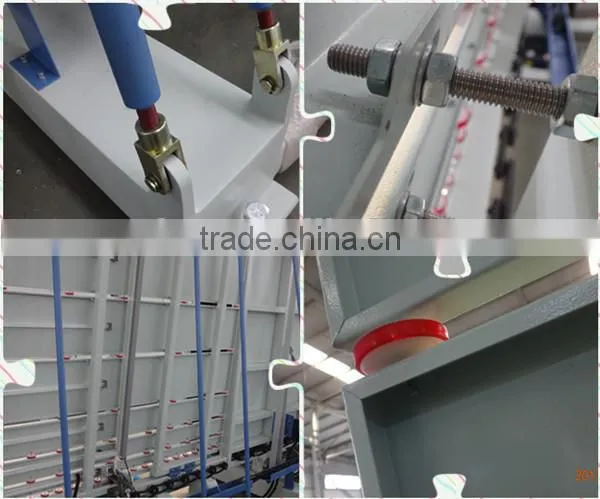

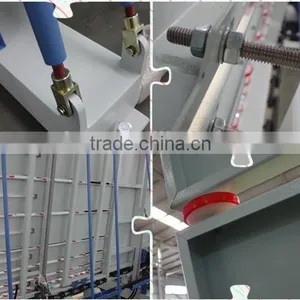

- The carbon steel plate with high strength and accuracy is adopted as the whole back plate, since it’s laser cut and CNC bent with high strength and easy to install.
- The convey part is equipped with safe guard for easier maintenance and safety.
- Germany industrial plastic(avoid getting rusty) bearings are used so there is no need to maintain daily.
- This machine adopts high pressure fan, equipped with special air knife with bigger angle others which can improve the drying effect. Multistage frequency conversion control is exclusively used, and multi-speed revolution optimization function can realize all kinds of size of glass movement.
- Big color touching screen can lively monitor working stage of each section, equipped with self-diagnosis function, easy to maintain, also with remote diagnosis function.
- This line has passed CE.
- This machine has self-diagnose system, easily check the error.
- It can identify the Low-E glass and coating glass automatically. So it can stop the first hard brush automatically protecting the glass from scratching.
- The PLC and proximity switch adopt Schneider imported for France.
- It has high precision and works steadily. Because we adopt the screw and flat press.
- Servo driver and servo motor imported from France can control glass-combining precisely.
- This machine adopts inverter control transmission motor. So it can easily slow down and accelerate.
- This machine adopts advanced glass aluminum installation positioning system, can realize adjustment of making silicone, positioning accurately and easily.
-

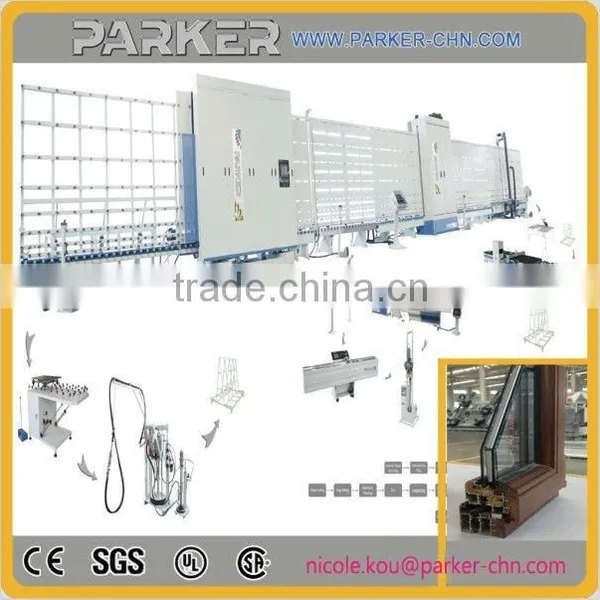

The machine can connect with Film Removing Machine and Two-component Coating Machine freely.
-
Parameter:
Voltage:380V 50-60HZ
Power:20.5KW
Air pressure:0.5-0.8Mpa
Air consumption:200L/min
Max. process dimension:2700mm x 3500mm(for first assembling)2700x5400mm(for twice assembling)
Min. process dimension:250mm x 380mm
Max. thickness:60mm
Washing Glass Thickness:3-12mm
Convey speed:12-50m/min
Cleaning Speed:0-8m/min
Max. processing speed:40m/min
Overall dimension:26000mm x 2800mm x 3500mm
Weight:5800kg
