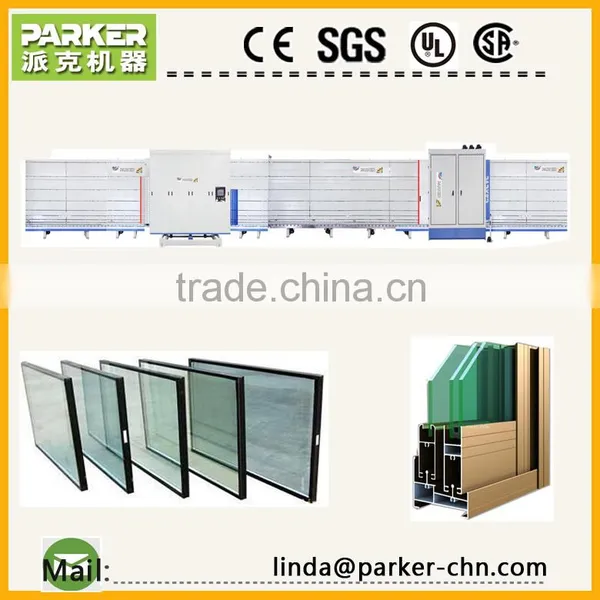

Automatic Insulating Glass Production Line Similar as Lisec Machine
- 25 Unit / Units per Month
- FOB Qingdao Port
- T/T Credit Card
Product Details
| Condition: | New | Machine Type: | Glass Coating Machine | Production Capacity: | 1200 pieces per shift |
| Place of Origin: | Shandong, China | Brand Name: | PARKER | Model Number: | TCC300A |
| Voltage: | 380/220/110 V etc | Power(W): | 50Hz | Dimension(L*W*H): | 1100mm x 950mm x 1630mm |
| Weight: | 600kg | Certification: | CE | Warranty: | lifetime |
| After-sales Service Provided: | Overseas service center available |
Product Description
Automatic Insulating Glass Production Line Similar as Lisec Machine
Model: TCC300A
Features:
♦ This is a special purpose and machine spreading two-part polg sulfide sealant when making aluminum groove type insulating glass and curtain wall glass.
♦ The main and auxiliary pumps activated by hydraulic lubrication oil and compressed air, controlled by no-touch-point electric control system, is smooth to run, flexible and reliable to change direction, continuous and stable to produce sealant, high in efficiency and convenient to use and maintain, so it is one of the most important equipment to make aluminum groove type insulating glass and curtain glass.
♦ Most of the parts on the machines are imported.
Parameter:
♦ Voltage: | 380V 50HZ |
♦ Power: | 1.1KW |
♦ Air pressure: | 0.5-0.8Mpa |
♦ Air consumption: | 0.6L/min |
♦ A pump pressure plate size: | Φ565 (50 gallon barrel) |
♦ B pump pressure plate size: | Φ285 (5 gallon barrel) |
♦ Mixed rate: | 100:6.5-100:14.5 |
♦ Overall dimension: | 1100mm x 950mm x 1630mm |
♦ Weight: | 600kg |
♦ Glue type: | SILICON,SULFIDE,URETHANE |
Other Glass Machine:
Factory:
Samples:
Exhibitions:
Factories of Customers:
Customers Visit:
Parker Service Team:
Packing & Loading:
