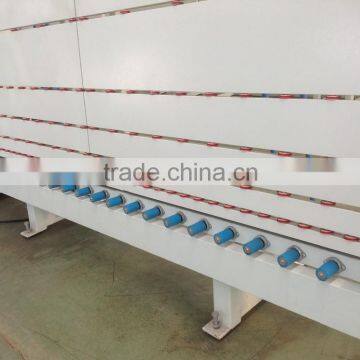

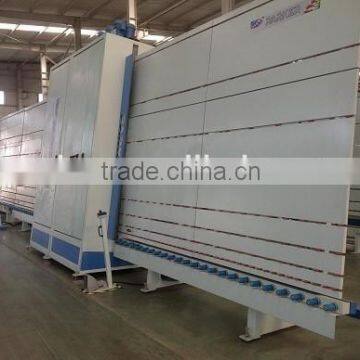

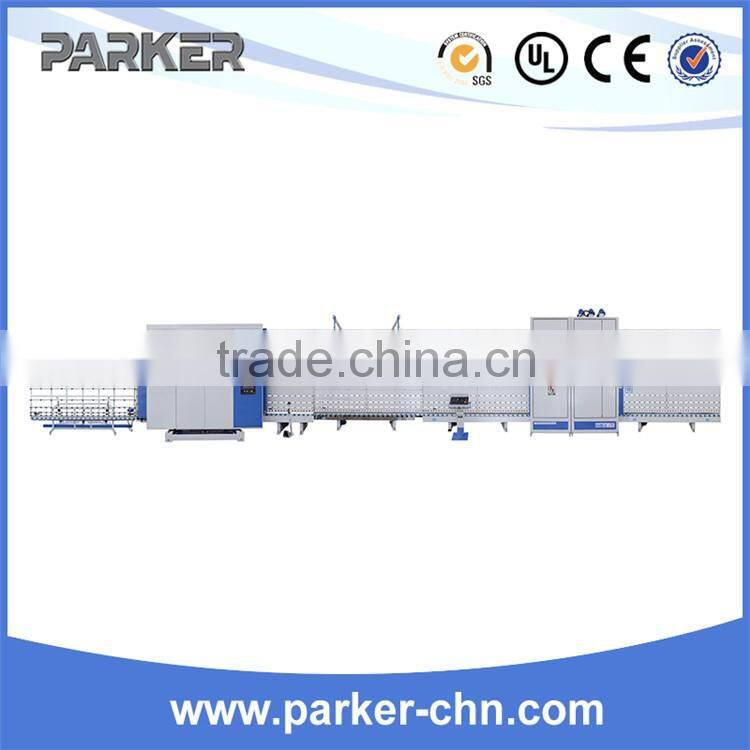

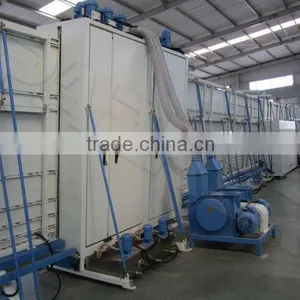

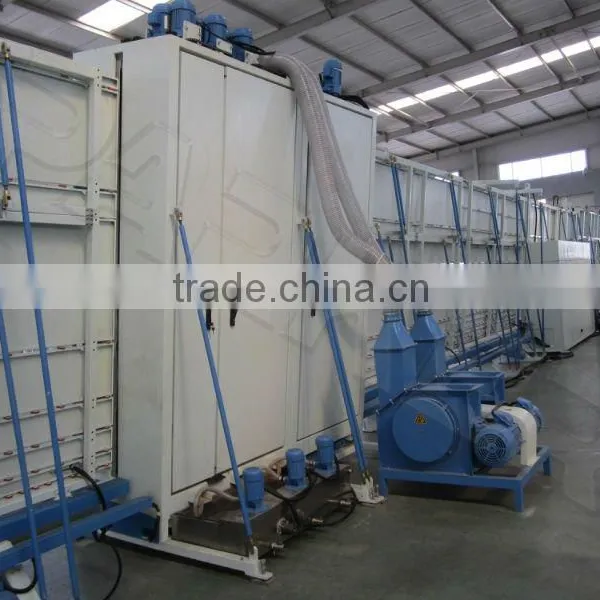

Help CenterVertical Automatic Flat Process Insulating Glass Produce Line IGV25-S
Related Products
-
Global Supplier of Insulating Glass Processing Equipments IGV27W-SNegotiableMOQ: 1 Set -
Cnc Glass Cutting Production Line for Furniture Glass From PARKERNegotiableMOQ: 1 Set
-
Cnc Tempered Glass Cutting Machine for Architectural GlassNegotiableMOQ: 1 Unit
-
2016 Best Sale China Manufacture Automatic Cnc Glass Cutting MachineUS$ 78,000 - 80,000MOQ: 1 Unit
-
Automatic Flat Press Insulating Glass Produce Line/glass Processing MachineryNegotiableMOQ: 1 Unit
Main feature:
1. Adopt imported low power electric components, sensor and PLC auto-controlling system.
2.Operator can input glass unit continuously with high work effeciency.
3.Touching screen is imported originally. It is easy to operate. The process and fault can be shown motively.
4.It is controlled by energy-saving,punctuated and automatic system. The inspecting and combining speed up when other non working parts are intelligent-asleep.
5.This appliance can produce steped glass unit.
| Technique Parameter | |
| Power supply | 380V (3P+N) |
| Frequency | 50-60 Hz |
| Total power | 23.7 KW |
| Working air pressure | 0.5~0.8 Mpa |
| Air consumption | 160 L/min |
| Wshing speed | 8~12m/min |
| Max. working speed | 40m/min |
| Processing insulating glass size | 250x480mm(Min.glass size of one time assembling) |
| 2500x3300mm(Max. glass size of one time assembling) | |
| 2500x3300(Max. glass size of twice assembling) | |
| Processing type of glass | Float Coated |
| Processing thickness of insulating glass | 12~60mm |
| Wahsing one piece glass thickness | 3~12mm |
| Working height | 485±50mm |
| Angle of inclination | 6° |
| Make depth of gun | 0~20mm |
| Working direction | Right-Left or Left-Right |
| Size difference between stepped glass | 0~50mm(Horizontal),0~250mm(Vertical) |
| Pressing method | Screw Assembling |
| Overall dimension | 22800mmx2800mmx3400mm |
| Total weight | 5100 KGS |

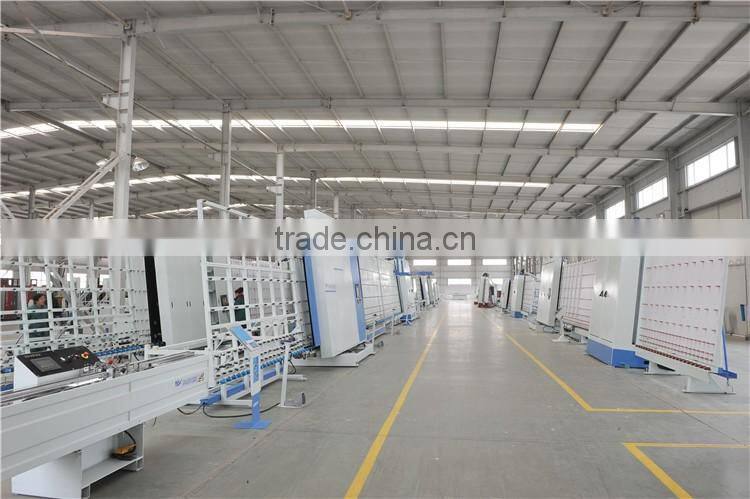

Founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.
During the past few years, Parker has made great progress and has become well known and outstanding in domestic fairs for window door machinery. With advanced technological equipment, tremendous technical strength and reliable product quality, our window and door equipment has been well received by customers from Russian, Kazakhstan, Vietnam, Iran, etc. We have a perfect sales network and complete service system in China. We are also taking a leading role in setting branch companies abroad.
1.Sample service:
Engineer available overseas
2. Customized service:
Free industrial information, free investment analysis for windows, doors, and curtain wall project, free layout design for window, and door and curtain wall product line.
3.After sales service:
One year guarantee
Free adjustment
Free training to operation and maintenance workers
Provide quick supply of spare parts for window and curtain wall companies.
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? Can I visit there?
Our factory is located in Jinan City, Shandong Province, China, near to Jinan and Qingdao. You are warmly welcomed to visit us!
3. Q: How does your factory do regarding quality control?
We have strict control in testing of raw material, production process and final process. Only qualified products can be sent out.And we have passed ISO,CE certificate.
4.Q:What you can do if my machines have problems?
a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines
5. Q: If OEM available?
Answer: Yes, as we usually do.
6. Q: What are your company normal payment Terms?
Answer: We accept T/T (30% T/T prepaid before production, 70% T/T prepaid before shipment)
