Home > Products > Water Circulatinjg Vacuum Pump > SHB-IV A Type Small Vacuum Pump to Vacuumize
SHB-IV A Type Small Vacuum Pump to Vacuumize
- shanghai tianjin dalian
- T/T
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | zhengzhou great wall | |
| Model Number | SHB-IV | Theory | Vacuum Pump | |
| Structure | Other, liquid ring vacuum pump | Usage | Air Pump | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, electricity | Pressure | Low Pressure | |
| Application | Other, provide vacuum environment |
Product Description
Specifications
SHB-IV type small vacuum pump to vacuumize1.tank capacity18 L
2.flow 80 L/min
3.max. vacuum degree 0.098 MPa
4.taps No, 4
SHB-IV A Type Small Vacuum Pump to Vacuumize
I. Introduction of SHB-IV A Vacuum Pump:
Our company has independent intellectual property right (Patent No.: 02326872.7; 02228289.0)

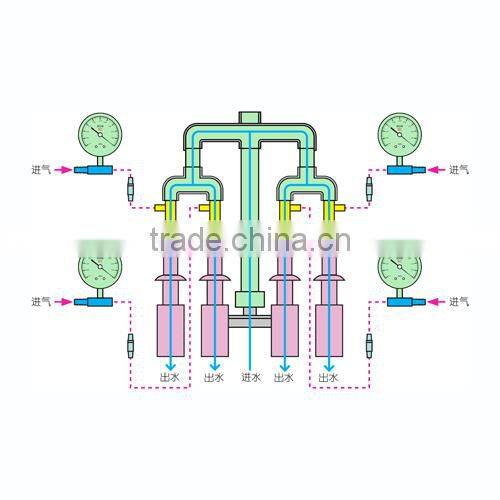

II. Working Principle of SHB-IV A Vacuum Pump:
SHB-IV A takes circulating water as working fluid, uses the negative pressure created by fluid jet to eject.
III. Features of SHB-IV A Vacuum Pump:
♦Multi-purpose vacuum pump with the same dieder.
♦The expansion of SHB-III type, the characteristics and material are the same as SHB-III type.
♦Four taps vacuumize at the same time, four gauges display, independently of each other, experiments can be conducted by four operators simultaneously, which can reduce the laboratory cost.
♦Be convenient for the teacher to demonstrate visually and monitor the experiment directly, meanwhile, the student can start and shut down the machine at any side.
IV. Technical Data of SHB-IV A Vacuum Pump:
Model | SHB-IV A |
Power(W) | 250 |
Power supply(V/Hz) | 220/50 |
Flow(L/min) | 80 |
Lift(m) | 10 |
MaximumVacuumDegree(MPa) | 0.098 (20mbar) |
Single Tap Air Sucking Amount(L/min) | 10 |
Single Tap Air Sucking Amount(A) | 4 |
Safety functions | Check valve |
Capacity of water storage tank(L) | 18 |
Materials of Water Tank | PP |
Dimensions(mm) | 470L×260W×516H |
Weight(kg) | 17 |

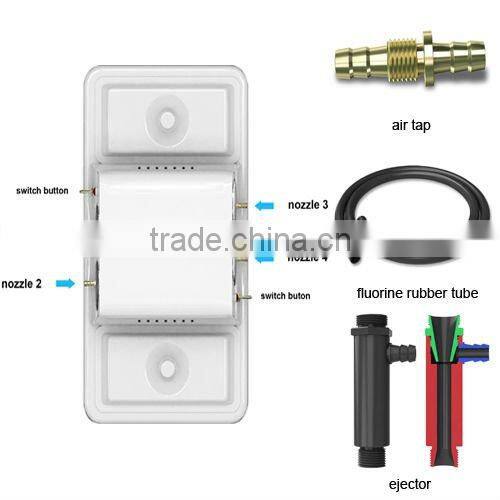

V. Components of SHB-IV A Vacuum Pump:
VI. ISO 9001: 2008 Certificate:
VII. Workshop of Water Circulating Vacuum Pump:
