Specifications
electric elevation industrial rotary evaporatordigital display temp&speed
GB/T&ISO certificate
volume 0.5-50L
PTFE seal
electric elevation industrial rotary evaporator
Brief introduction of rotary evaporator:
1. Large capacity, large diameter rotary evaporator flask, evaporation area, the vacuum water bath, while rotating edge heating, evaporation of the solution diffusion efficiency can be used for biological, pharmaceutical, chemical, food and other small scale areas, Chinese and production.
2. Rotary Evaporators with recycled water multi-use vacuum pumps, diaphragm pumps, low temperature cycle (vacuum) pumps, circulating cooler, constant temperature circulator, low temperature cooling liquid circulating pump and other devices supporting component systems.
Features of rotary evaporator:
1. Teflon (PTFE) and fluorine rubber dual rotating seal, patented technology to ensure high vacuum.
2. the introduction of foreign advanced frequency control system, temperature control system, accurate and reliable.
3. a vacuum switching valve, without affecting the system vacuum distillation of the situation and the solution can be continuously collected.
4. water bath electric lift and manual lift support, easy to use.
5. PTFE discharge valve, corrosion resistance, pollution-free.
6. We manufacture 500ml/ 1L/ 2L/ 5L/ 10L/ 20L/ 50L ( explosion-proof ) rotary evaporators optional.
Technical data:
Model |
R-1001-VN |
R-1001-LN |
R-1002-VN |
R-1002-LN |
Rotary speed(Rpm) |
10-180 |
|||
Evaporating speed(ml/min) |
20 |
|||
Achievable vacuum(Pa) |
399.9 (below 3mmHg) |
|||
Temperature range(°C) |
Room temp-100 |
|||
Temperature display |
Keypad input Digital display |
|||
Speed-setting |
Knob setting ,Digital display |
|||
Safety functions |
Insurance |
|||
Functions of lifting table |
Weight balancing Gliding elevating+ manual lifting |
Weight balancing |
||
Rotary motor(W) |
25 |
|||
Heater wattage(KW) |
1.5 |
|||
Condenser model |
Vertical type water refrigerating |
Lean type water refrigerating |
Vertical type water refrigerating |
Lean type water refrigerating |
Rotary bottle(L) |
0.5-2 |
|||
Collecting bottle(L) |
1 |
|||
Vacuum sealing |
Double sealing rings made of Teflon+ Vinton materials |
|||
Water Bath size and volume(L) |
φ260×140·7.4 |
φ240×142·6.3 |
||
Elevating stroke(mm) |
100+150 |
120 |
||
Ambient temperature(°C) |
5-35 |
|||
Dimensions (mm) |
560L×320W×660H |
750L×320W×540H |
560L×320W×660H |
750L×320W×540H |
|
Weight (kg) |
9.5 |
8.5 |
||
Power Supply(V/Hz) |
220/50 |
|||

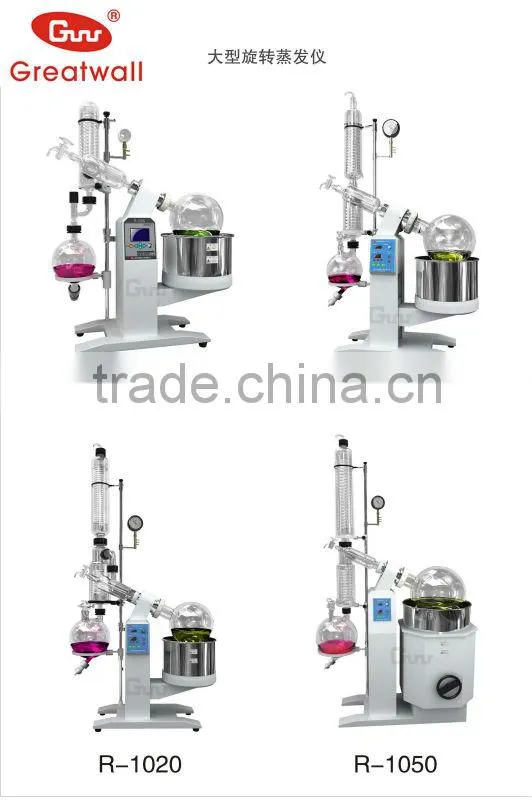

Model |
R-1005 |
R-1010 |
R-1020 |
R-1050 |
|||
Rotary Bottle |
5L,diameter of flange opening: Φ50mm |
10L,diameter of flange opening:Φ95mm |
20L, diameter of flange opening:Φ95mm |
50L,diameter of flange opening:Φ125mm |
|||
Collecting bottle |
3L |
5L |
10L |
20L |
|||
Speed-regulationj ofmain machine |
Digital display, variable frequency, stepless Speed-regulation |
||||||
Rotary speed of mainMachine |
10to140r/min,digital display of rotary speed |
10to130r/min,digital display of rotary speed |
10to130r/min,digital display of rotary speed |
10to110r/min,digital display of rotary speed |
|||
Rotaring motor (W) |
40W AD induction motor,power:40W |
90W AD induction motor,power:90W |
180W AD induction motor,power:180W |
180W AD induction motor,power:180W |
|||
Condensing tube |
Vertical type water refrigerating |
Standing, main+auxiliary cooling and highly effcient3 circulating coldtrap |
|||||
Heating boiler |
stainless water bath |
||||||
Temperature control |
Digital display, temperature control,0~99°C |
||||||
Achievable vacuum |
399.9Pa (below 3mmHg) |
||||||
Evaporating capability |
Water≥2L/h Alcohol≥6.5L/h |
Water≥3.2L/h Alcohol≥6.5L/h |
Water≥5L/h Alcohol≥11L/h |
Water≥9L/h Alcohol≥19L/h |
|||
Elevating function |
Electric elevation |
Electric elevation |
Electric elevation |
Electric plus manual lifting |
|||
Elevating stroke |
0~150mm |
0~160mm |
0~190mm |
0~230mm |
|||
Rated power supply |
220V/50Hz |
380V/50Hz |
|||||
Power of power supply |
2.2KW |
4.8KW |
6.3KW |
8.3KW |
|||
Dimensions (mm) |
765L*400W*1070H |
920L*550W*1700H |
1250L*600W*2100H |
1320L*770W*2340H |
|||

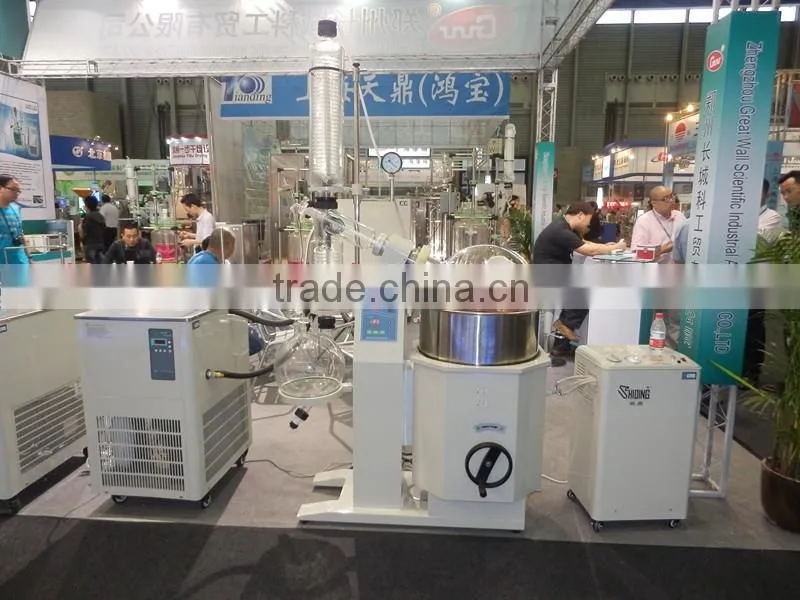

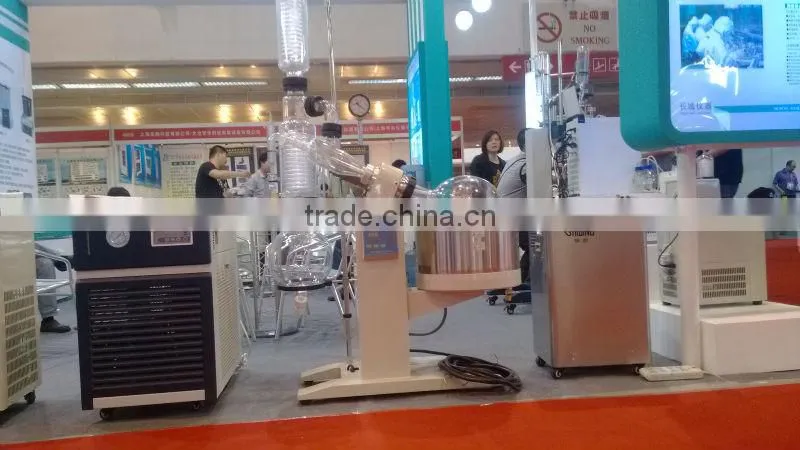

Fairs:

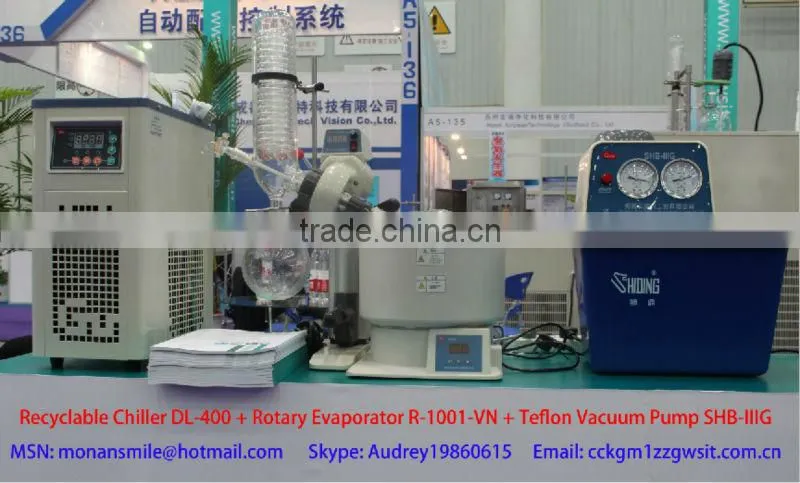

Recyclable Chiiler DL-400 + 0.5~2L Rotary Evaporator R-1001-VN + Spray Paint Teflon Electric Circulation Aspirator Pump SHB-IIIG
Recyclable Chiller HL-3000 + 20L Rotary Evaporator R1020 + Spray Paint Teflon Electric Circulation Aspirator Pump SHB-B95T
Refrigerated Circulator DLSB-50/30 + 50L Rotary Evaporator R1050 + stainless Steel Electric Circulation Aspirator Pump SHB-B95A
ISO 9001: 2008 Certificate:
Zhengzhou Great Wall
