Specifications
0.5-2 L rotary bottle mini rotary evaporator1.PTFE seal
2.rotary bottle 0.5-2L
3.vertical & lined
4.GB/T&ISO certificate

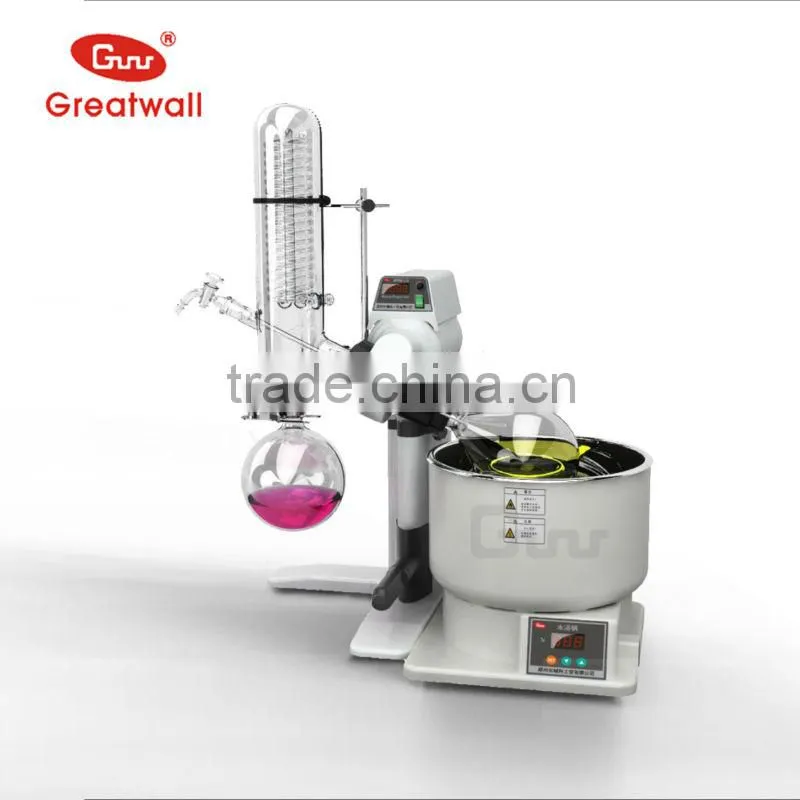

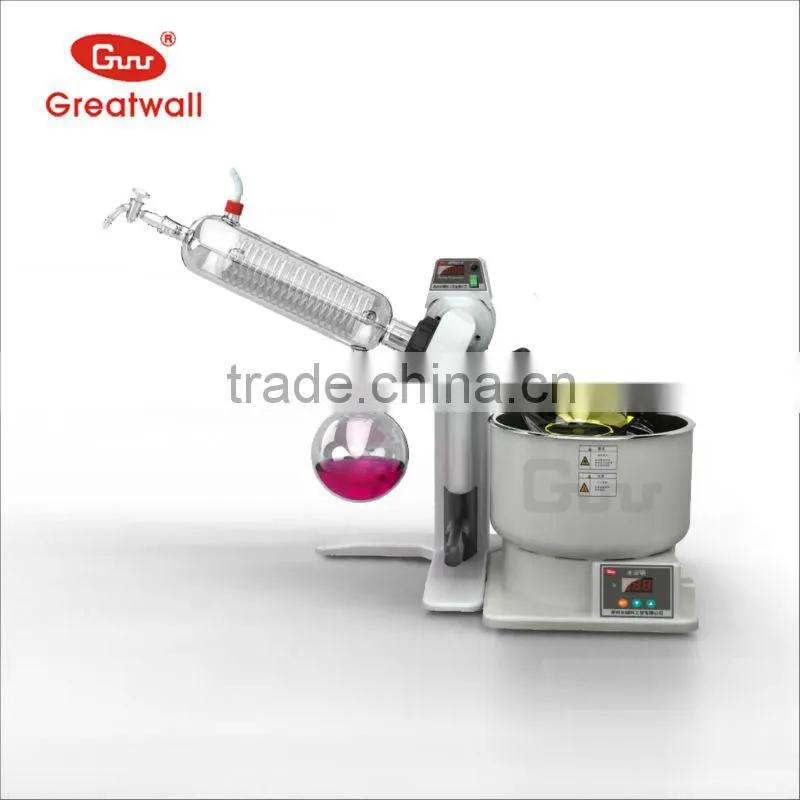

0.5-2 L rotary bottle mini rotary evaporator
Introduction of mini rotary evaporator:
1. The equipment for purification distillation test rotates and shapes a thin film in negative pressure condition by heating, evaporates efficiently, and then condenses and recollects solvent to purify and separate.
2. The products can be made into system devices with Multi-purpose Circulating Water Vacuum Pump, Diaphragm Vacuum Pump, Low Temperature Circulating(vacuum)Pump, Circulating Cooler, Constant Temperature Ccirculator, Low Temperature Ccooling Lliquid Circulating Pump.

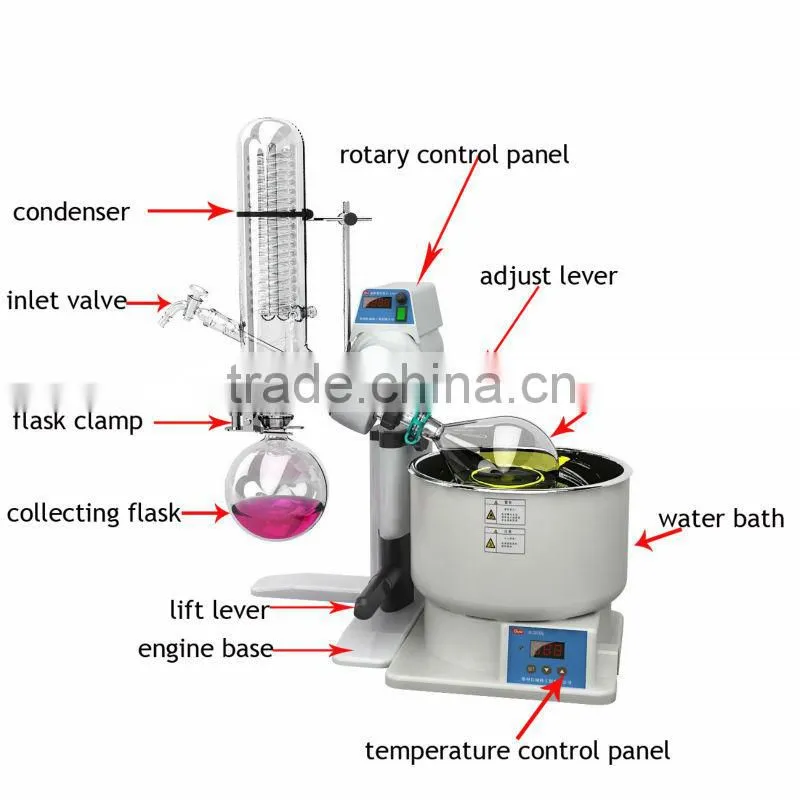

Structure:
Features of mini rotary evaporator:
1. Double sealing with Teflon(PTFE) and fluorous rubber to ensure high vacuum degree.
2. The air extraction nozzle of condenser is set down, and it is safer after connection with vacuum pipe.
3. Building block design is easily to be extended.
4. Easy operation of lifting, move up and down smoothly and easy to lock.
5. Dedicated electric machinery, worm and gear drive steadily.
6. Speed display ,operate visually and easily
7. The temperature adopts PID control, which ensures accurate temperature control.
8. The separation of bath and the mainframe makes configure flexible.
9. We manufacture 500ml/ 1L/ 2L/ 5L/ 10L/ 20L/ 50L ( explosion-proof ) rotary evaporators optional.
Technical data:
Model |
R-1001-VN |
R-1001-LN |
R-1002-VN |
R-1002-LN |
Rotary speed (Rpm) |
10~180 |
|||
Evaporating speed(ml/min) |
20 |
|||
Achievable vacuum(Pa) |
399.9 (below 3mmHg) |
|||
Temperature range(°C) |
Room temp~100 |
|||
Temperature display |
Keypad input Digital display |
|||
Speed-setting |
Knob setting ,Digital display |
|||
Safety functions |
Insurance |
|||
Functions of lifting table |
Weight balancing Gliding elevating+ manual lifting |
Weight balancing |
||
Rotary motor(W) |
25 |
|||
Heater wattage(KW) |
1.5 |
|||
Condenser model |
Vertical type water refrigerating |
Lean type water refrigerating |
Vertical type water refrigerating |
Lean type water refrigerating |
Rotary bottle(L) |
0.5~2 |
|||
Collecting bottle(L) |
1 |
|||
Vacuum sealing |
Double sealing rings made of Teflon+ Vinton materials |
|||
Water Bath size and volume(L) |
φ260×140·7.4 |
φ240×142·6.3 |
||
Elevating stroke(mm) |
100+150 |
120 |
||
Ambient temperature(°C) |
5~35 |
|||
Dimensions (mm) |
560L×320W×660H |
750L×320W×540H |
560L×320W×660H |
750L×320W×540H |
Weight(kg) |
9.5 |
8.5 |
||
PowerSupply(V/Hz) |
220/50 |
|||
Fairs:
Recyclable Chiiler DL-400 + 0.5~2L Rotary Evaporator R-1001-VN + Spray Paint Teflon Electric Circulation Aspirator Pump SHB-IIIG
Recyclable Chiller HL-3000 + 20L Rotary Evaporator R1020 + Spray Paint Teflon Electric Circulation Aspirator Pump SHB-B95T
Refrigerated Circulator DLSB-50/30 + 50L Rotary Evaporator R1050 + stainless Steel Electric Circulation Aspirator Pump SHB-B95A
ISO 9001: 2008 Certificate:
