-15 ~ Room Temperature Refrigeration Recyclable Chiller Matched With Mini Lab Rotary Vacum Evaporator ( Agent Wanted )

-15 ~ Room Temperature Refrigeration Recyclable Chiller Matched With Mini Lab Rotary Vacum Evaporator ( Agent Wanted ) photo-1
US$ 825 - 1,032 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Air-Cooled
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai tianjin dalian etc.
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Air-Cooled
Place of Origin Henan, China
Brand Name Zhengzhou Great Wall
Model Number DL-400
Cooling Capability(kw) 500W
Voltage 220V
Dimension(L*W*H) 405LX225WX560H
Certification Other, ISO 9001: 2008 Certificate
Warranty one year

Specifications

refrigeration recyclable chiller
1. -15 ~ room temp
2. 400W cooling capacity
3. -15 ~ room temperature

-15 ~ Room Temperature Refrigeration Recyclable Chiller Matched with Mini Lab Rotary Vacum Evaporator



-15 ~ Room Temperature Refrigeration Recyclable Chiller Matched with Mini Lab Rotary Vacum Evaporator ( Agent Wanted )





 USE





          Especially for small Rotary Evaporator with easonable design and delicate figure which can effectively save space. It can be used on worktable or ground.







CHARACTERISTICS





1. Circulating joint nozzle can circumvolve for 360°C. Easy to make any system connection.



2. All parts connecting with secondary refrigerant adopt stainless steel (SUS standard) and macromolecule anti-rot substance.



3. Cooling compressors adopt products made in Japan with high reliability and can work for a long time.



4. Combine with Rotary Evaporator and Vacuum Pump to form a complete small experimental facility.



 Parameters:





Model

DL-400

DL-1000

DL-3000

DL-5000

Bath volume(L)

3

10

35

35

Temperature range(°C)

-15-Room temp

Materials of stored liquid bath

304

Coolingcapacity(W)

400

1000

3000

5000

Flow(L/min)

22

30

33

33

Lift(m)

1.2

10

14

14

Overall Power(W)

500

1380

1770

3000

PowerSupply(V/Hz)

220/50, 220/60 Optional

PowerSupply(mm)

405L×225W×560H

505L×365W×790H

740L×640W×880H

820L×690W×1110H

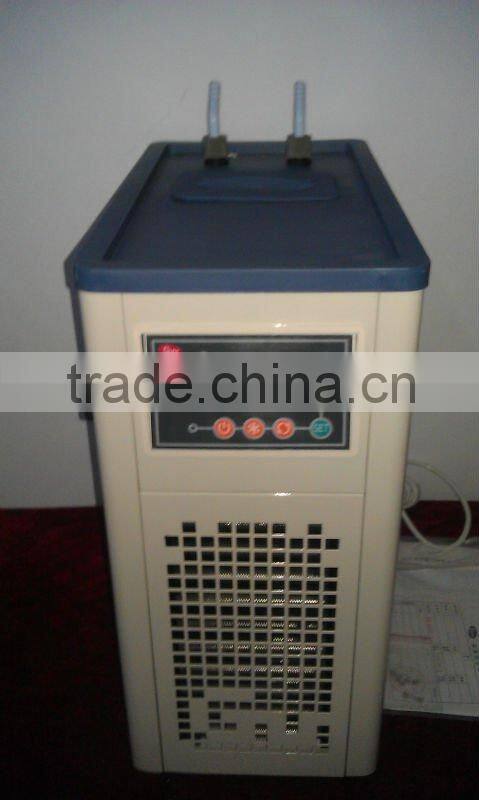

Partial Pictures of DL-400:



-15 ~ Room Temperature Refrigeration Recyclable Chiller Matched with Mini Lab Rotary Vacum Evaporator ( Agent Wanted )



-15 ~ Room Temperature Refrigeration Recyclable Chiller Matched with Mini Lab Rotary Vacum Evaporator ( Agent Wanted )



-15 ~ Room Temperature Refrigeration Recyclable Chiller Matched with Mini Lab Rotary Vacum Evaporator ( Agent Wanted )

Recommended complete set:

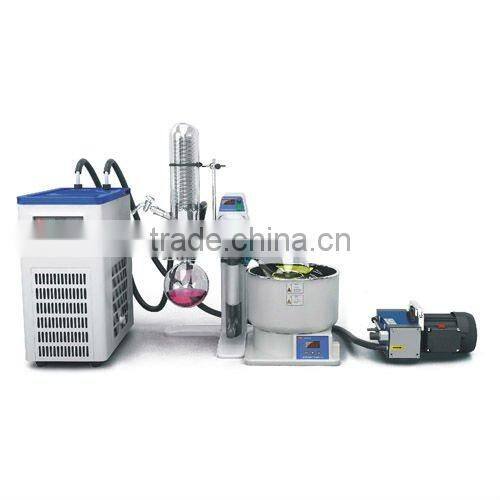

refrigeration recyclable chiller + lab mini rotary evaporator + diaphragm vacuum pump MP-201

-15 ~ Room Temperature Refrigeration Recyclable Chiller Matched with Mini Lab Rotary Vacum Evaporator ( Agent Wanted )

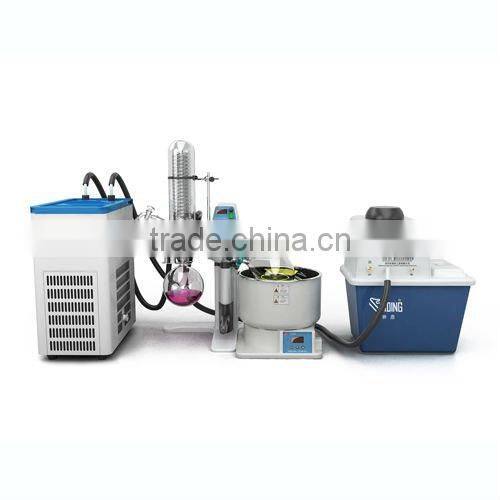

refrigeration recyclable chiller + lab mini rotary evaporator + watere recirculating multi-purpose vacuum pump SHB-III





-15 ~ Room Temperature Refrigeration Recyclable Chiller Matched with Mini Lab Rotary Vacum Evaporator ( Agent Wanted )
