DL-5000 Refrigeration Capacity Recyclable Coolers

Specifications

DL-5000 is especially used for small Rotary Evaporator with reasonable design and delicate figure.

I :CHARACTERISTICS OF USES



Especially for small Rotary Evaporator with reasonable design and delicate figure which can effectively save space. It can be used on worktable or ground.

    Circulating joint nozzle can circumvolve for 360°C. Easy to make any system connection.

    All parts connecting with secondary refrigerant adopt stainless steel (ANSI standard) and macromolecule anti-rot substance.

    Cooling compressors adopt products made in Japan with high reliability and can work for a long time.

    Combine with Rotary Evaporator and Vacuum Pump to form a complete small experimental facility.



II : Technical data

Model	Bath volume (L)	Temperature range(°C)	Materials of stored liquid bath	Cooling capacity(W)	Flow(L/min)	Lift(m)	Overall Power(W)	Power Supply(V/Hz)	Power Supply(mm)
DL-400	3	-15- Room temp	1Cr18Ni9Ti	400	22	1.2	500	220/50	405L×225W×560H
DL-1000	10			1000	30	10	1380		505L×365W×790H
DL-3000	35			3000	33	14	1770		740L×640W×880H
DL-5000	35			5000	33	14	3000		820L×690W×1110H



III: Logo and Certificate of DL-5000 Refrigeration Capacity Recyclable Coolers

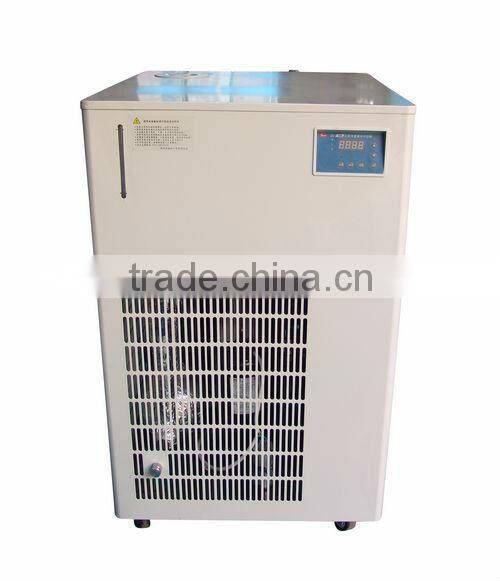

IV: Pictures of DL-5000 Refrigeration Capacity Recyclable Coolers

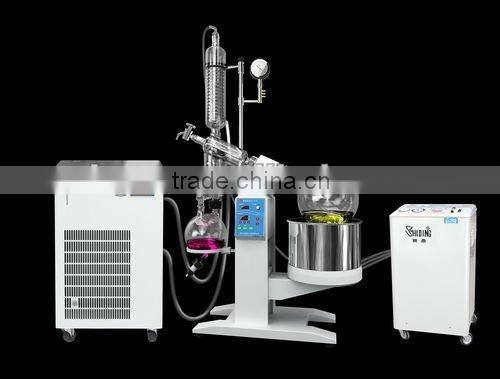

V: Matching Instrument (DL-5000 Refrigeration Capacity Recyclable Coolers + R-1050  Rotary Evaporator + SHB-B95/95A Type Water Circulating Multi-purpose Vacuum Pump
