Specifications
DL 400 recirculating chiller -15-room tempoling capacity 400W
2.bath volume 3L
3.stainless steel
4.ISO certificate
DL 400 recirculating chiller -15-room temperature ( competitive price )
I. Introduction of DL-400 recirculation cooler:
Especially for small Rotary Evaporator with easonable design and delicate figure which can effectively save space. It can be used on worktable or ground.
II. Features of DL-400 recirculation cooler:

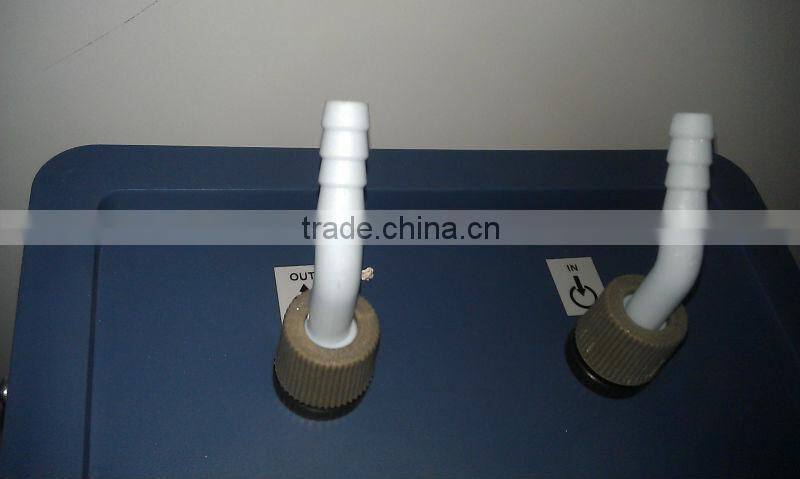

♦Circulating joint nozzle can circumvolve for 360°C. Easy to make any system connection.
♦All parts connecting with secondary refrigerant adopt stainless steel (ANSI standard) and macromolecule anti-rot substance.
♦Cooling compressors adopt products made in Japan with high reliability and can work for a long time.
♦Combine with Rotary Evaporator and Vacuum Pump to form a complete small experimental facility.
III. Technical data:
Model | Bath volume (L) | Temperature range(°C) | Materials of stored liquid bath | Coolingcapacity(W) | Flow(L/min) | Lift(m) | Overall Power(W) | PowerSupply(V/Hz) | PowerSupply(mm) |
DL-400 | 3 | -15- Room temp | 1Cr18Ni9Ti | 400 | 17 | 2 | 500 | 220/50; 220/60 Optional | 405L×225W×560H |
DL-1000 | 10 | 1000 | 30 | 10 | 1380 | 505L×365W×790H | |||
DL-3000 | 35 | 3000 | 33 | 14 | 2120 | 740L×640W×880H | |||
DL-5000 | 35 | 5000 | 33 | 14 | 3000 | 820L×690W×1110H |
Recommended total system:
recyclable chiller + rotary evaporator + oil free diaphragm vacuum pump
recyclable chiller + rotary evaporator + circulating water jet flow vacuum pump
ISO 9001:2008 Certificate:

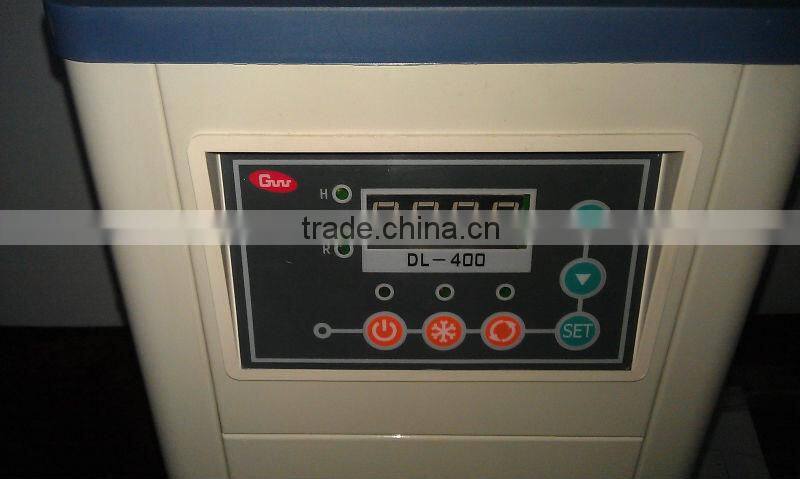

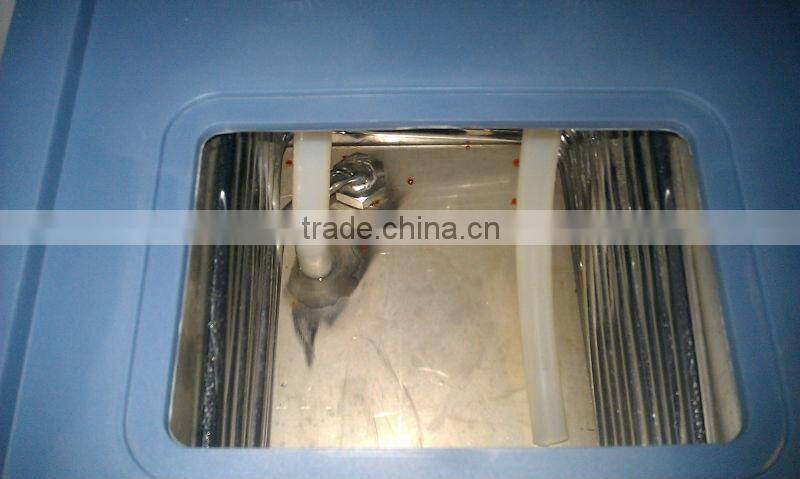

Partial Pictures:
