Specifications
HWCL-3 Integrated Thermostatic Magnetic Blender1.room temp-200
2.0-2000 rpm
3. Max Flask Input: 3L

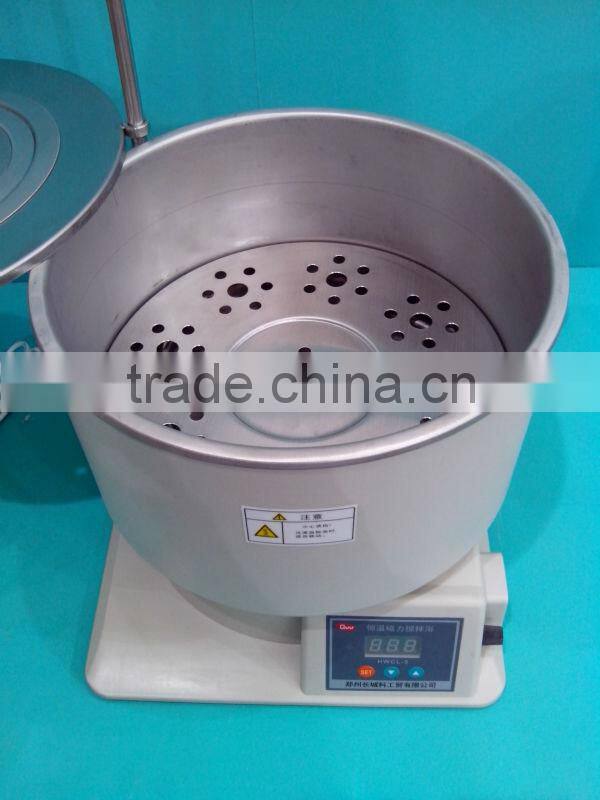

HWCL-3 Integrated Thermostatic Magnetic Blender 0~2000 rpm Speed
I. Brief Introduction of Magnetic Thermo Blender :
Magnetic Thermo Blender can be used as water bath and also can be used as oil bath. Strong magnetic stirring is set in trough solid.
II. Features of Magnetic Thermo Blender :
1. Adopt ANSI 304 stainless steel heater which can be used for oil and water bath.
2. Strong magnetic stirring makes the stirrings in the flume rotate synchronistically to ensure the even and precision of high viscosity solution temperature.
3. The performance of high performance direct current brushless machine is stable and can be used continuously.
4. High temperature magnet will not lose magnetism when continuous use in 300°C.
5. PID control, digital display

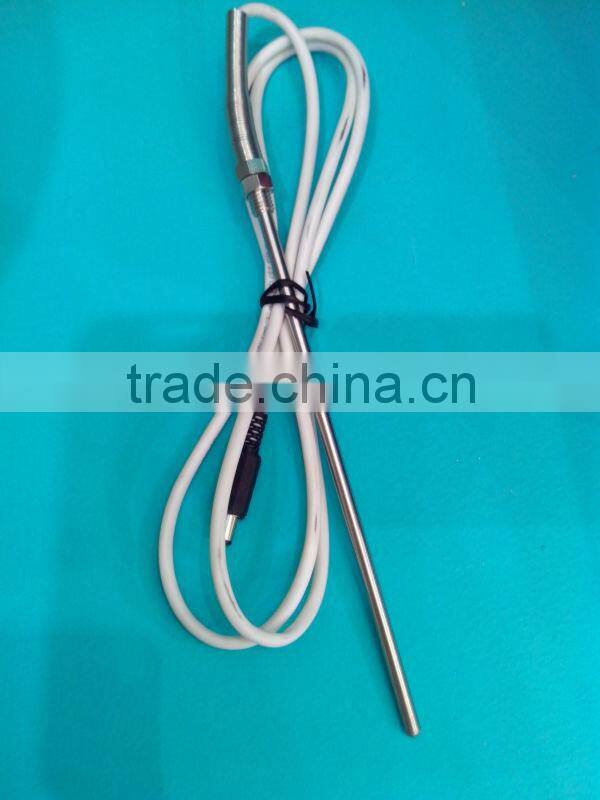

6. Dual sensor, temperature can be converted and displayed in flume and reaction vessel.
7. With the magnetic stirrer in the bath, one more stirrer is put inside the flask, two-stage stirrer can be realized to ensure even of solution.
III. Technical Data of Magnetic Thermo Blender:
Model |
HWCL-1 |
HWCL-3 |
HWCL-5 |
Temperature range(°C) |
Room temp ~200 |
||
Temperature stability (°C) |
±1 |
||
Temperature display |
Keypad input Digital display |
||
Speed-setting |
Knob setting |
||
Speed (rpm) |
0~2000 |
||
Bath size(mm) |
φ140×90 |
φ220×110 |
φ250×140 |
Bath volume(L) |
1 |
4 |
6.5 |
Heater wattage (W) |
300 |
1500 |
1500 |
The max flask input (ml) |
500 |
3000 |
5000 |
PowerSupply(V/Hz) |
220/50 |
||
Dimensions (mm) |
190L×200W×190H |
260L×280W×230H |
260L×280W×260H |

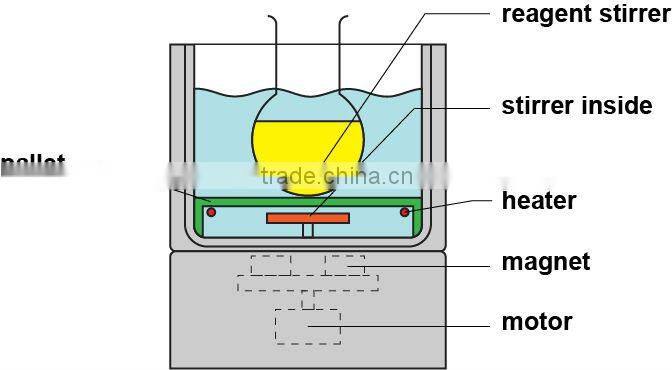

IV. Structure Picture of Magnetic Thermo Blender :

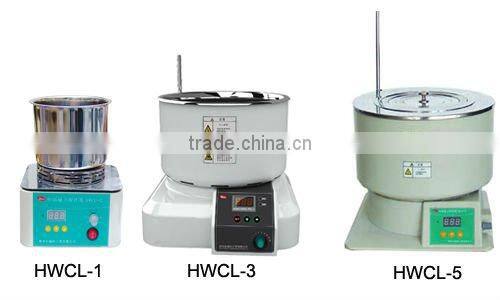

V. Three different models pictures:

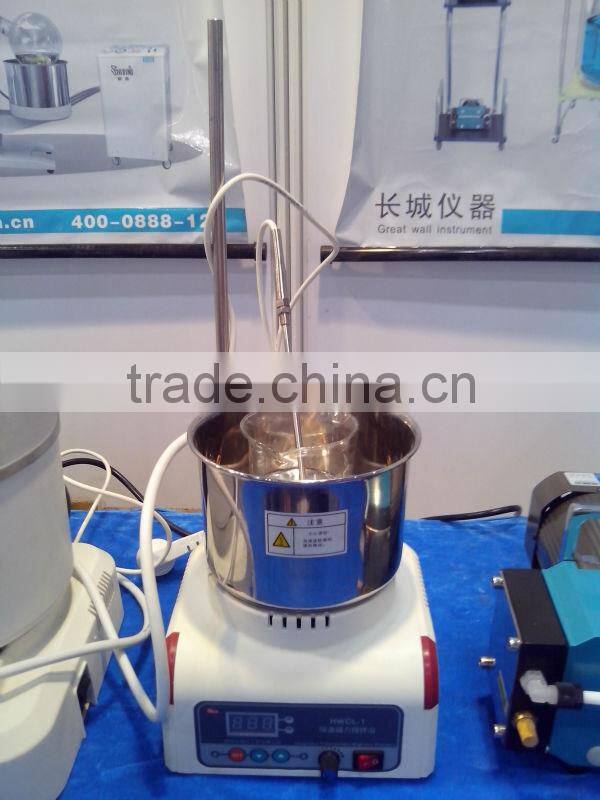

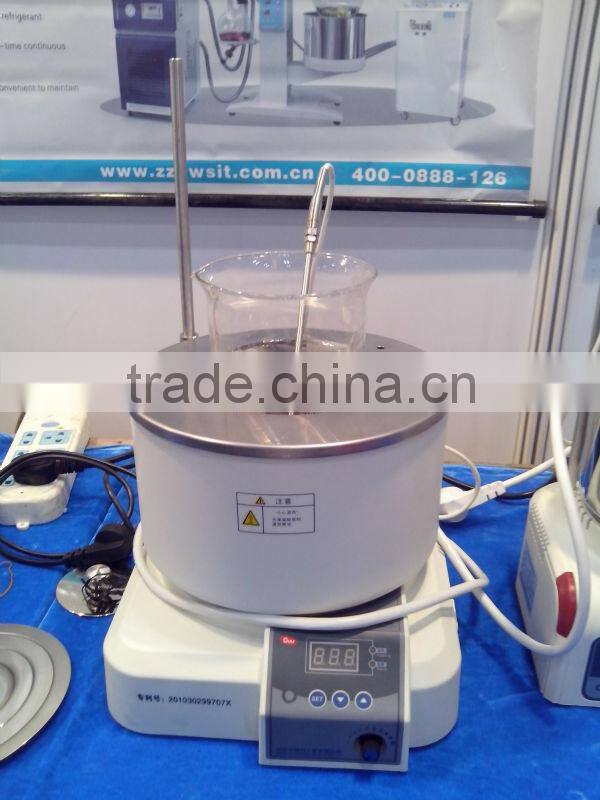

V. Experiment
HWCL-1
HWCL-3
HWCL-5
