Specifications
1.-20 to Room temperature2 Patent product(ZL2004 2 0010784.8)
3 20L bath volume
4 Centralize vacuum and refrigeration
1: Brief introduction of refrigerating circulating pump and vacuum pump:
Our company has independent intellectual property right.
Development is based on Cooling Water Circulating Pump and Circulating Water Vacuum Pump.
Use with Rotatory Evaporator to form a complete set. Suitable for low-temperature coagulation, shorten distillation time and improve the recovery.

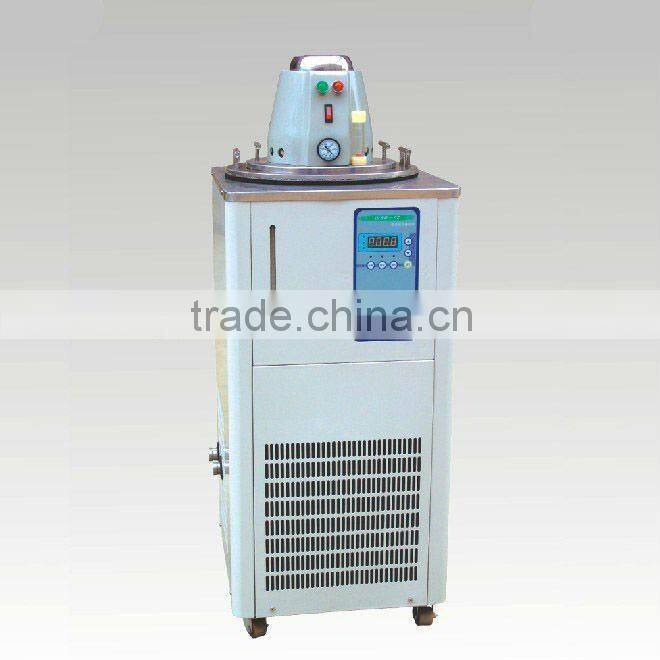

2: Pictures of DLSB-FZ refrigerating circulating pump and vacuum pump (Patent Product)
3: Technical paramters of refrigerating circulating pump and vacuum pump :
Model DLSB-FZ
Temperature range(°C) -20~Room temp
Cooling capacity(W) 310~1860
Bath volume(L) 20
Temperature stability(°C) ±2
Power (W) 10
Function of circulating pump Lift(m) 5~7
Flow(L/min) 12
Power (W) 180
Function of vacuum pump Lift(m) 10
Flow(L/min) 80
Maximum vacuum degree(MPa) 0.098
Number of Taps(A) 1
Air sucking amount(L/min) 10
Ambient temperature(°C) 5~25
Overall Power(W) 1200
Power supply(V/Hz) 220/50
Dimensions(mm) 470L×410W×1300H
4:Key features of refrigerating circulating pump and vacuum pump:

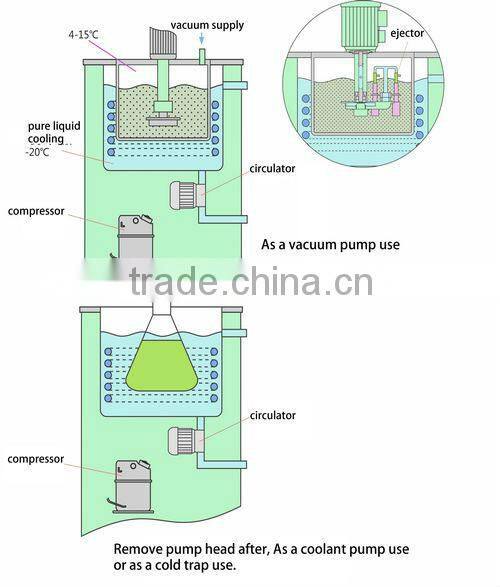

♦ Centralize vacuum and refrigeration,unify features of Cooling Liquid Circulating Pump and Vacuum Pump. It can draw vacuum and cool the circulating evaporator simultaneously.
♦ Self cooling function can ensure the water temperature in the vacuum pump around 4°C, to guarantee the best vacuum degree.
♦ Vacuum and cooing can work alone, simultaneously or separately.
♦ Cooling compressor adopts products made by Panasonic, Toshiba etc.
♦ Vacuum pump tap of upper part placed with inserting Bijection , single valve drawing, large bleed air rate and one gauge display. After taking off the tap, the whole part can be used as a cooling water circulating pump, provide cooling source for external parts.
5: Functions of low temperature vacuum pump DLSB-FZ :
