Specifications
DLSB-ZC refrigeration vacuum pumpoling capacity 600-2550W
2.taps 3
3.max. vacuum 0.098 MPa
rrosion resistant

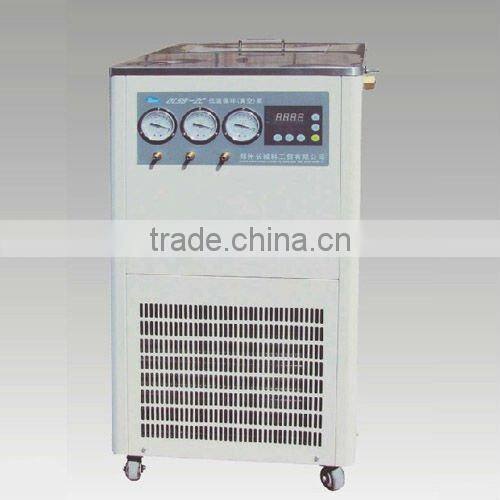

DLSB-ZC refrigeration vacuum pump
I. Introduction of DLSB-ZC:
Development is based on Cooling Water Circulating Pump and Circulating Water Vacuum Pump. Use with Rotatory Evaporator to form a complete set. Suitable for low-temperature coagulation, shorten distillation time and improve the recovery.
II. CHARACTERISTICS OF USES:
•Centralize vacuum and refrigeration,unify features of Cooling Liquid Circulating Pump and Vacuum Pump. It can draw vacuum and cool the circulating evaporator simultaneously.
•Self cooling function can ensure the water temperature in the vacuum pump around 4°C, to guarantee the best vacuum degree.
•The vacuum is stable. Have three taps and can evacuate vacuum at the same time, three vacuum gauges display, visual observation. Cooling tube adopts stainless steel, corrosion proof, and can provide cooling source for external parts.
III. Technical data:
Model |
DLSB-FZ |
DLSB-ZC |
|
Temperature range(°C) |
-20~Room temp |
-10~Room temp |
|
Cooling capacity(W) |
310~1860 |
600~2550 |
|
Bath volume(L) |
20 |
||
Temperature stability(°C) |
±2 |
||
Function of circulating pump |
Power (W) |
10 |
280 |
Lift(m) |
5~7 |
10 |
|
Flow(L/min) |
12 |
30 |
|
Function of vacuum pump |
Power (W) |
180 |
- |
Lift(m) |
10 |
- |
|
Flow(L/min) |
80 |
- |
|
Maximun vacuum degree(MPa) |
0.098 |
||
Number of Taps(A) |
1 |
3 |
|
Air sucking amount(L/min) |
10 |
||
Ambient temperature(°C) |
5~25 |
||
Overall Power(W) |
1200 |
1650 |
|
Power supply(V/Hz) |
220/50 |
||
Dimensions(mm) |
470L×410W×1300H |
570L×430W×780H |
|
IV. Structure of DLSB-ZC:
V. ISO9001:2008 Certificate:
