Oilless Vacuum Pump Teflon Diaphragm MP-201 MP-401
- Shanghai/Ningbo
- T/T Money Gram
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | Zhengzhou Great Wall | |
| Model Number | MP-201 MP-401 |
Product Description

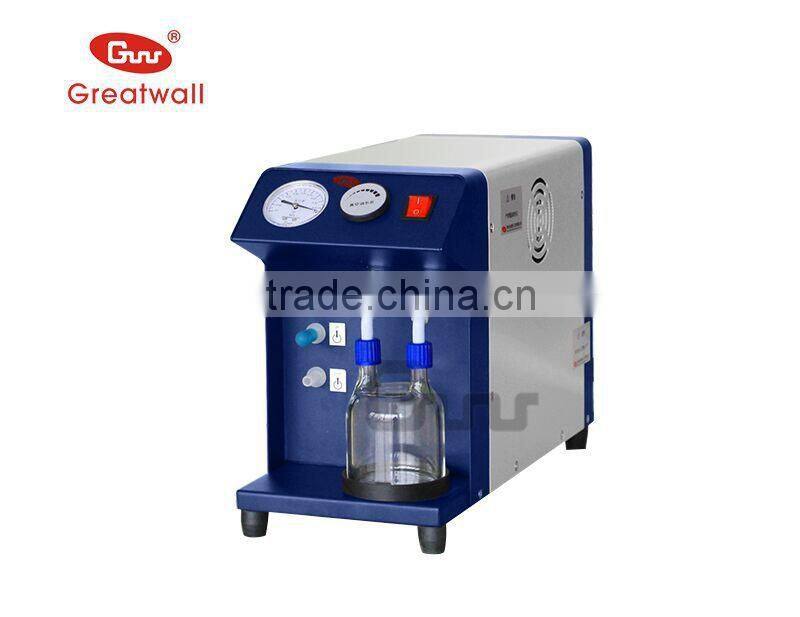

Oil less diaphragm vacuum pump
Specifications:
1.ISO9001:2008 Certificate
2.One year warranty
3.PTFE(Teflon)
Recyclable chiller(DL-400) / 500ml-2L rotary evaporator(R-1001-VN) / MP-201
Recyclable chiller(DL10-2000) / 10L rotary evaporator(R-1010) / MP-401
Characteristics of uses:
Providing vacuum condition for the processes of evaporation, distillation, crystallization, drying, sublimation, filtration and decompression and degassing. And extracting for various materials with severe toxicity, flammability and probability of explosion, strong acid and alkali. Besides applicable occasion of circulating water vacuum pump and spiral slice vacuum pump, it also can be used in fields like product analysis of medical treatment and medication and Police detective techniques.
1.Replace circulating water vacuum pump and spiral slice vacuum pump.
2.No need of any working medium. No friction in working parts.
3.The vacuum is stable. And the degree is easy to be controlled and can be adjusted according to experiment requirements.

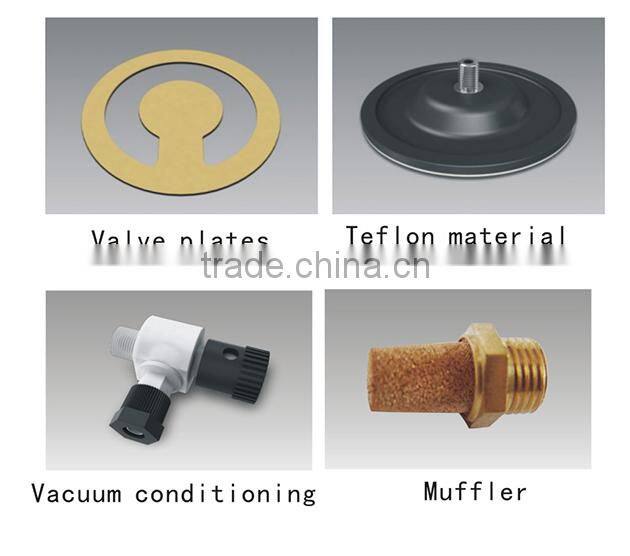

4.All parts that exposed to gas need surface treatment with Teflon(PTFE), has complete chemical resistant ability.
5.Valve plate adopts imported materials.
6.The special machine is made by the famous electric manufacture ODM with reasonable transmission design and self cooling exhaustion system that can work for a long time.
7.Small volume, light weight, easy to move and save space in the lab.
8.Easy to repair and maintain.
MP-401
Model | MP-201 | MP-401 |
Power(W) | 180 | 250 |
Power supply(V/Hz) | 220/50 | 220/50 |
Speed(rpm) | 1400 | 1400 |
Suction diameter(mm) | φ10 | φ10 |
Exhaust diameter(mm) | φ10 | φ10 |
Maximum vacuum Degree(MPa) | 0.098 (20mbar) | 0.098 (20mbar) |
Sucking amount(L/min) | 25 | 45 |
Noise | <70db | <75db |
Main Machine Dimensions(mm) | 230L*300W*150H | 195L*440W*290H |
Net Weight(kg) | 10 | 15 |
Contact information:
ISO 9001:2008 Certificate
Zhengzhou Greatwall Scientific Industrial and Trade Co.,Ltd was established in 1988.The company products including multiple-use circulating water vacuum pump, diaphragm vacuum pump, low temperature cooling liquid circulating pump, recyclable chiller, low temperature ( constant temperature ) stirring reaction bath, hermetic Refrigerated and Heating Circulators, pilot plant low temperature refrigerated equipment, Hermetic high temperature circulators, rotary evaporator,glass reactor, magnetic stirrer and other scientific experimental instrument and industrial related equipments.
