Help Center6.7mm 55 Inch Narrow Bezel Splicing LCD Video Wall/TV Wall With Rich Interface for Indoor
Related Products
-
Narrow Bezel Lcd Video Wall 46" 55"- I-PanelUS$ 500 - 10,000MOQ: 1 Unit -
HDMI Picture Vivid 4K Tech.55" Super Narrow Bezel LCD XXXVideo WallNegotiableMOQ: 1 Set
-
Full Color HD 55" Super Narrow Bezel LCD Www.XXXVideo.com WallNegotiableMOQ: 1 Set
-
Narrow Bezel Lcd Video Wall,video Wall ControllerUS$ 1,400 - 1,800MOQ: 5 Pieces
-
Led Xxx Video Wall,led Video Wall PanelUS$ 1,444 - 1,800MOQ: 5 Pieces

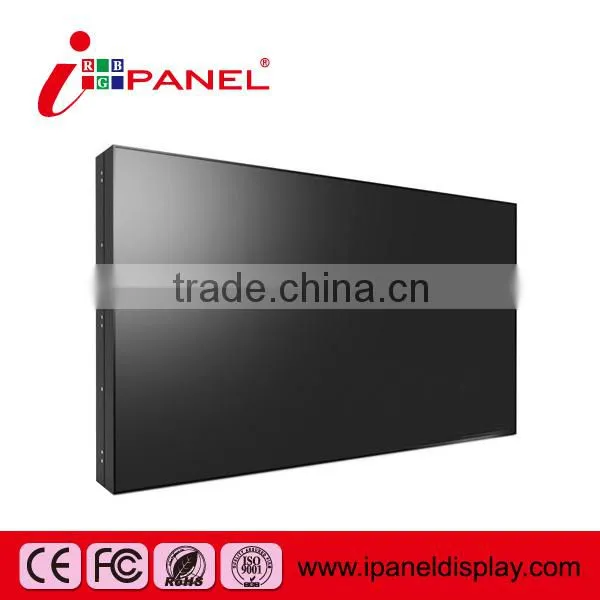

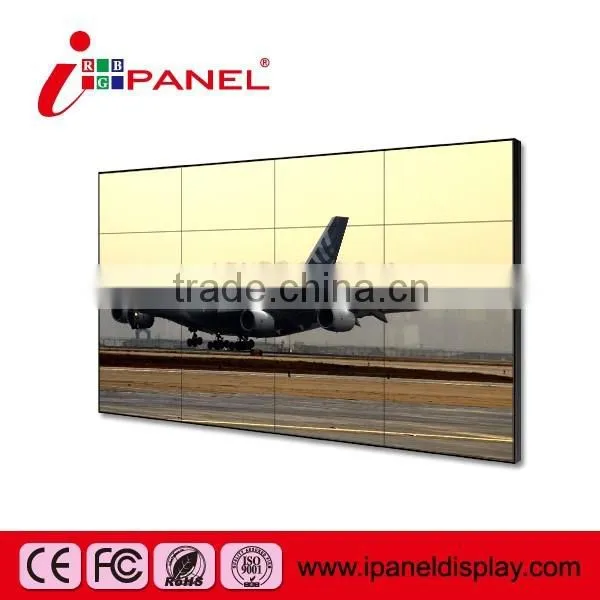

i-Panel IP46UV 46 inch ultra-narrow Bezel LCD Video Wall
Production Description
Main Features:
1) World-class visual soulutions---Integrated products & system & software
2) Ultra narrow bezel design ---Top original brand industrial grade LCD panel,high quality,Practical,
best vision effect.
3) High Quality---Stable performance,suitable working for a long time
4) Highly clear picture qualit--- High brightness,high contrast, high gamut
5) Flexible structure design ---Easy installation ,extensible,arbitrary combination
6) Rich signal interface --- RS232, HDMI,DVI,VGA,Y Pb Pr ,AV
7) Flexible structure design ---easy installation ,extensible,arbitrary combination
8) Wide Range of General Purpose Application

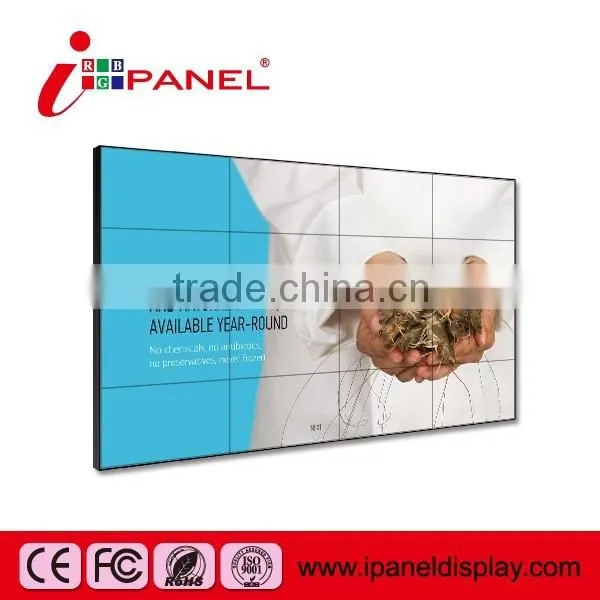

Pictures
Specifications
A)Panel Parameters
Brand & Model |
I-panel IP46UV |
Size |
55inch |
Panel brand |
Samsung |
Panel type |
LCD |
Brightness |
450cd/ m2 |
Contrast |
4000:1 |
Resolution |
1980×1080 |
Display Color |
16.7M |
Response time |
8ms |
Horizontal scan frequency(kHZ) |
20~82(Analog&Digital) |
Vertical scann frequency(kHZ) |
55~75 |
Max & Compatible resolution |
1920×1080; 640×480,800×600,1024×768,1280×720,1280×1024,1366×768,1600×1200,1920×1080 |
Power |
≤140W |
Standby power |
≤0.5W |
B) Other important parameters
Input port |
VGA×1,DVI×1,HDMI×1,Audio/Video×2,RJ45(for RS232 IN)×1 |
Output port |
RJ45(for RS232 OUT)×1 |
Input voltage |
AC100~240V(+/-10%)/50-60Hz |
Language |
Chinese/English |
Intelligent cooling system |
Environmental protection mute cooling fan, Energy saving, Reduce the noise, Reduce the temperature, Improve products reliability |
Low energy consumption backlight system |
Energy saving, reduce LCD panel heat, Improve the reliability of LCD monitor, Effectively solve eye fatigue, Convenient for long-term monitoring |
|
System control way |
Chinese/English switching, contrast ration, brightness, definition, color saturation, tone, Signal switching, Source view, Color temperature adjustment, Operation state display |
Operation mode |
key control, infrared control, remote control |
Video format |
PAL/NTSC |
Casing material |
Metal |
Working temperature |
0°~50° |
Storage temperature |
-20°~60° |
Work humidity |
10%~90% |
Storage temperature |
-20°~60° |
Storage humidity |
0%~90% |
Environment height( Boot)m |
0-3000 |
Size(W×H×D)mm |
1023.98×578.27×125.6 |
Weight(kg) |
24.3 |

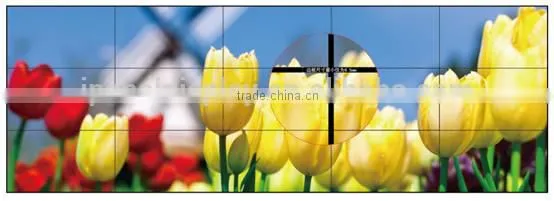

Splicing gap mm |
5.3/6.7/7 |
Certification |
CCC/CE/ROHS |

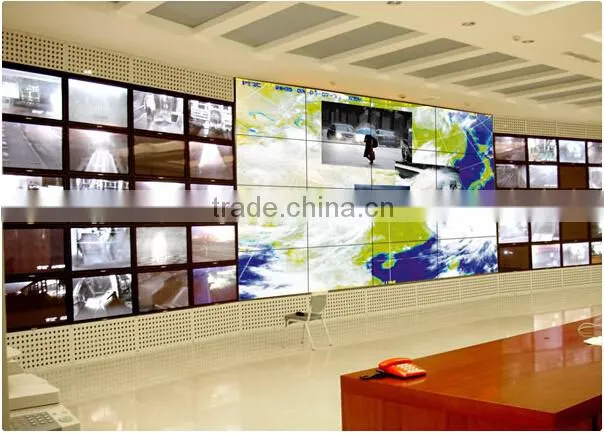

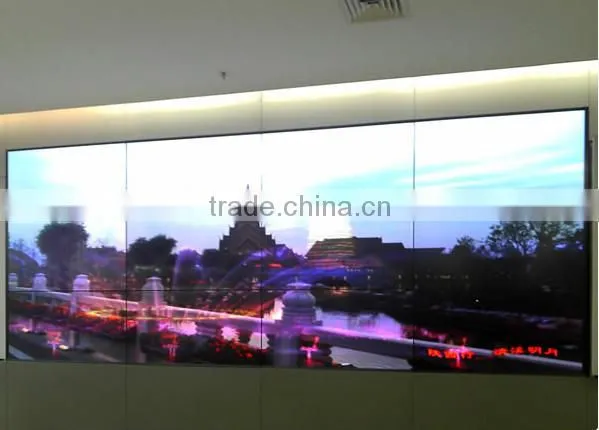

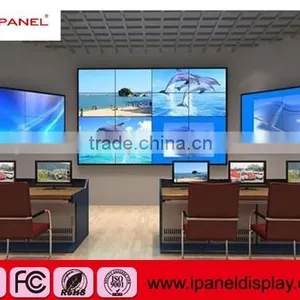

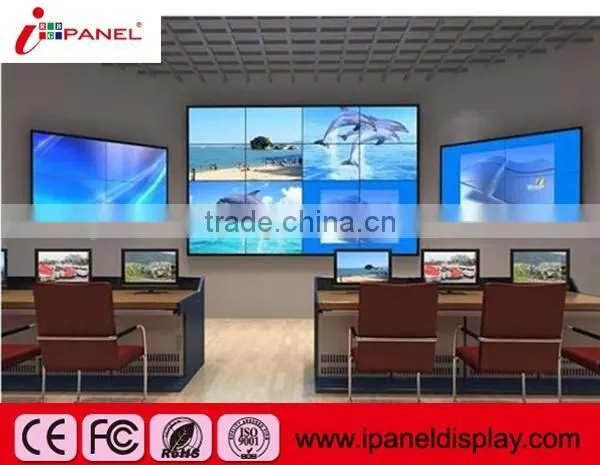

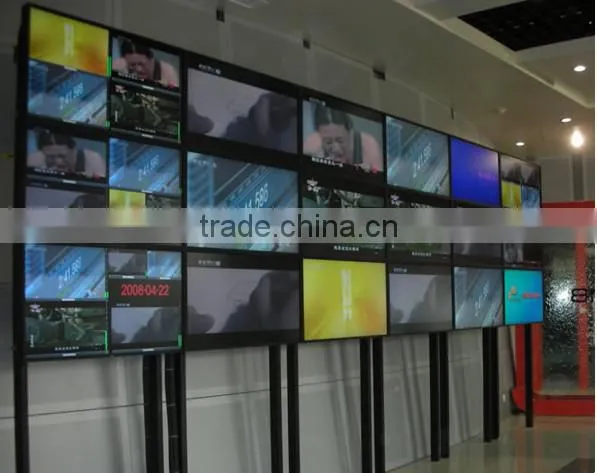

Our Case Application
The splicing picture combination, can reach the advertising media to the pursuit of large screen.
Widly use toAirport, Finacial ,Metro,shopping mall,supermarket,Public. Etc.
Yanzhou MB
Changsha Electrical Power
CCTV Station
Company Info
i-Panel Display Device is a global technology vendors, Established in the United Kingdom
since 2001,i-Panel With its expertise on a global scale has won wide reputation as a company
providing a varietyof display technologies and solutions vendors.
Our Team
Our Office

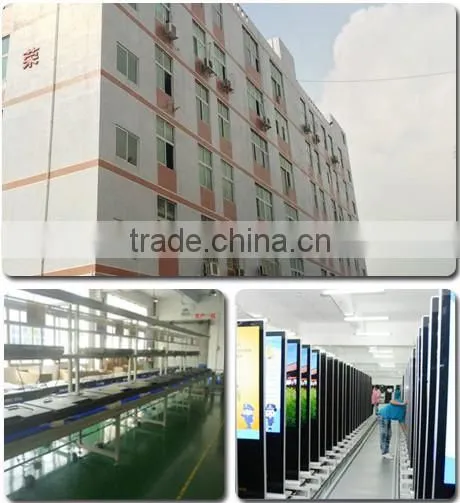

Our Factory

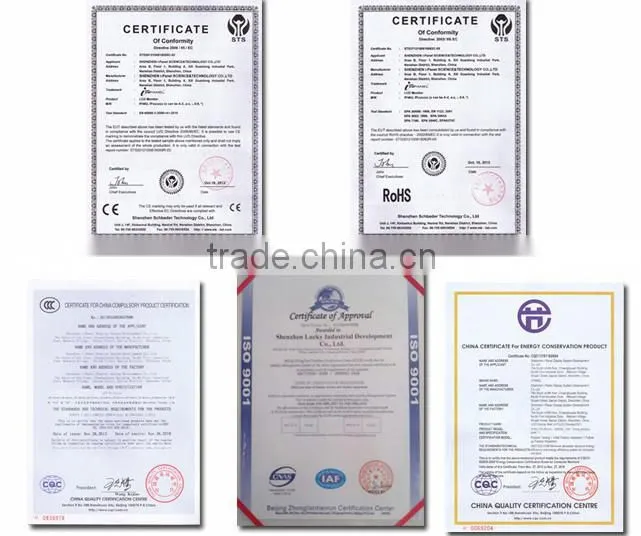

Certification
Our service
1. Display technologies and solutions vendors
2. Factory production---We control each procedure well and produce perfect product.
3. Fast delivery---For standard model, sample is usually in stock. It can be shipped immediately
after payment confirmation.
4. 15years OEM/ODM experience.--- We can customize according to specific requirements based
on our product lines.
5. Qualified products---All of our product are qualified with CE/ROHS/FCC.
6. Provide excellent customer service for pre-sale/on sale/after sale orders.
FAQ
1) MOQ: Only one PCS
2) Payment terms:
Normally by TT, 30% as deposit, balanced 70% pay against B/L copy,
3) Trade Terms:
Normally Ex-Work, we can also arrange shipment when you need our help.
4) Delivery time:
About 3-7working days
5) Warranty time
One Year Limited Warranty (Damages caused by inadequate operation is not covered.)
A.How can I get the most competitive price?
Please show and provide as much detail specifications as possible. Like application, services needed,quantity etc.
The more detail information, the more accurate we can quote you the price.
B. What Can I do if I cannot provide such detail specifications?
Please send us the information as much as you know. We will make a price for your reference which based on our
experience. If you really have no idea of the specs, please try to find some similar case.
C. Can I get samples?
Yes. We can send you sample,and charesis on buyer's account, for our not consumer electronics, value much.
D. Can you make sample according to my own specifications?
Yes. We can. But there is sample charge.
E. What's the production lead time?
For small QTY, we have stock, for large, It depends on the quantity. It varies from 15to 30days.
