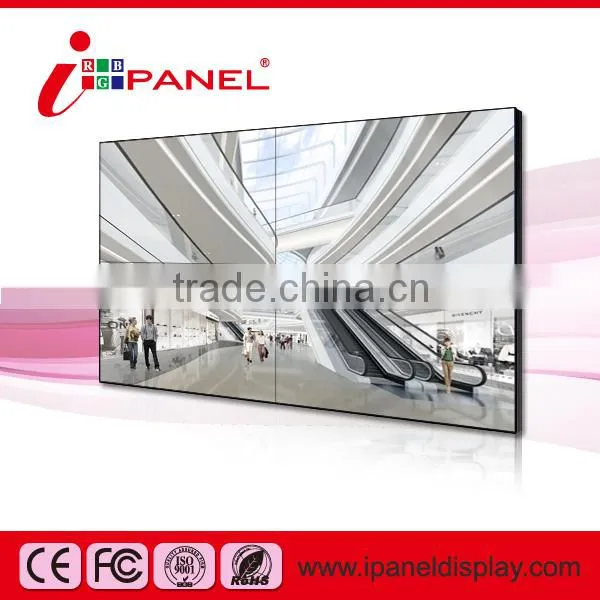

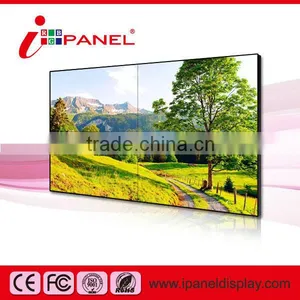

HDMI Picture Vivid 4K Tech.55" Super Narrow Bezel LCD XXXVideo Wall
55" Super Narrow Bezel LCD WWW.XXXVideo.COM Wall
*3.5mm ultra-narrow bezel,ideal for display application
*High brightness,high definition,high contrast ratio,wide viewing angle
*Built 4K*2K display controller
*6-axis color adjustment
*3D digital signal
*4DG all color adjustment technology
*Support multi-stream(multi-streaming)
- Specification:
| Model | IP55U | |||
| Resolution | 1920×1080 | |||
| Back light | LED | |||
| Screen size | 55 | |||
| View angle | 178°/178° | |||
| Pixel pitch(mm) | 0.63 | |||
| Contrast | 4000:1 | |||
| Brightness(nits) | 700 | |||
| Response time(ms) | 8 | |||
| Display color(M) | 16.7 | |||
| Horizontal scan frequency(kHZ) | 20~82(Analog&Digital) | |||
| Vertical scann frequency(kHZ) | 55~75 | |||
| Max.resolution | 1920×1080 | |||
| Compatible resolution | 640×480,800×600,1024×768,1280×720,1280×1024,1366×768,1600×1200,1920×1080 | |||
| Input port | VGA×1,DVI×1,HDMI×1,Audio/Video×2,RJ45(for RS232 IN)×1 | |||
| Output port | RJ45(for RS232 OUT)×1 | |||
| Input voltage | AC100~240V(+/-10%)/50-60Hz | |||
| Power | ≤200W | |||
| Standby power | ≤1W | |||
| Language | Chinese/English | |||
| Intelligent cooling system | Environmental protection mute cooling fan, Energy saving, Reduce the noise, Reduce the temperature, Improve products reliability | |||
| Low energy consumption backlight system | Energy saving, reduce LCD panel heat, Improve the reliability of LCD monitor, Effectively solve eye fatigue, Convenient for long-term monitoring | |||
| System control way | Chinese/English switching, contrast ration, brightness, definition, color saturation, tone, Signal switching, Source view, Color temperature adjustment, Operation state display |
|||
| Operation mode | key control, infrared control, remote control | |||
| video format | PAL/NTSC | |||
| Casing material | Metal | |||
| Color | Black | |||
| Storage temperature | 0°~50° | |||
| Work humidity | 10%~90% | |||
| Storage temperature | -20°~60° | |||
| Storage humidity | 0%~90% | |||
| Environment height( Boot)m | 0-3000 | |||
| Size(W×H×D)mm | 1215.3×686.1×142.5 | |||
| Weight(kg) | 38.4 | |||
| Splicing gap mm | 5.5 | |||
| Certification | CCC/CE/ROHS | |||
