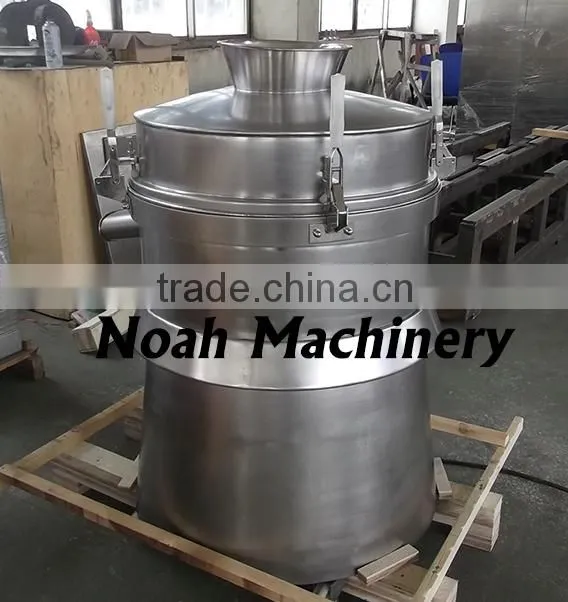

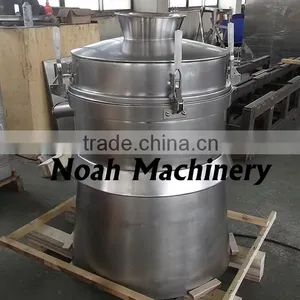

XZS650 Food powder vibrating sieve
Applications:
1.The XZS650 Food powder vibrating sieve consists of hopper, vibration chamber and coupling and motor. There are eccentric wheel, rubber soft parts, and main shaft bearings.
2.The adjustable centric weight can drive the central line of main shaft through motor under the unstable state. It produces centrifugal force that makes raw materials from vortex in the sieve.
3.The size of amplitude of eccentric weight can be regulated in accordance with the different raw materials. The features of the machine are compact in structure, small in size, free of dust and with little noise. Also it is highly efficient and low energy consuming, easy of move and maintenance.
Main technical specifications:
| Modle | XZS350 |
XZS515 |
XZS650 |
| Productivity kg/h | 60-500 |
60-1350 |
180-2000 |
| ScreenMeches | 12-200 |
12-200 |
12-200 |
| Screen Diameter mm | φ350 |
φ515 |
φ650 |
| Power kw | 0.55 |
0.75 |
1.5 |
| rpm | 1380 |
1450 |
1370 |
| Overall Dimensions mm | φ540×1060 |
φ710×1290 |
φ880×1350 |
| Net weight kg | 100 |
180 |
250 |
Each model is provided with double,or triple outlets | |||
Adjustment of vibratiy rang 1-6 mm | |||
XZS Whirlpool vibration sieve machine / vibration screening machine / round vibration sieve machine )
Nuoya Machinery Company is one famous group and apply itself to R&D and manufacture machinery for Pharmaceutical, Chemical, food and so etc fields. The Main products are: Tablet press, Mixer, Crusher, Granulator, Dryer, Coater, Packing machine….we also can make punch die sets and spare parts in standard or not standard.
