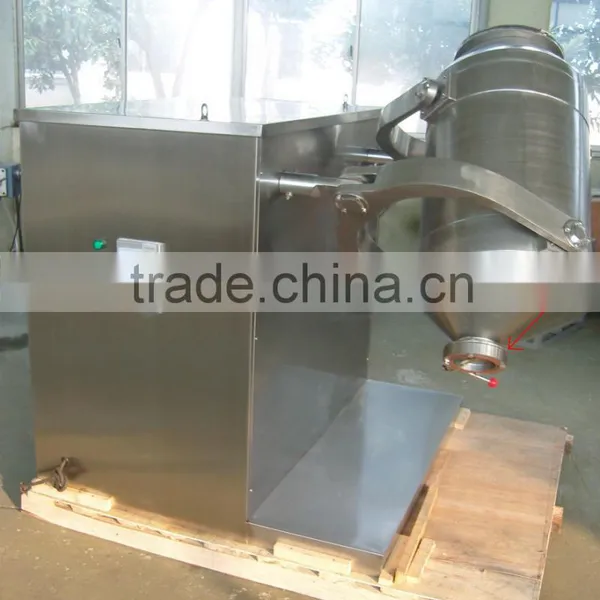

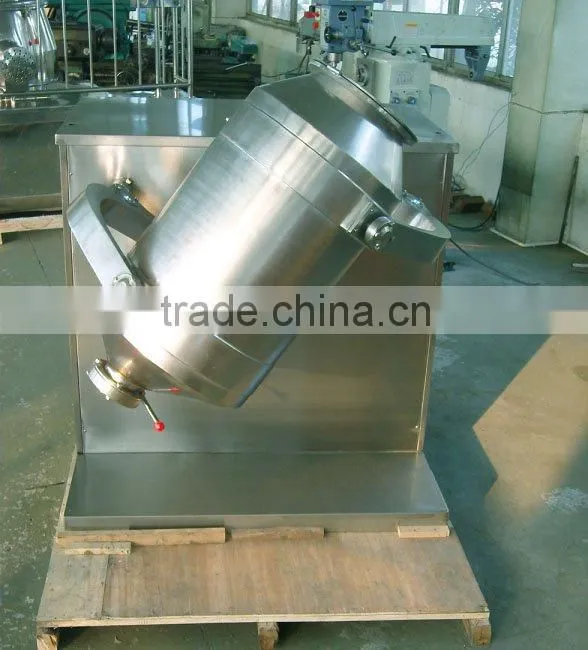

HD-200 Three Dimensional Blending Equipment
Applications:
1.Our machine,HD-200 Three Dimensional Blending Equipment (Multi-Directional Mixer,Three-dimensional Mixer) is a novel materials mixer.
2.It is widely applicable to such industries as pharmaceutical, chemical, foodstuff and light industry as well as R&D institutes.
3.The machine can perform a very uniform mixing of power or granular materials with a good mobility
Working principles:
When the machine is in operation, because of the running actions of the mixing tank in multi direction, the now and digression of the various kinds of materials are sped up in the process of mixing. At the same time, the phenomenon is avoided that the congregation and segregation of the material in gravity ratio cocooning due to the centrifugal force in the normal mixer and extremely good effect can be obtained.
Structure:
The HD series multi directional movement mixer consists of the base, driving system, electric control system, multi-directional, movement mechanism and mixing tank. The mixing tank to be in contact with the materials is made of quality stainless steel, with both inside and outside of the tank mirror polished.
Features:
1. Because the mixing tank performs a multi directional movement, there are many points of mixing with a good effect of mixing. The uniformity of the mixing is better than that of the normal mixer
2. The shape of the mixing tank is reasonably designed with no death corner and both the inside and outside polished. The discharge of materials is free with no accumulation. It is easy to clean
3. The materials are mixed in an enclosed state. With no contamination to the working environment and materials
Main technical specifications:
Type |
HD200 |
Volume of tank (L) |
200 |
Max. load capacity (L) |
160 |
Max. load weight (kg) |
100 |
Rotary speed of the main shaft (r/min) |
0 -15 |
Power of motor (kW) |
2.2 |
Overall size (L x W x H) (mm) |
1400*1800*1600 |
Weight of machine (kg) |
800 |
HD-200 Three Dimensional Motion Mixer ( Multi-Directional Mixer , Three-dimensional Mixer )
