Home > Manufacturing & Processing Machinery > Mixing Equipment > Mixing Tank > EYH Series Chemical 2D Movement Mixer

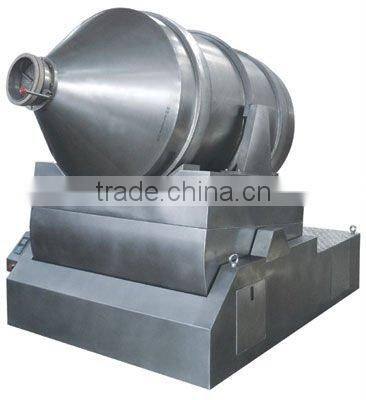

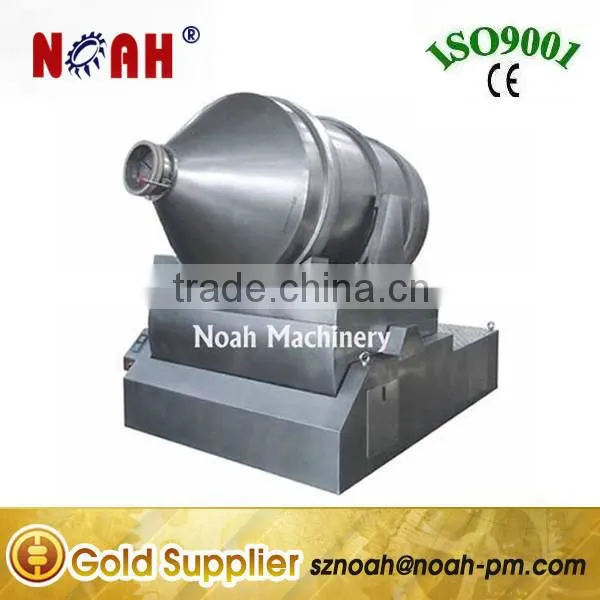

EYH Series Chemical 2D Movement Mixer

Name: EYH Series Chemical 2D Movement Mixer
Brand: NOAH
SKU: 126018331
Availability: InStock

EYH Series Chemical 2D Movement Mixer thumbnail-1

EYH Series Chemical 2D Movement Mixer photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Application:

Other, Powder, Solid material

Place of Origin:

Guangdong, China

Contact Supplier Request Quote Chat Now

Shenzhen Nuoya Pharmaceutical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Shenzhen Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Other, Powder, Solid material

Place of Origin Guangdong, China

Brand Name NOAH

Model Number EYH Series

Certification CE, ISO9001/CE

EYH Series 2D Movement Mixer

Applications:

Our EYH Series 2D Movement Mixer is widely used in pharmaceutical, food, dye, feed, chemical fertilizer and pesticide industries and especially suitable for mixing various solid materials with large volume (1,000tp 12,000litres).

Working Principle:

The mixing tank is a cylinder-shape barrel without any stirring device inside, which makes the self-rotation around its axis and also produces onvert swing movement around its plane axis synchronized. Therefore, the target materials inside the barrel could be mixed diffusely and moveably. It is featured with short mixing time, good uniformity, big output, convenient to discharging, etc.

Technical Parameters:

Model	Barrel volume (L)	Loading capacity (L)	Max Loading Weight (Kg)	Turn/Swa (r/min)	Total Power (Kw)	Overall Dimension (XYZ*Z1) (mm)	Y1 (mm)	Barrel Dia. (mm)	Total Weigh (Kg)	Barrel weight (Kg)
EYH300	300	180	90	18/11	1.3	9259051480*1360	1460	600	340	60
EYH600	600	360	180	16/9	2.2	114511051750*1600	1650	750	1150	140
EYH800	800	480	240	10/6	3	130512551900*1790	1990	820	1600	200
EYH1000	1000	600	300	8/6	3	137522551910*1770	2950	900	1700	240
EYH1500	1500	900	450	9/5	4.4	150524452200*2100	3200	1000	2000	320
EYH2000	2000	1200	600	8.5/5	5.2	163524452255*2120	3250	1130	2600	430
EYH3000	3000	1800	900	7/4.5	7.0	190527552600*2420	3650	1300	3500	620
EYH4000	4000	2400	1200	7.8/5	9.5	203532052755*2550	4200	1400	4100	700
EYH6000	6000	3600	1800	7/4	13	226538053230*2960	5040	1600	6100	1100
EYH8000	8000	4800	2400	6.7/4.5	13	255543053680*3390	5510	1800	7900	1450
EYH10000	10000	600	3000	6/4.2	18.5	266543553800*3420	5670	1900	10000	1700
EYH12000	12000	7200	3600	6/4	18.5	276549854120*3760	6500	2000	13000	2000
EYH15000	15000	9000	4500	6/4	22	303548554500*4150	6700	2300	15000	2500
EYH20000	20000	12000	6000	5/3.5	30	329551555000*4500	7050	2500	18000	3100
