Home > Manufacturing & Processing Machinery > Mixing Equipment > Mixing Tank > W-180 Small Double Cone Mixing Machine

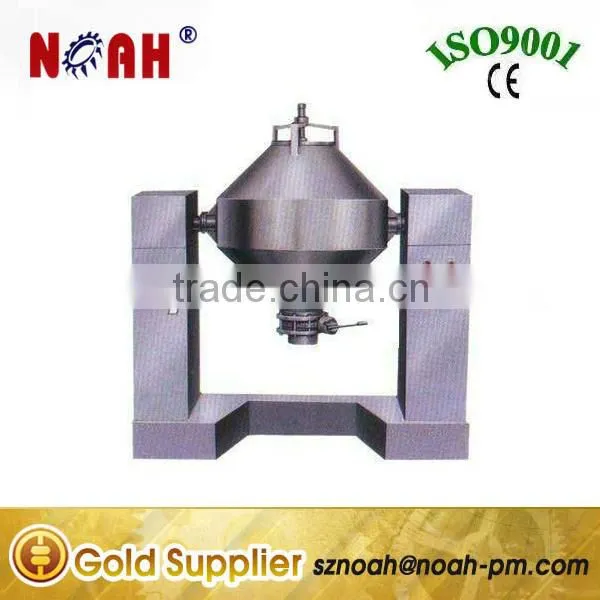

W-180 Small Double Cone Mixing Machine

Name: W-180 Small Double Cone Mixing Machine
Brand: NOAH
SKU: 126018325
Availability: InStock

W-180 Small Double Cone Mixing Machine thumbnail-1

W-180 Small Double Cone Mixing Machine thumbnail-2

W-180 Small Double Cone Mixing Machine photo-1

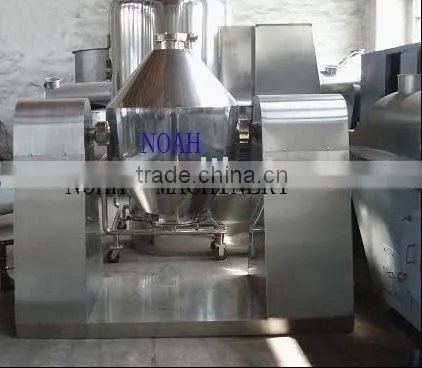

W-180 Small Double Cone Mixing Machine photo-2

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Mixer Type:

Other, Rotary

Product Type:

Other, Pharmaceutical, Food, Chemical

Contact Supplier Request Quote Chat Now

Shenzhen Nuoya Pharmaceutical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Mixer Type Other, Rotary

Product Type Other, Pharmaceutical, Food, Chemical

Application Other, Powder, Mixing

Additional Capabilities Other, mixing

Place of Origin Jiangsu, China

Brand Name NOAH

Model Number W-180

Max. Loading Capacity 40kg/times

Voltage 380V

Power(W) 1100

Dimension(L*W*H) 1400*800 *1850mm

Certification CE

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

W-180 Small Double Cone Mixing machine

Product Description

Applications:

1.Model W Series Double Cone Blender With similar functions to those of V type mixer,this machine is applicable for pharamaceutical ,chemical ,foodstuff,feed,dyestuff and electornic trades etc.

2.It has remarkable effect in mixing powders and particles with relatively good fluidity .With the each Index reaching the standard of same kind of foreign product,it's barrel is made of stainless steel ,which is polished both inside and outside,featuring beautiful appeatance and easy operation.

Main Technical Specifications:

Model	W-180	W-200	W-500	W-1000	W-1500	W-2000	W-2500	W-3000	W-4000
Production capacity(kg/times)	40	60	100	200	300	400	500	600	800
Total volume(m³)	0.18	0.3	0.5	1.0	1.5	2.0	2.5	3.0	4.0
Mixing time(min)	4-8	6-10	6-10	6-10	6-10	6-10	6-10	6-10	6-10
Motor Power(Kw)	1.1	1.1	2.2	4	4	7.5	7.5	7.5	11
Barel speed(r/min)	12	12	12	12	12	12	12	7.8	7.8
Overall dimention(mm)	1400800 1850	1685800 1850	1910800 1940	27651500 2370	29601500 2480	31601900 3500	33861900 3560	44502200 3600	47502500 3680
Height for turning (mm)	1850	1850	1950	2460	2540	3590	3650	3700	3730
Weight(kg)	280	310	550	810	980	1500	2150	2500	3200

Packaging & Shipping

Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually to ship W-180 Small Double Cone Mixing Machine by sea way.

Our Services

Documents:
Operational manual with English will be given at the time of dispatch of machine.

Guarantee:
All our machines guaranteed for trouble free performance for a period of 12 months from commissioning.

Service:
Service after sell for free for one year, and with spare parts for one year(except human reason broken and easy broken parts).

If you need, we can dispatch our engineer to install and test machine in your country. But our clients need to pay relative fees of our engineer. Our quotations will not include these fees.
