CH-300 Food Mixer Machine

Name: CH-300 Food Mixer Machine
Brand: NOAH
SKU: 126018247
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

NOAH

Model Number:

CH-300

Contact Supplier Request Quote Chat Now

Shenzhen Nuoya Pharmaceutical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Shenzhen Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name NOAH

Model Number CH-300

Application Other, Mixer, Mixer

Type Other, Mixing Machine, Mixing Machine

Specifications

CH-100 mixer machine
1.Pharmaceutical GMP trough type mixer machine
2.Horizontal stainless mixer machine

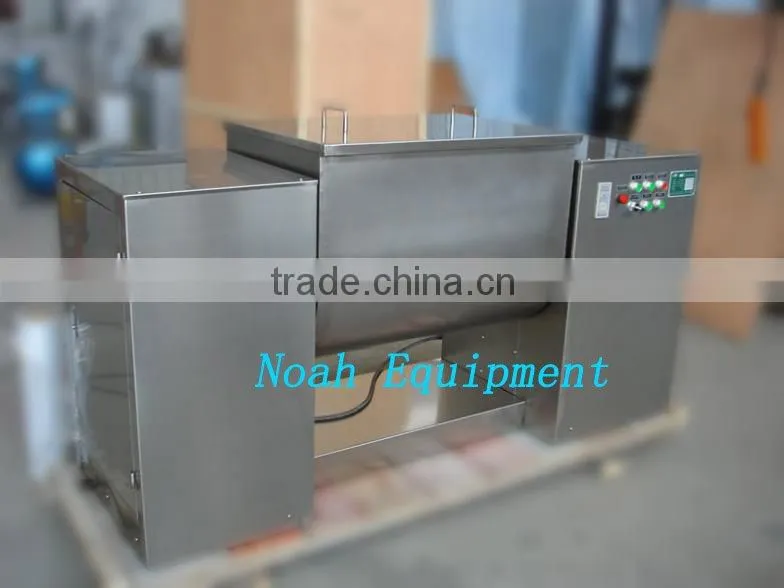

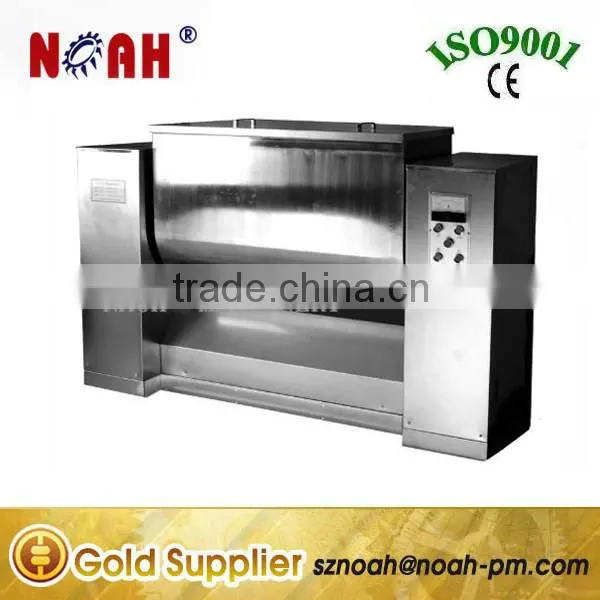

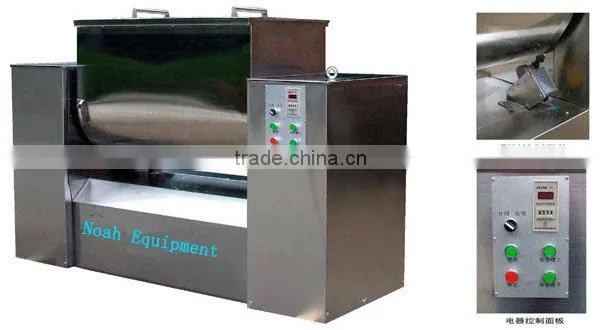

CH-300 Food mixer machine

Application:

This CH-300 Food mixer machine is designed for thoroughly mixing powders or pastes. It is a horizontal through type mixer with single stirring arm. The stirring arm is removable so that it is easy to clean. The parts’ surfaces which may touch the mixing materials are made of stainless steel, so they are good corrosion-resitent. The mixing trough can automatically reverse for discharge.

Working Principle:
S type agitating paddle is rotated through mechanical driving, which pushes the material turn repeatedly and mix uniformly. Operated with electrical control, it can set mixing time to realize automatic stop and electric discharge upon expiration, thus, it improves the mixing quality of each batch of material.

Main Technical Parameters:

Model	CH50	CH100	CH150	CH200	CH300	CH400	CH500	CH600
Working volume	50	100	150	200	300	400	500	600
Agitating motor	1.5	2.2	3	4	5.5	5.5	7.5	11
Discharging motor	0.37	0.55	0.55	0.75	1.1	1.1	1.5	2.2
Overall dimension	1200×500×950	1400×580×1000	1800×600×1150	2000×650×1200	2200×700×1250	2280×750×1250	2350×800×1300	2400×850×1350
Weight	280	350	410	450	520	580	680	750
Turning angle	<105°
Speed of agitating paddle	24
Type of paddle	S type single paddle
