Help CenterLG100 Small Pelletizing Machine
Related Products

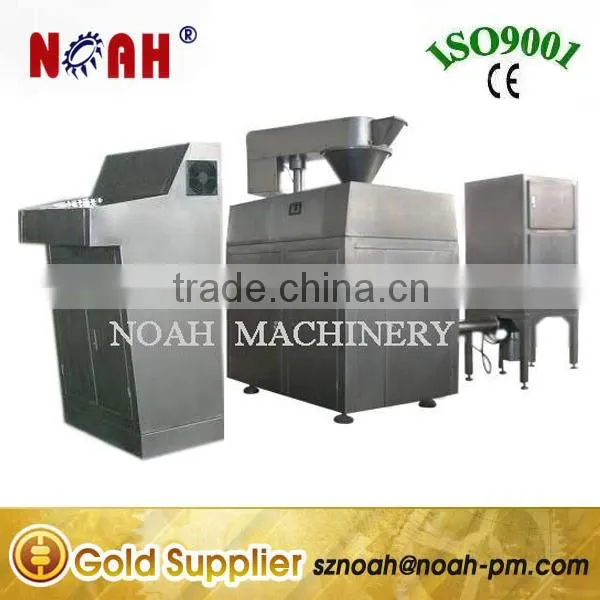

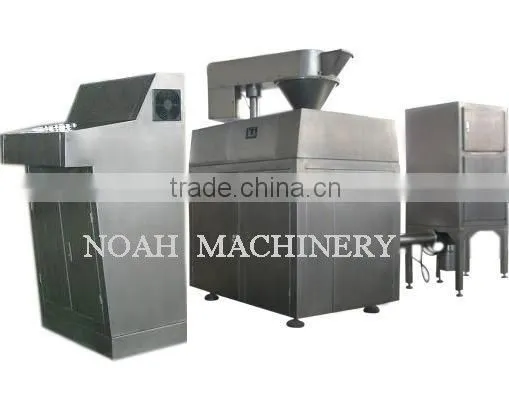

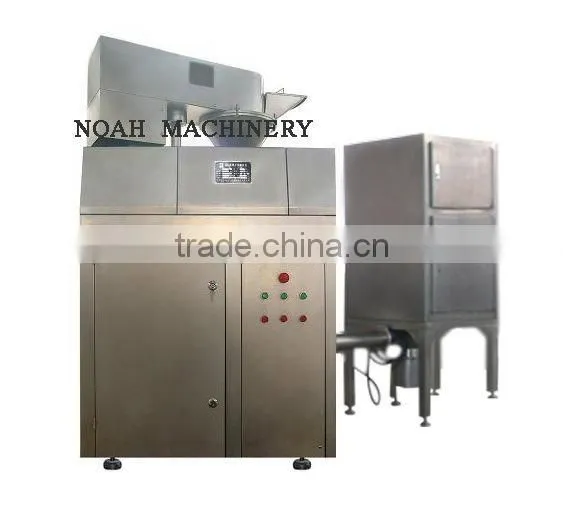

LG100 Dry Granulator, pelletizing machine
Applications:
Specifications
1. Granulator machine
2. Oscillating granulator
3. Mixing machine
Main application
1. Medicine: granule for pressed disk, granule for filling capsule and so on;
2. Foodstuff: granule for foodstuff making, granule for flavoring;
3. Plastic: shaped granule of all kinds of plastic;
4. Chemical industry: granule of catalyst, pigment, detergent and other chemical raw materials
Main Characteristics
1.The density of dry powder granule is homogeneous. Its solubility is good. The ratio of granule formed is high.
2.Heat proceeding from extrusion is cooled by the circle cooling water producer.
3.The side seal structure and the reasonable scraper bar structure may effectively eliminate the phenomenon of fine powder at the side of running roller.
4.The structure of crushing system plus two pairs of roller granulating mechanisms employed in the extrusion, crushing and granulating system is a creation in the country which coordinates the feeding and discharging of materials and produces ideals grains. The system is enclosed in a sealed stainless steel housing to avoid flying dust in the operation room.
5.For the profiled non-equal-distance screw stem,nylon screw stem or stainless steel screw stem is provided depending on different material requirements.
6.Oil lubrication is used for bearings of principal axes instead of the commonly used grease lubrication and thus has enabled the machine to be filled with oil with out the necessity for assembly and disassembly.
7.The reasonable housing structure is convenient for a ssembly and disassembly as well as internal cleaning.Particularly it is suitable for granulating of raw materials that can not be granulated through damp method.
8.Being adapted advanced electric hydraulic pressure, its operation is simple and its automatic content is high.
9.Being adapted seal operation, no pollution, the quality of finished product meets the requirement of health.
10.Being adapted special mechanism to feed raw material, it guarantees raw material can be fed effectively.
Technical parameter:
| Model | LG25 | LG-50 | LG-100 |
| Roller size(mm) | Φ80×25 | Φ150×50 | Φ200×100 |
| Output(kg/h) | 1~5 | 10~40 | 30~100 |
| Roller speed(rpm) | 0~18 | 0~33 | 0~33 |
| Screw speed(rpm) | 0~61 | 0~76 | 0~64 |
| Granulating speed(rpm) | 0~600 | 0~377 | 0~268 |
| Fineness(mm) | 0.3~1.5 | 0.3~1.5 | 0.3~1.5 |
| Roller Pressure(MPa) | 0~7 | 0~7 | 0~7 |
| Total power(KW) | 2.63 | 5.62 | 11.15 |
| Dimension(mm) | 750×650×1350 | 1020×800×700 | 1500×1050×2050 |
| Weight(kg) | 200 | 1000 | 2500 |
Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually to ship LG100 Small pelletizing machine by sea way.
Nuoya Machinery Company is one famous group and apply itself to R&D,manufacture machinery for Pharmaceutical, Chemical, food and so etc fields.
Our Main Products are: Tablet press,Mixer,Crusher,Granulator,Dryer,Coater,Packing machine,Filling Machine,Miller and Pulverizer, Feeder,Oven, Deduster, Dust Collector, vibration sieves...
We also supply punch die sets and spare parts in standard or not.
