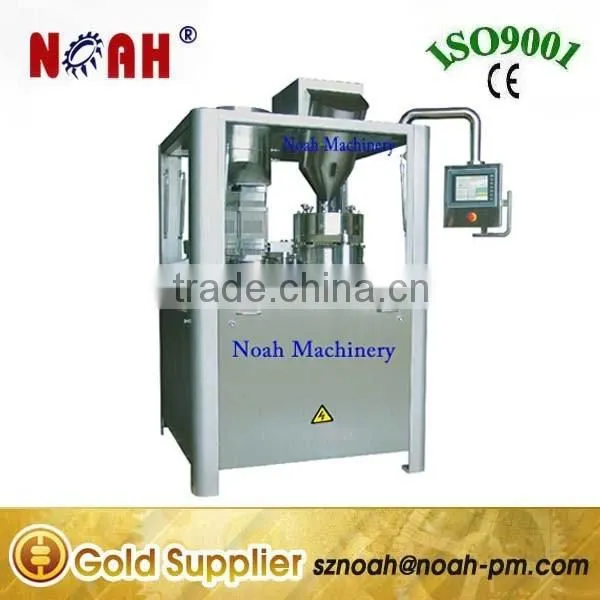

NJP-2500 Empty Caspuel Filling Machine for Pharmaceutical
l Application:
Pharmaceutical, medicine, and chemicals (powder, Pellet, granule, pill), also can be used to fill vitamin, foodstuff and animal drug, etc.
l This unit with many user-friendly features and technology such as:
. Touching-Screen, PLC program control panel with LCD.
. Capsule vacuum positioned mechanism to make the capsule qualified over 99%.
. Removable powder hopper for cleaning and easy auger adjustment easy to change fills weights.
. Easy speed selection and closed capsule length adjustment.
. Electrical Appliance control system approved to CE, and international standard.
. Quick and accurate change part set-up, easy to remove rotary table and ring carrier assembly.
. Fully enclosed dosing stations and rotating table for integration of the whole capsule filling plants.
. Large cam mechanism keeps the rotating table of mould together with the whole equipment running with balance, and completely guarantees the machine operating with highest precision and accuracy.

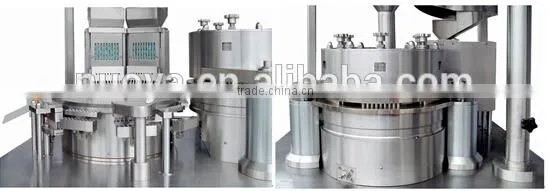

New Design of Fully Enclosed Rotating Table:
. With high efficiency, accuracy, and energy saving.
. Easier to clean, dismantle and re set-up the mould.
. The working station cam runs under the good lubricating condition, extends the operating life of change parts.
. Improved the inner design of Mould rotating table, Import 90 pcs beeline bearings for each machine from Japan directly, guaranteed the equipment precision and extended the life of machine.
l New Design of Fully Enclosed Dosage Station
. Easier to clean; keep the dosage in accuracy.
. Enlarge the size of dosage pan (Enlarge 3cm); Increase the powder flowing uniformity in the dosage pan, according to the international standard.
. Adopt three dimensional control elements; Take the undersurface plane of dosage as datum, so as to eliminate the natural transmutation of the dosage pan and copper saucer.
Technical Details:
Model No. |
NJP-2000 |
NJP-2500 |
NJP-3800 |
Capacity |
2000 capsules/min |
2500 capsules/min |
3800 capsules/min |
Suitable for Capsule |
00#, 0#, 1#, 2#, 3#, 4#,5# |
||
Total Power |
8Kw |
9.5KW |
11KW |
Overall Weight |
1100Kg |
1400Kg |
2400Kg |
Machine Dimension |
1100mm x 1300mm x 1800mm |
1100mm x 1300mm x 1800mm |
1440×1300×2080mm |
Accuracy |
+ 1% Depending upon the consistency, uniformity & bulk density of powder under the controlled level of humidity. |
||
Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually to ship NJP-2500 Empty Caspuel Filling Machine for Pharmaceutical by sea way
About us:Nuoya Machinery Company is one famous group and apply itself to R&D and manufacture machinery for Pharmaceutical, Chemical, food and so etc fields. The Main products are: Tablet press, Mixer, Crusher, Granulator, Dryer, Coater, Packing machine….we also can make punch die sets and spare parts in standard or not standard.
