Home > Products > Filling and packing machine > ZG12/200 Oral Liquid/Water Bottle Filling Machine

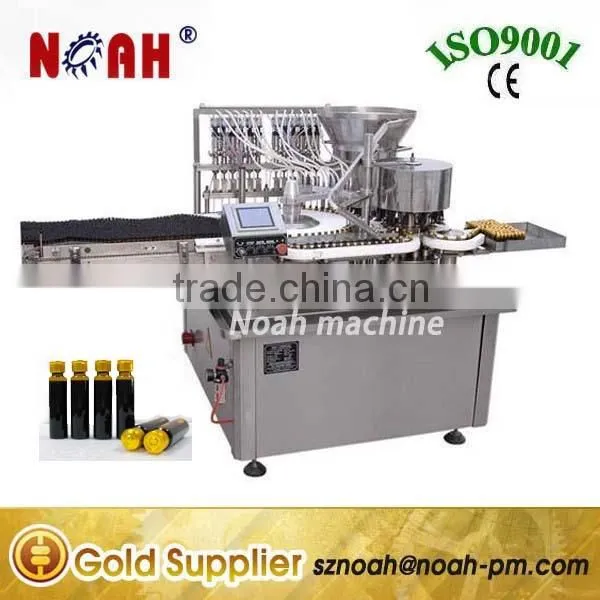

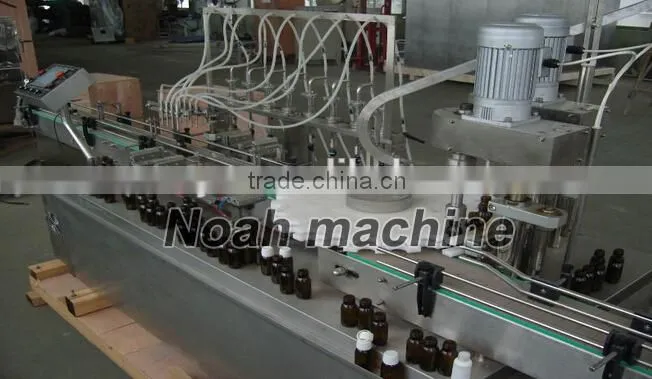

ZG12/200 Oral Liquid/Water Bottle Filling Machine
- Shanghai
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Application | Chemical, Food, Medical | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220v, 50Hz | Place of Origin | Guangdong, China | |
| Brand Name | NOAH | Model Number | ZG12/200 | |
| Dimension(L*W*H) | 2500*1000*1600mm | Weight | 1260kg | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
ZG12/200 Oral Liquid/Water Bottle Filling Machine
Applications:
The machine ZG12/200 Oral Liquid/Water Bottle Filling Machine is mechanical and electronic technical production of new generation researched &developed by several years in our company. The equipment is simple structure, position reasonable, overall slinky, produce steady, easy operation, washing convenient .Meet GMP technical require to do.
Characteristic:
1.SS316L piston pump fills high precision suitable for oral liquid and light liquid with viscosity.
2.This machine is compact design, streamline bottle conveying, more stable.
3.No bottle no fill function.
4.Auto frequency conversion adjusting speed.
5.Auto display and count.
6.Rolling sealer uses single flexible knife with 12 rolling heads, one machine can auto entry, filling, adding cap, and sealing smoothly.
7.One machine can auto entry, filling adding capper, and sealing.
8.The whole machine is designed according to the requirements of GMP.
Main Technical Specifications:
Applied bottle range | 10-25ml |
Power supply | 220v 50Hz |
Power consumed | 1.6kw |
Filling heads | 12 heads with piston pump (option stainless steel, glass, and ceramic type) |
Sealing heads | single flexible knife with 12 rolling heads sealer |
Tolerance of filling error | ≤±2% |
Breakage ratio | ≤0.5% |
Auto adding stopper ratio | ≥99.5% |
Single machine noise | ≤70dB |
Weight | 1260kg |
Overall dimension | L×W×H2500×1000×1600mm |
Production capacity | 2-5mL 15000-18000 bottle/h 7-10mL 8000-12000 bottle/h 10-25mL 7200-8000 bottle/h |
Our Company is one famous group and apply itself to R&D,manufacture machinery for Pharmaceutical,Chemical,food and so etc fields.
