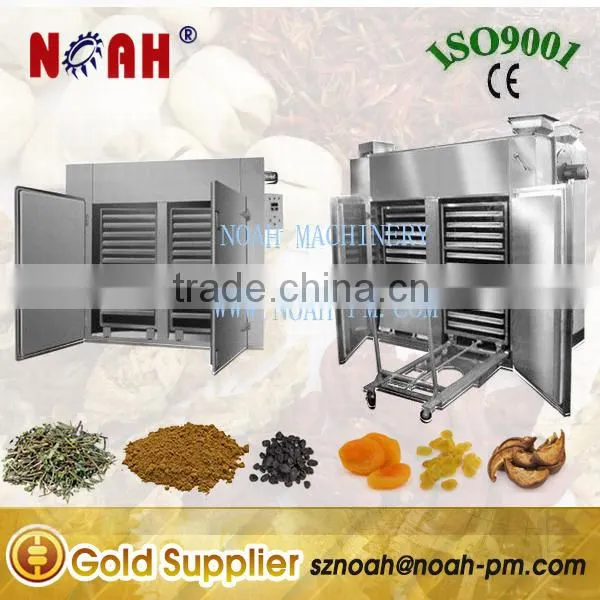

RXH Series Fruit Drying Machine/Food Oven
Applications:
Our machine, RXH Series Fruit Drying Machine/Food Oven is widely used in pharmaceutical food,chemical industry etc,which feature is baked and dehumidified to material.
Work principle:
Its work principle is that used steam or electric heating air, then made a cycling dry with heated air. There are even dry and lower discre-paney of temperature difference in the each side of even. In the dry course of suppling continuously flesh air and discharging hot air so that the even might be in good condition and kept proper temperature and humidity.
Range of application:
It is suitable for heating and solidification,drying and dehydration of raw materials in pharmaceutical industry, chemical industry, foodstuff industry, agricultural and sideline products, aquatic products, light industry, heavy industry and so on. The raw materials can be medicines of raw materials, Chinese traditional medicines, tablet of drink, immersed electuary, powder, granule, packing bottle, pigment, dyestuff, dehydration vegetable, dried fruit and melons, banger, plastic resin, electric elements, drying varnish snd so on.
Special Introductions:
1.The consumer may choice a lot of heat source,steam,electric etc.
2.Used temperature:50-150C with steam heated.
3.50-350C with electric and far-infrared heated.
4.Epuipped computer control system.
5.Steam pressure 0.02-0.8mpa(0.2-8kg/cm2).
6.Electric heated power 15KW,5-8Kw/h(l).
7.If you have special repuirement,please asked.
8.Used tempreature less 60` or higher 140` please mention it you place order.
9.Unified size of oven and plate,may be exchanged.
10.The size of oven plate is 460*640*50mm.
Main technical specification:
Dry quantity |
100kg/every time |
Power |
0.45 KW |
Used steam |
18kg/h |
Wind power |
3400stere/h |
Temperature difference |
-2 - +2 |
Oven plate |
48pcs |
Size (L*W*H) |
2300*1200*2300 mm |
Remarks:Double door Double dolly | |
Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually to ship RXH Series Fruit Drying Machine/Food Oven by sea way.
About us:
Nuoya Machinery Company is one famous group and apply itself to R&D and manufacture machinery for Pharmaceutical, Chemical, food and so etc fields. The Main products are: Tablet press, Mixer, Crusher, Granulator, Dryer, Coater, Packing machine….we also can make punch die sets and spare parts in standard or not standard.
