Tablets Gummer
Applications:

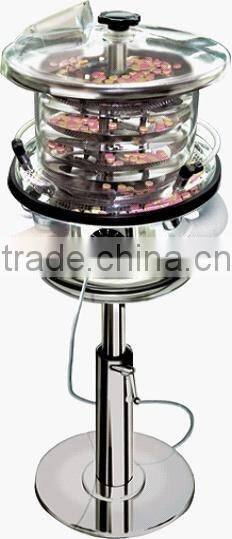

The machine,C&C 200A Tablets Gummer is widely used for dedusting all kinds of shaped tablets. All productive process can audio-visual and visible. There is powder quarantine device in the among of each storey sieve tray, thus achieving effective segregation between tablets and dust. The parts contacted with tablets in this machine are made of 316L stainless steel, can be mating used with all model tablet press.
Working Principle:

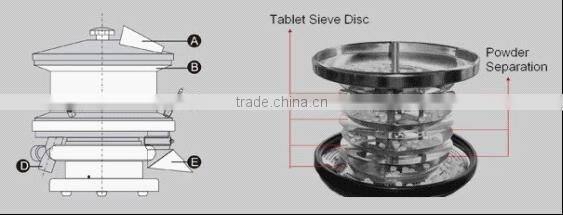

1. Tablets enter the inlet A. With the function of vibration the tablets move along the concave channel of filter disc B.
2. When tablets move down to the lower filter disc the tablets can turn upside down automatically.
3. During the process the tablets are polished. When the tablets move to the lowest disc the compressed air will blow away the dust which are sucked away by dust pipe D.
4. Finished clean tablets will be ejected from outlet E
Main technical data:
Model |
C&C200A |
Max Output Capacity (T/H) |
550000 (φ6mm Tablet) |
Max Tablet Diameter(mm) |
φ25 |
Power Supply |
1P 220/110V 50~60Hz |
Overall size(mm) |
φ350 Χ (H:770 ~ 950) |
Weight (Kg) |
38 |
Compressed Air |
0.1m3/min 0.05MPa |
Vacuum cleaning |
2.7m3/min -0.01MPa |
