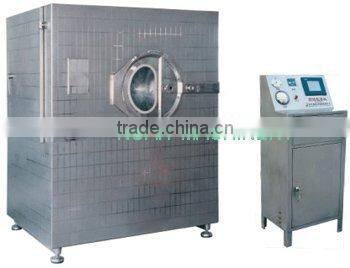

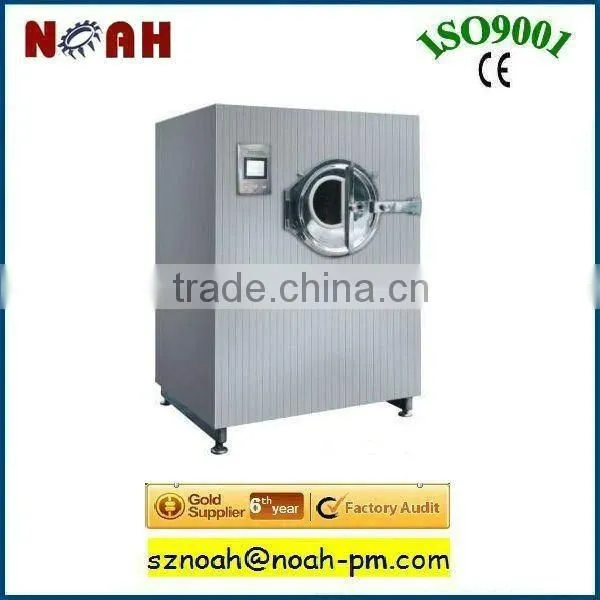

BG-150 Automatic chocolate wrapping machine

Specifications

BG-150 chocolate wrapping machine:
1.Film Coating Machine, chocolate wrapping machine.
2.GMP/CE Stainless steel Film Coater.

BG-150 Automatic chocolate wrapping machine



Applications:

The BG-150 Automatic chocolate wrapping machine is mainly used for tablet, pellet, and candy to carry out organic thin film coating, water soluble thin film coating, slow and control releasing coating, dropping pellet coating, sugar-coating and chocolate in pharmaceutical and foodstuff industry. It is electromechanical integration coating equipment and conforms to the requirement of GMP.

Peristaltic pump with constant pressure variable, eliminate reflux pipe:
1. Display with touch screen
2. Expanded PLC module, all parameters are set in control panel
3. Because of sound and heat insulation, it has temperature insulation effect to inside of machine
4. Operate at full seal and negative pressure state
5. Nozzle (from Japan)-uniform atomizing, big area of atomizing, adjustable direction,the sprayer has no dropping leakage and block
6. Promote material to stir aslant and writhe. The exchanging frequency is frequent.Therefore it can raise the rate of finished product

Main technical specifications:

Item	BG-150
Capacity (kg/time)	150
Speed of drum (rpm)	3-15
Power of main motor (kW)	2.2
Power of motor for high efficiency filtering hot air (kW)	1.5
Power of motor for dust removing and air exhaust (kW)	5.5
Overall size of main machine (mm)	1,430 x 1,250 x 2,060
Overall size of high efficiency filtering hot air machine (mm)	900 x 1,000 x 2,300
Overall size of dust removing and air exhaust fan (mm)	920 x 910 x 2,090
Weight of main machine (kg)	1,200
Weight of high efficiency filtering hot air fan (kg)	300
Weight of dust removing and air exhaust fan (kg)	400
